Banjo
300PO (B)
300PO (B)
Regular price
$458.30 USD
Regular price
$763.83 USD
Sale price
$458.30 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

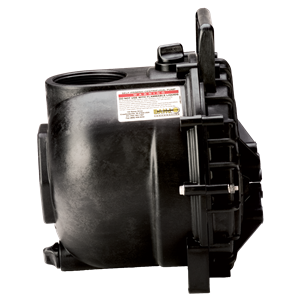

The 300PO is a Banjo self-priming centrifugal pump — polypropylene, 4 vane impeller, rated at 3" poly pump only with 3/4" shaft and 4 vane impeller.
Specifications
| Product title | 3" Poly Pump Only With 3/4" Shaft & 4 Vane Impeller |
|---|---|
| Type | Polypropylene Pumps |
| Style | Pump Only |
| Size | 3" |
| Shaft | 3/4" shaft |
| Impeller | 4 Vane Impeller |
| Drive | Pump only - no engine or motor |
| Weight | 12.005 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12703A | Poly pump rear bracket | 1 |
| 2 | 12705 | Pump checkvalve, EPDM | 1 |
| 3 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 4 | 12716 | Pump slinger | 1 |
| 5 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 6 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 7 | 12720 | 1/4-20 x 2-1/2" SL IND HWHS | 10 |
| 8 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 10 | 12754 | O-ring segment | 1 |
| 11 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 12 | 12775A | 7/16-14 hex nut | 1 |
| 13 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 14 | 12901 | 5/16" flat washer | 4 |
| 15 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 17 | 13702 | 3" poly pump volute | 1 |
| 18-2 | 13777 | 3/4" drain plug | 2 |
| 18-3 | 13778 | AS568A-119 o-ring, EPDM, black | 2 |
| 19 | 13771 | 3" poly pump trimmed impeller | 1 |
| 20 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
| 22 | V07018 | 1/4" lockwasher | 10 |
| 23 | V07019 | 1/4-20 hex nut | 10 |
Parts and specifications per the Banjo Corporation parts drawing for the 300PO.
