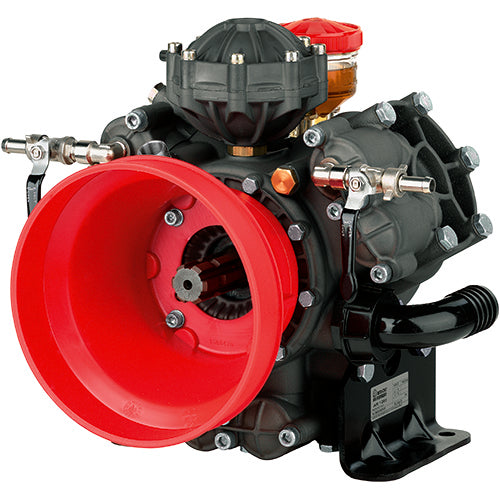

The Annovi Reverberi AR1053-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. It features a splined through 1-3/8" shaft, delivers up to 27.1 GPM at 725 PSI maximum pressure, and utilizes anodized aluminum construction for durability in harsh environments.
Specifications
| Flow (GPM) | 27.1 |
|---|---|
| Flow (l/min) | 102.4 |
| Pressure (PSI) | 725 |
| Pressure (bar) | 50 |
| Speed (RPM) | 550 |
| Inlet | 1-1/2" |
| Outlet | 3/4" NPT |
| Shaft Type | Splined, Through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Anodized Aluminum |
| Max water temp | 140° F |
| Weight | 75 lbs |
| Pump Type | Diaphragm Pumps |
| HP | 12.1 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43309 | BlueFlex | Diaphragm Kits |
| AR43307 | Desmopan | Diaphragm Kits |
| AR43306 | NBR | Diaphragm Kits |
| AR43308 | Viton | Diaphragm Kits |
| AR42200 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR42201 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
