AR
AR120LFP-AP-SP/C
AR120LFP-AP-SP/C
Couldn't load pickup availability

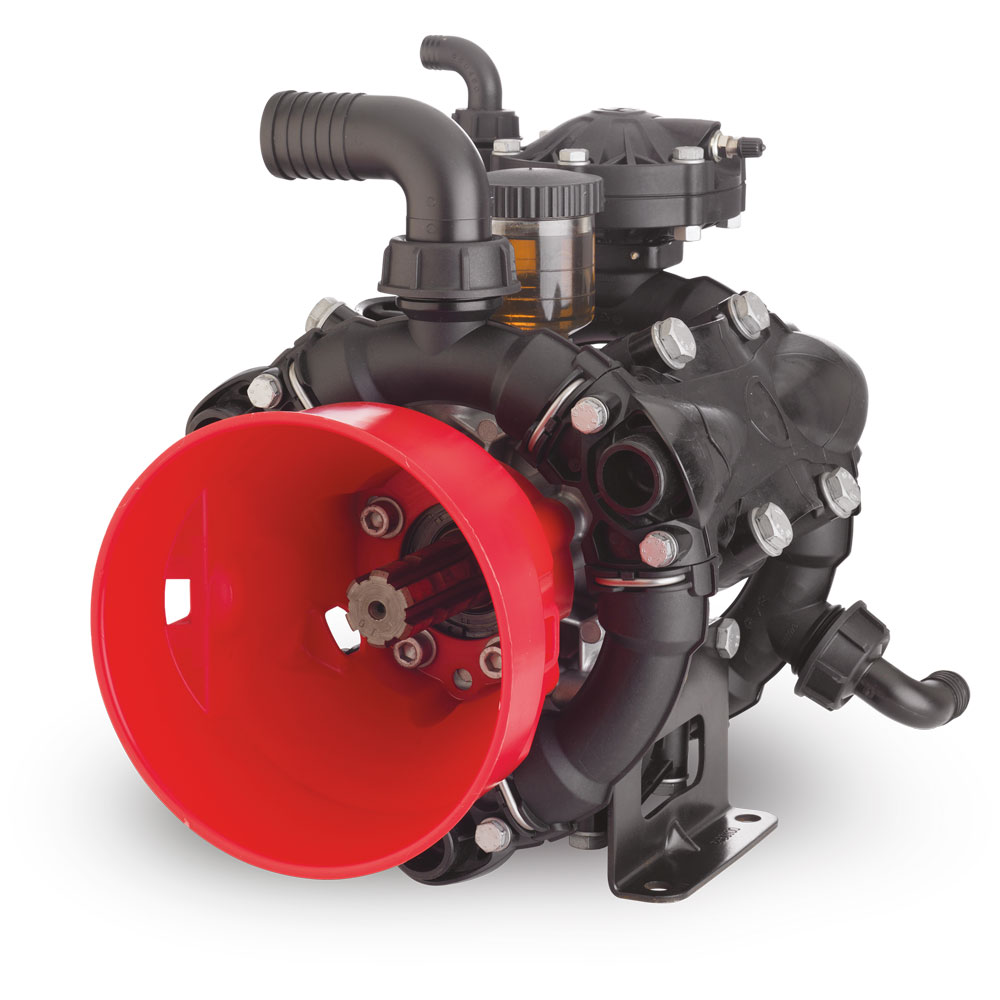

The Annovi Reverberi AR120LFP-AP-SP/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline shaft and flange connection, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 30.8 GPM and a maximum pressure of 220 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like polypropylene for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR120LFP-AP-SP/C agriculture pump.
Specifications
| Flow (GPM) | 30.8 |
|---|---|
| Flow (l/min) | 116.7 |
| Pressure (PSI) | 220 |
| Pressure (bar) | 15, 220 |
| Speed (RPM) | 550 |
| Shaft Type | 6 Spline |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Polypropylene |
| Max water temp | 140° F |
| Weight | 37 lbs |
| Series | LFP (Liquid Fertilizer Pesticide) |
| Pump Type | Diaphragm Pumps |
| Length (in) | 13.46 |
| Width (in) | 19.55 |
| Height (in) | 14.52 |
| Max Hp | 4.5 |
| Outlet (in) | 1 |
| Inlet (in) | 1-1/2" |
| O-Ring | viton |
| HP | 4.5 |
| Market | Agriculture |
| Pressure Type | Low-Pressure |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43255 | BlueFlex | Diaphragm Kits |
| AR43253 | Desmopan | Diaphragm Kits |
| AR43252 | NBR | Diaphragm Kits |
| AR43254 | Viton | Diaphragm Kits |
| AR43138 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR43139 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
