AR45LFP-SP
AR45LFP-SP
Couldn't load pickup availability

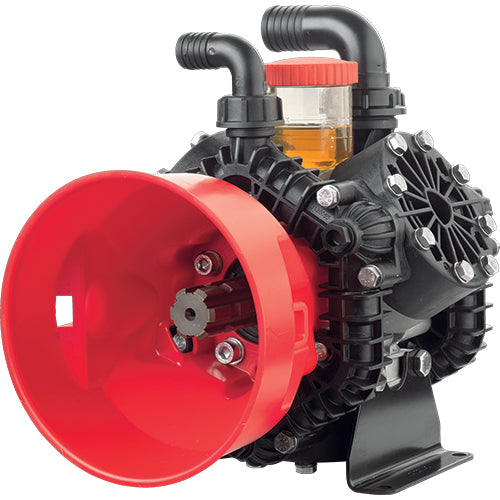

The Annovi Reverberi AR45LFP-sp is a semi-hydraulic, low-pressure, three-diaphragm pump designed to meet the rigorous demands of the agricultural industry. Featuring a straight shaft measuring 3/4" in diameter, it connects seamlessly to your power source. This pump delivers an impressive flow rate of up to 11.4 GPM and a maximum pressure of 290 PSI, ensuring efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Constructed with durable materials such as a polypropylene pump head and Viton o-rings, it offers longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 11.4 |
|---|---|
| Flow (l/min) | 43.3 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20 |
| Speed (RPM) | 550 |
| Power (HP) | 2.1 |
| Shaft Type | straight |
| Shaft Diameter | 3/4" |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Polypropylene |
| Max water temp | 140° F |
| Weight | 28 lbs |
| Series | LFP, Liquid Fertilizer Pesticide |
| Pump Type | Diaphram Pumps |
| Length (in) | 10.7 |
| Width (in) | 13.25 |
| Height (in) | 13.07 |
| Weight (lbs) | 28 |
| Outlet (in) | 1 |
| Inlet (in) | 1-1/4" |
| O-Ring | viton |
| Version | SP |
| # of Diaphrams | Three |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43239 | BlueFlex | Diaphragm Kits |
| AR43237 | Desmopan | Diaphragm Kits |
| AR43236 | NBR | Diaphragm Kits |
| AR43238 | Viton | Diaphragm Kits |
| AR42816 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR43081 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
