AR50-GR3/4-GCI
AR50-GR3/4-GCI
Couldn't load pickup availability

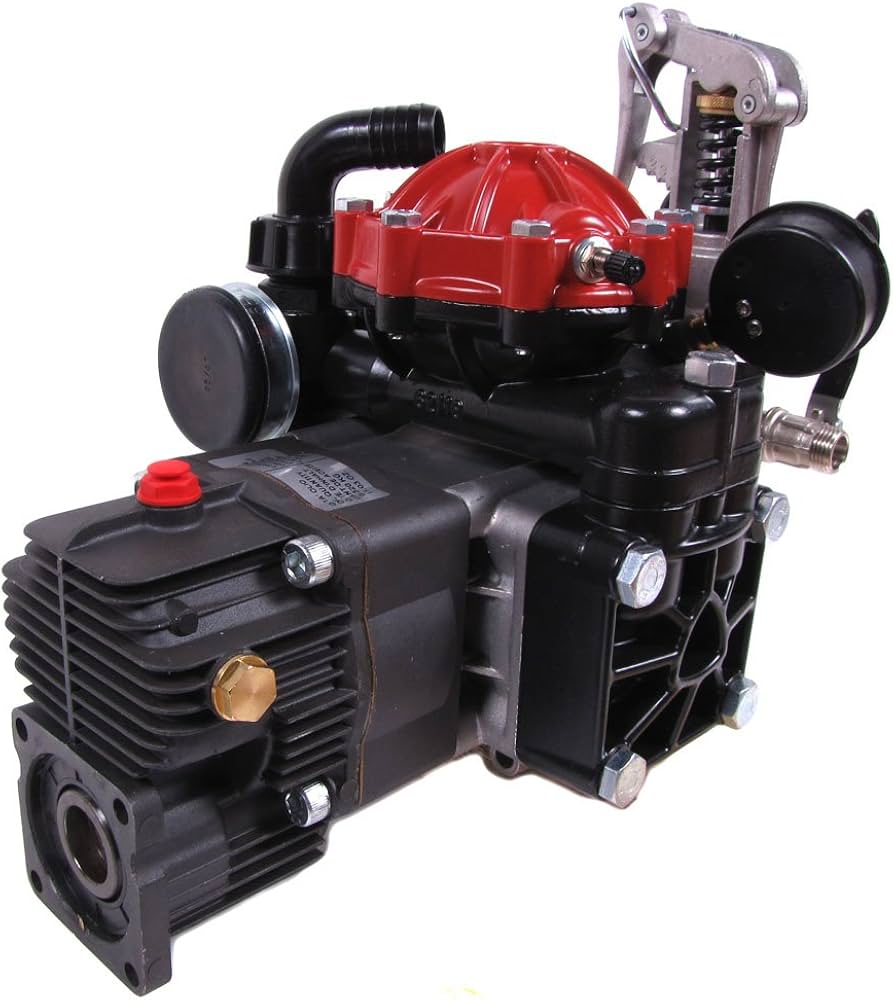

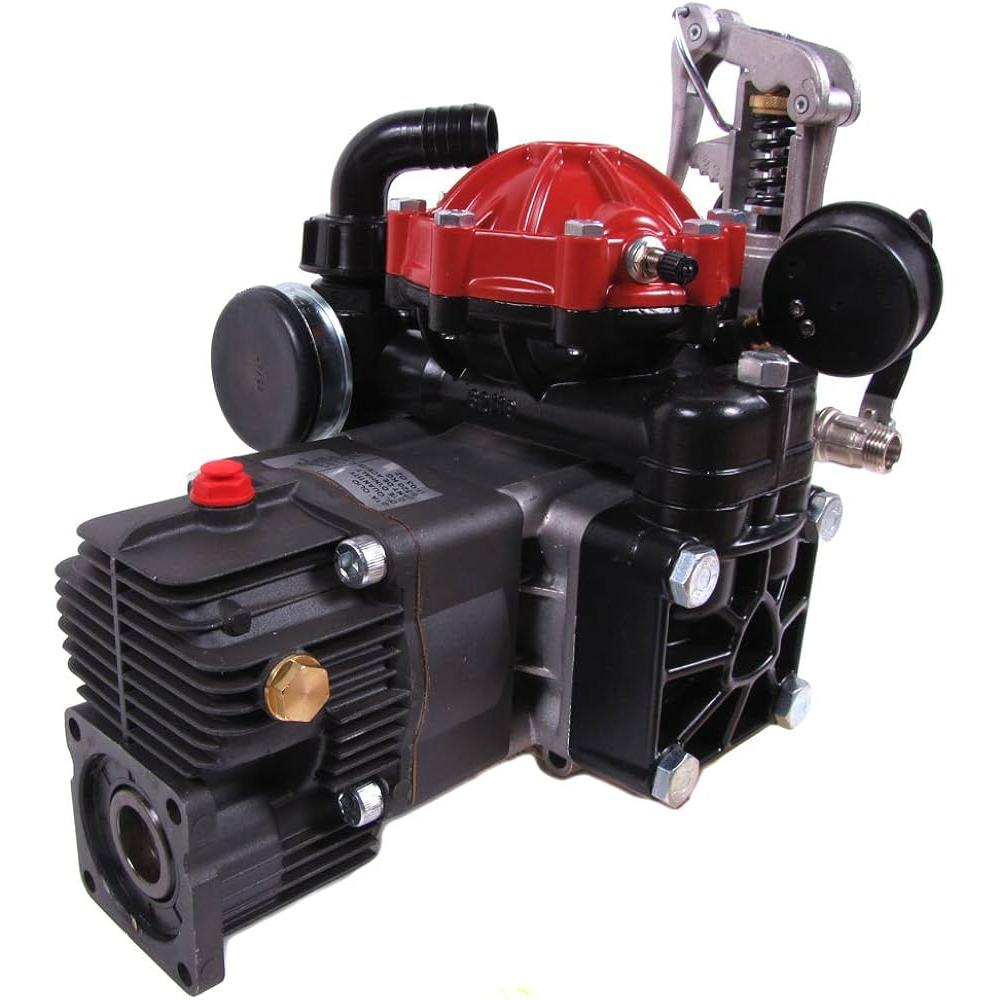

The Annovi Reverberi AR50-GR3/4-GCI Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Hollow, 1" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 14.8 GPM and a maximum pressure of 580 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like plastic-coated aluminum for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR50-GR3/4-GCI agriculture pump.
Specifications
| Flow (GPM) | 14.8 |
|---|---|
| Flow (l/min) | 65.8 |
| Pressure (PSI) | 580 |
| Pressure (bar) | 40 |
| Speed (RPM) | 550 |
| Power (HP) | 5.2 |
| Shaft Type | Hollow |
| Shaft Diameter | 1" |
| Diaphragm Count | 2 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 48 lbs |
| Series | Plastic-Coated Aluminum, PCA |
| Pump Type | Diaphragm Pumps |
| Length (in) | 11.33 |
| Width (in) | 11.88 |
| Height (in) | 13.46 |
| Outlet (in) | 1/2" NPT |
| Inlet (in) | 1-1/4" |
| Drive | gas engine |
| O-Ring | buna |
| Version | GR3/4-GCI |
| Control Unit | GIC40 |
| Control Unit SKU | GIC40 |
| Gear Box | AR1639 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43293 | BlueFlex | Diaphragm Kits |
| AR43291 | Desmopan | Diaphragm Kits |
| AR43290 | Buna | Diaphragm Kits |
| AR1920 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR1919 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
