AR
AR503-SP
AR503-SP
Couldn't load pickup availability

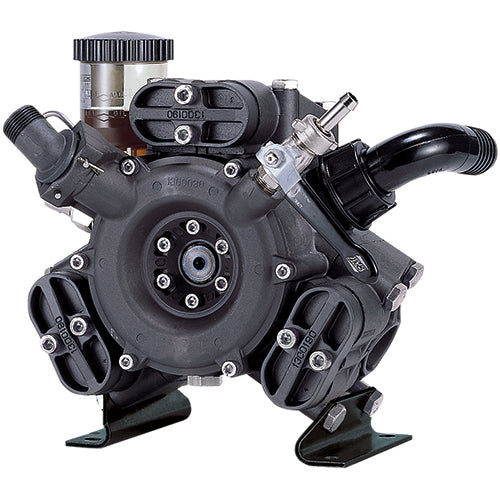

The Annovi Reverberi AR503-SP Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. Connect this pump directly to your power source seamlessly with its built in flange. Delivering an impressive flow rate of up to 14.3 GPM and a maximum pressure of 580 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like anodized aluminum for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR503-SP agriculture pump.
Specifications
| Flow (GPM) | 14.3 |
|---|---|
| Flow (l/min) | 54.1 |
| Pressure (PSI) | 580 |
| Pressure (bar) | 40 |
| Speed (RPM) | 550 |
| Power (HP) | 5.6 |
| Shaft Type | Flanged |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Anodized Aluminum |
| Max water temp | 140° F |
| Weight | 28 lbs |
| Series | AA, Anodized Aluminum, Anodized Aluminum |
| Pump Type | Diaphram Pumps |
| Length (in) | 9.09 |
| Width (in) | 10.82 |
| Height (in) | 12.32 |
| Outlet (in) | 3/4" NPT |
| Inlet (in) | 1-1/4" |
| O-Ring | buna |
| # of Diaphrams | Three |
| Market | Agriculture |
| Version | SP |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43297 | BlueFlex | Diaphragm Kits |
| AR43295 | Desmopan | Diaphragm Kits |
| AR43294 | NBR | Diaphragm Kits |
| AR1987 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR1984 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
