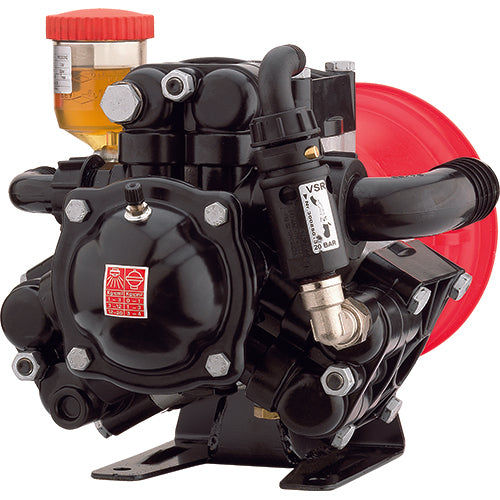

AR115BP-SP — 31702 Diameter. Pump: low pressure
AR115BP-SP — 31702 Diameter. Pump: low pressure
Regular price
$1,679.39 USD
Regular price
$2,239.19 USD
Sale price
$1,679.39 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “AR115BP-SP — 31702 Diameter. Pump: low pressure” — fitment, alternatives, or what else you need
The AR115BP-SP is a robust low-pressure diaphragm pump designed specifically for agricultural applications requiring high volume and reliable performance. The pump offers 28.5 GPM maximum flow and 290 PSI pressure rating, featuring three BlueFlex diaphragms, plastic-coated aluminum construction, and compatibility with both spline and straight shaft types.
Specifications
| Flow (GPM) | 28.5 |
|---|---|
| Flow (l/min) | 107.9 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20 |
| Speed (RPM) | 550 |
| Power (HP) | 5.5 |
| Inlet | 1-1/2" |
| Outlet | 1" |
| Shaft Type | Spline or Straight |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| O-Ring Material | Buna |
| Head Material | Plastic-Coated Aluminum |
| Weight | 37 lbs |
| Max Temperature | 140° F |
| Shaft Size | Kit Needed |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43251 | BlueFlex | Diaphragm Kits |
| AR43249 | Desmopan | Diaphragm Kits |
| AR43248 | NBR | Diaphragm Kits |
| AR2370 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2026 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
