AR43251 — Kit: BlueFlex Diaphragm. AR115bp, AR135bp
AR43251 — Kit: BlueFlex Diaphragm. AR115bp, AR135bp
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Genuine A.R. (Annovi Reverberi) diaphragm kit — BlueFlex material, part no. AR43251.

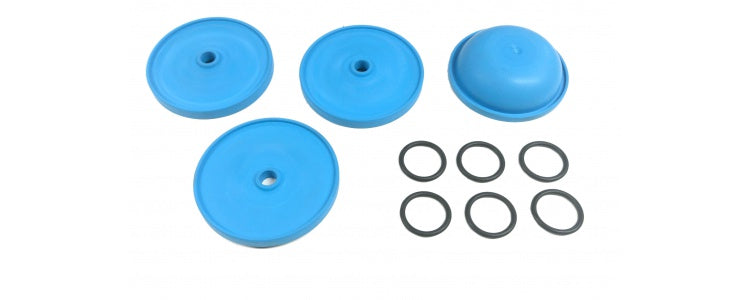

What’s in the Kit
| Qty | Part | Description |
|---|---|---|
| 3 | 550081 | Diaphragm (BlueFlex™) |
| 6 | 320030 | O-ring Ø 31.5x4.5 (90Sh) |
| 1 | 550194 | Diaphragm air chamber (Blueflex™) |
Use this kit when a diaphragm has failed: milky oil or spray mix in the crankcase, oil in the spray tank, or a sudden loss of pressure. After a diaphragm failure, flush the crankcase and refill with fresh AR64532D oil (32 oz).
Diaphragm material: BlueFlex is what most current AR ag pumps ship with. Match the material already in your pump, or the one your chemical label calls for. Other materials for the AR115BP / AR135BP: Buna (NBR): AR43248 · Desmopan: AR43249.
Full rebuild for the AR115BP / AR135BP: AR2370 valves, AR2026 O-rings.
Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Details
| Part number | AR43251 |
|---|---|
| Type | Diaphragm Kit |
| Material | BlueFlex |
Fits
AR115BP, AR135BP series pumps.
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
