AR135BP-GR1
AR135BP-GR1
Couldn't load pickup availability

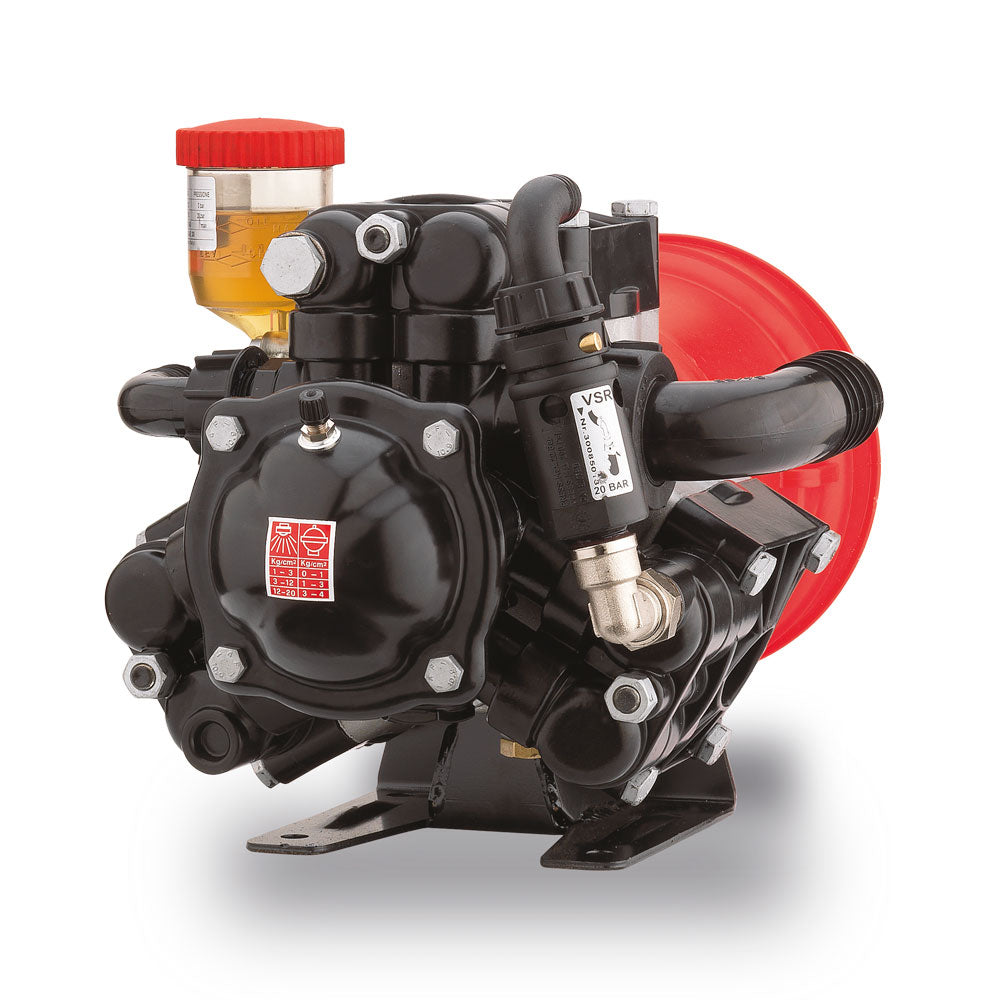

The Annovi Reverberi AR135BP-GR1 Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Hollow 1" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 33.8 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like plastic-coated aluminum for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 33.8 |
|---|---|
| Flow (l/min) | 128 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Power (HP) | 6.8 |
| Inlet | 1-1/2" |
| Outlet | 1" |
| Shaft Type | Hollow |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| O-Ring Material | Buna |
| Head Material | Plastic-Coated Aluminum |
| Weight | 45 lbs |
| Pump Type | Diaphragm |
| Drive | Gas engine |
| Max Temperature | 140° F |
| Pressure Type | Low-Pressure |
| Market | Agriculture |
| Version | GR1 |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43251 | BlueFlex | Diaphragm Kits |
| AR43249 | Desmopan | Diaphragm Kits |
| AR43248 | NBR | Diaphragm Kits |
| AR2370 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2026 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
