AR
AR135BP-SP
AR135BP-SP
Couldn't load pickup availability

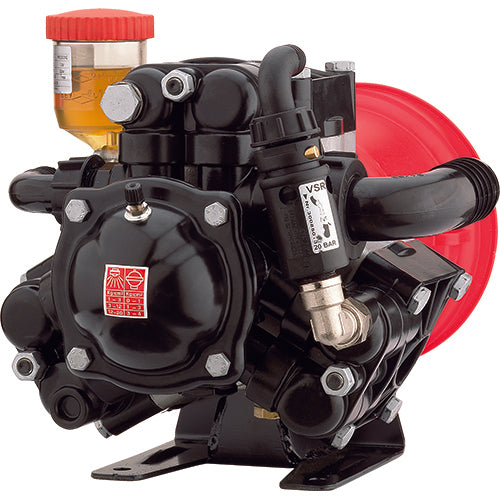

The Annovi Reverberi AR135BP-SP Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Straight shaft type and flange connection, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 33.8 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like plastic-coated aluminum for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR135BP-SP agriculture pump.
Specifications
| Flow (GPM) | 33.8 |
|---|---|
| Flow (l/min) | 128 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Shaft Type | Straight |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 37 lbs |
| Pump Type | Diaphram Pumps |
| Length (in) | 9.13 |
| Width (in) | 10.98 |
| Height (in) | 13.18 |
| Max Hp | 6.8 |
| Outlet (in) | 1 |
| Inlet (in) | 1-1/2" |
| O-Ring | buna |
| HP | 6.8 |
| Version | SP |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43251 | BlueFlex | Diaphragm Kits |
| AR43249 | Desmopan | Diaphragm Kits |
| AR43248 | NBR | Diaphragm Kits |
| AR2370 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2026 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
