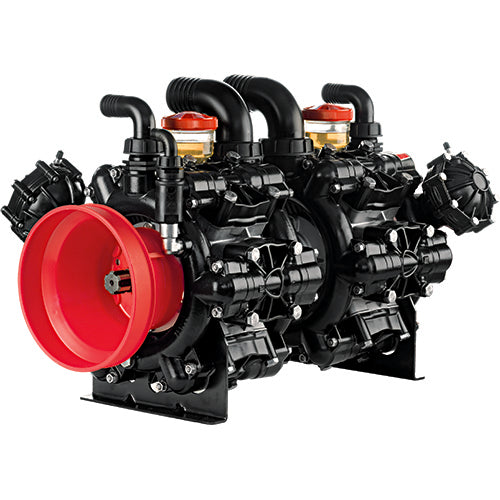

AR560BPTWINTOP-C/C
AR560BPTWINTOP-C/C
Couldn't load pickup availability
The Annovi Reverberi AR560BPTWINTOP-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline, 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 143.5 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a plastic-coated aluminum pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 143.5 |
|---|---|
| Flow (l/min) | 543.2 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Power (HP) | 26.6 |
| Shaft Type | 6 Spline |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 12 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 165.3 lbs |
| Pump Type | Diaphragm Pumps |
| Outlet (in) | 1 |
| Inlet (in) | 2x2-1/2" |
| O-Ring | Buna |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43271 | BlueFlex | Diaphragm Kits |
| AR43269 | Desmopan | Diaphragm Kits |
| AR43268 | NBR | Diaphragm Kits |
| AR43270 | Viton | Diaphragm Kits |
| AR2114 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR42513 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
