AR70BP-C — 31697 Diameter. Pump: low pressure
AR70BP-C — 31697 Diameter. Pump: low pressure
Regular price
$1,170.92 USD
Regular price
$1,561.22 USD
Sale price
$1,170.92 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “AR70BP-C — 31697 Diameter. Pump: low pressure” — fitment, alternatives, or what else you need

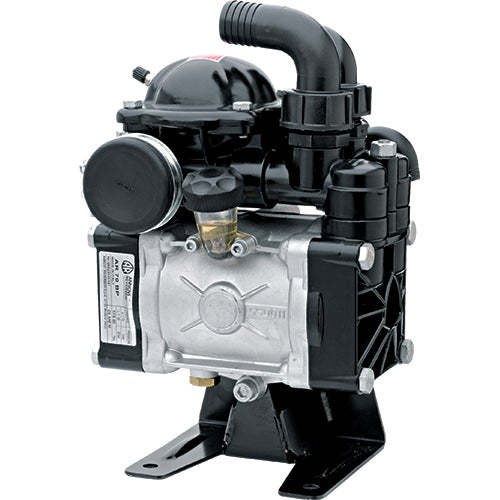

The AR70BP-C is an Annovi Reverberi low pressure pump — semi-hydraulic two-diaphragm pump, rated at 19.6 GPM and 290 PSI at 550 RPM.
Specifications
| Flow | 19.6 GPM (74.1 l/min) |
|---|---|
| Pressure | 290 PSI (20 bar) |
| Speed | 550 RPM |
| Power required | 3.4 HP |
| Weight | 27 lbs |
| Max Water Temp | 140° F |
| Inlet | 1-1/4" |
| Outlet | 1" |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43243 | BlueFlex | Diaphragm Kits |
| AR43241 | Desmopan | Diaphragm Kits |
| AR43240 | NBR | Diaphragm Kits |
| AR2364 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2365 | O-Rings | O-Ring Kits |
Specifications from the A.R. North America 2024 Agriculture Product Catalog.
