AR
AR70BP-SP
AR70BP-SP
Couldn't load pickup availability

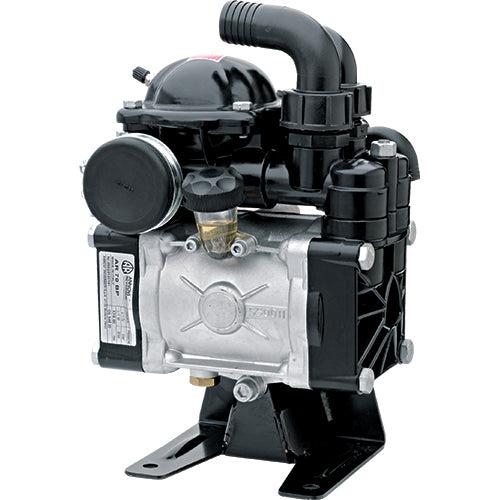

The Annovi Reverberi AR70BP-SP Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its straight, 3/4" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 19.6 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a polypropylene pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR70BP-SP agriculture pump.
Specifications
| Flow (GPM) | 19.6 |
|---|---|
| Flow (l/min) | 74.1 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Shaft Type | Straight |
| Shaft Diameter | 3/4" |
| Diaphragm Count | 2 |
| Diaphragm Material | Blue-Flex |
| Head Material | Polypropylene |
| Max water temp | 140° F |
| Weight | 28 lbs |
| Series | LFP, Liquid Fertilizer Pesticide |
| Pump Type | Diaphram Pumps |
| Length (in) | 9.13 |
| Width (in) | 10.98 |
| Height (in) | 13.18 |
| Max Hp | 3.4 |
| Weight (lbs) | 28 |
| Outlet (in) | 1 |
| Inlet (in) | 1-1/4" |
| O-Ring | viton |
| HP | 3.4 |
| Version | SP |
| # of Diaphrams | Two |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43243 | BlueFlex | Diaphragm Kits |
| AR43241 | Desmopan | Diaphragm Kits |
| AR43240 | NBR | Diaphragm Kits |
| AR2364 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2365 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
