AR80LFP-AP-C/C
AR80LFP-AP-C/C
Couldn't load pickup availability

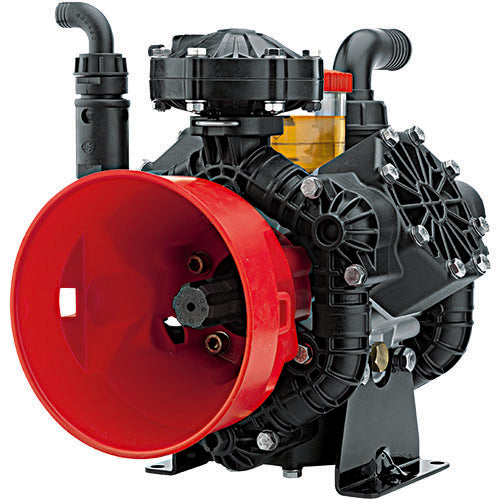

The Annovi Reverberi AR80LFP-AP-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline, through shaft measuring 1-3/8" in diameter, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 20.2 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a polypropylene pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 20.2 |
|---|---|
| Flow (l/min) | 76.4 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20 |
| Speed (RPM) | 550 |
| Power (HP) | 3.4 |
| Inlet | 1-1/2" |
| Outlet | 1 in |
| Shaft Type | 6 Spline, Through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Polypropylene |
| Max water temp | 140° F |
| Weight | 40 lbs |
| Series | LFP (Liquid Fertilizer Pesticide) |
| Pump Type | Diaphragm Pumps |
| O-Ring | Viton |
| Version | AP-C/C |
| Control Unit | Mounted_Control_unit (GS25) |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43247 | BlueFlex | Diaphragm Kits |
| AR43245 | Desmopan | Diaphragm Kits |
| AR43244 | NBR | Diaphragm Kits |
| AR43246 | Viton | Diaphragm Kits |
| AR43138 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR43128 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
