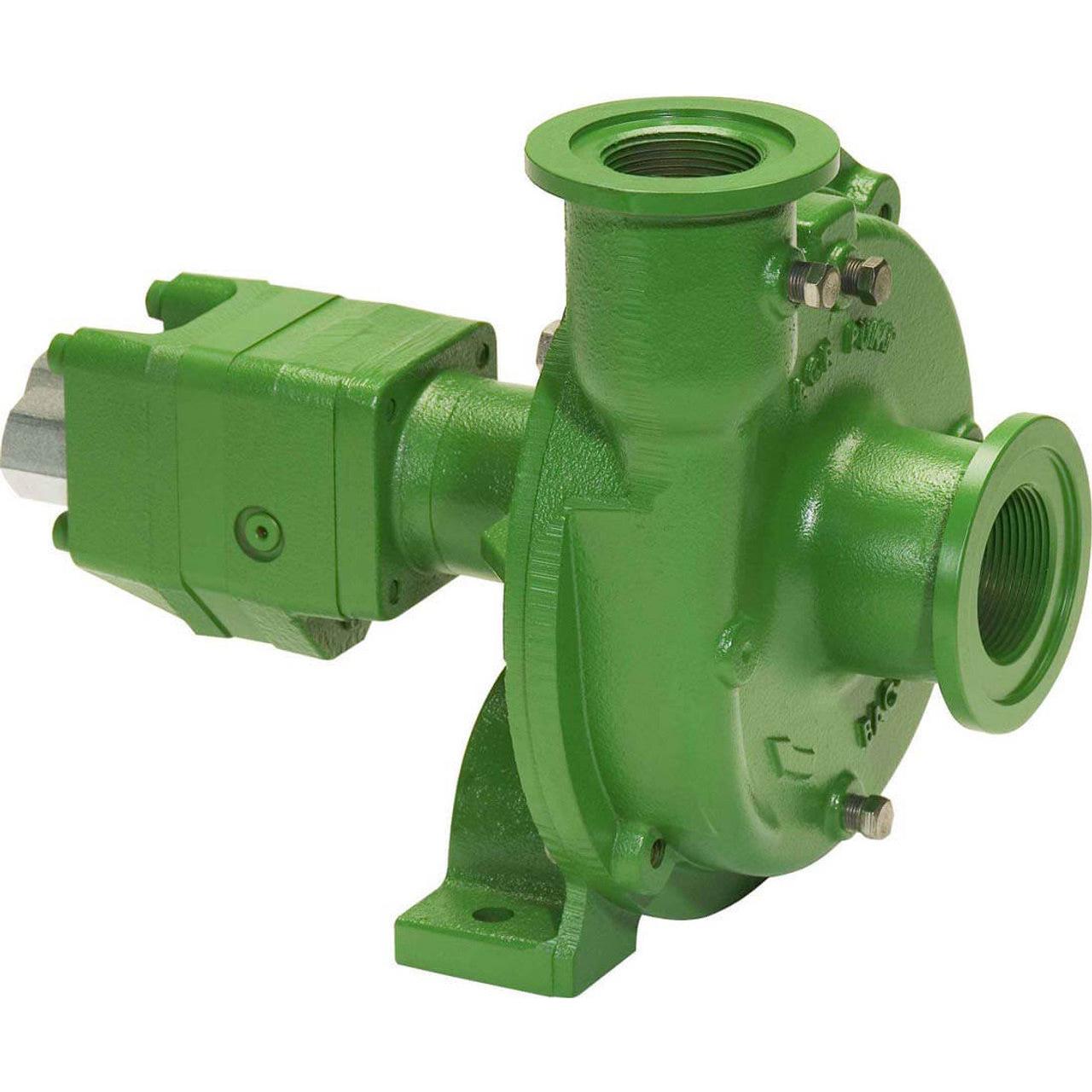

• Green hydraulic centrifugal pump with a cast iron housing and dual threaded ports for industrial fluid transfer.
1 1

Ace Pumps

FMC-150F-HYD-206

FMC-150F-HYD-206

$1,091.40 USD
$1,819.00 USD $1,091.40 USD
Sale
Shipping calculated at checkout.
Title

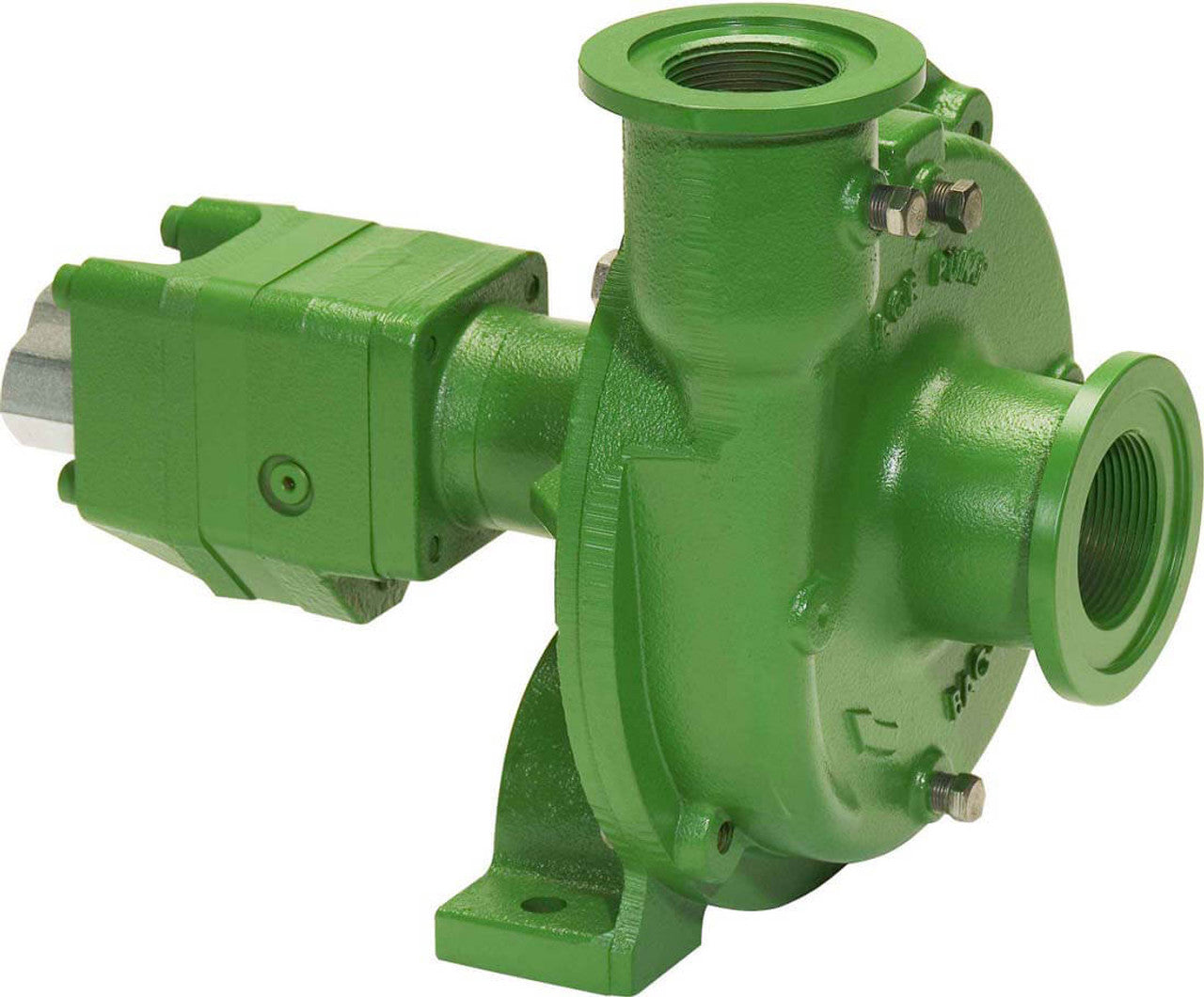

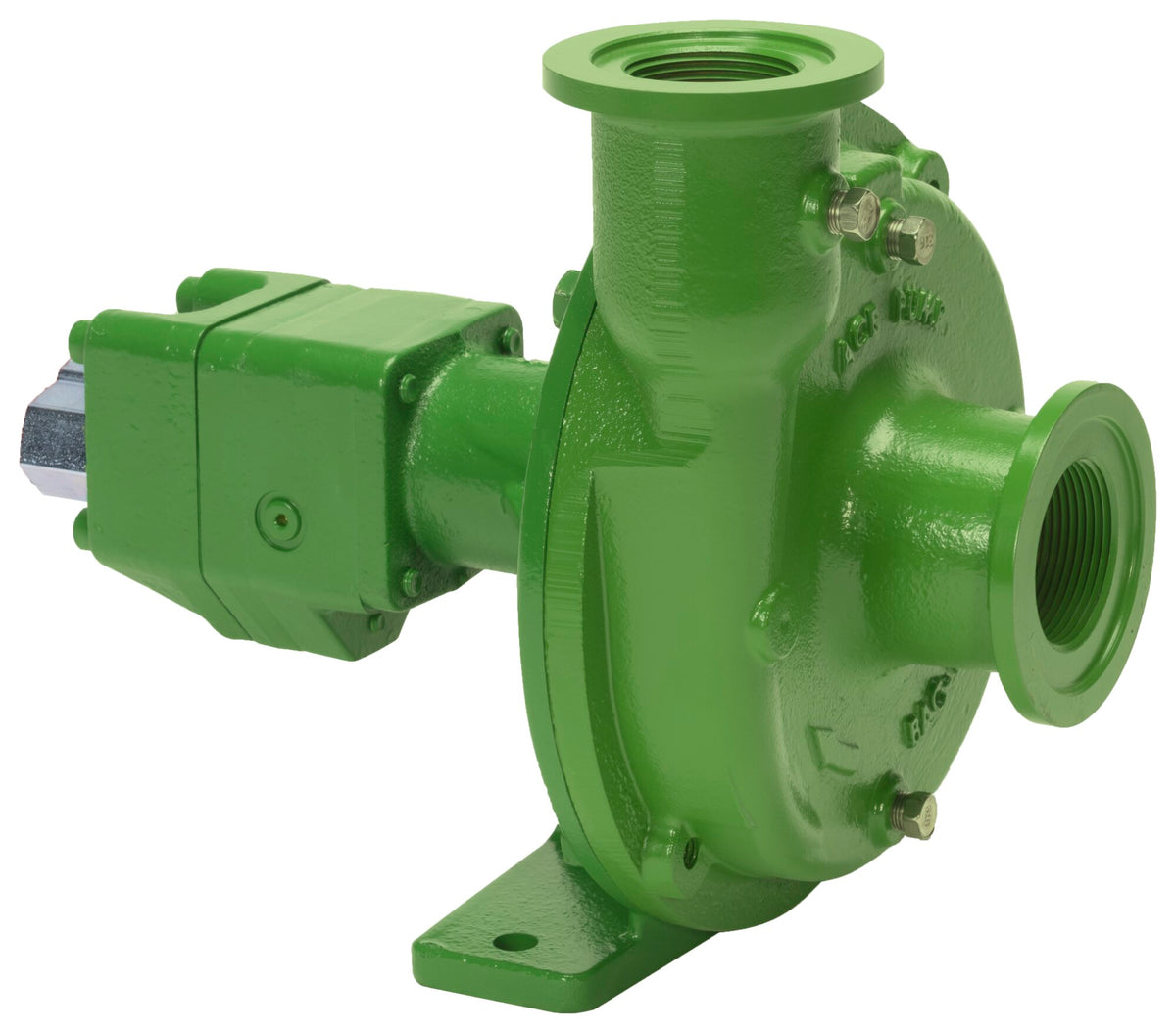

The FMC-150F-HYD-206 is a Ace hydraulic motor driven centrifugal pump — cast iron volute with flanged and NPT ports, rated at 120 psi maximum shutoff.

Specifications

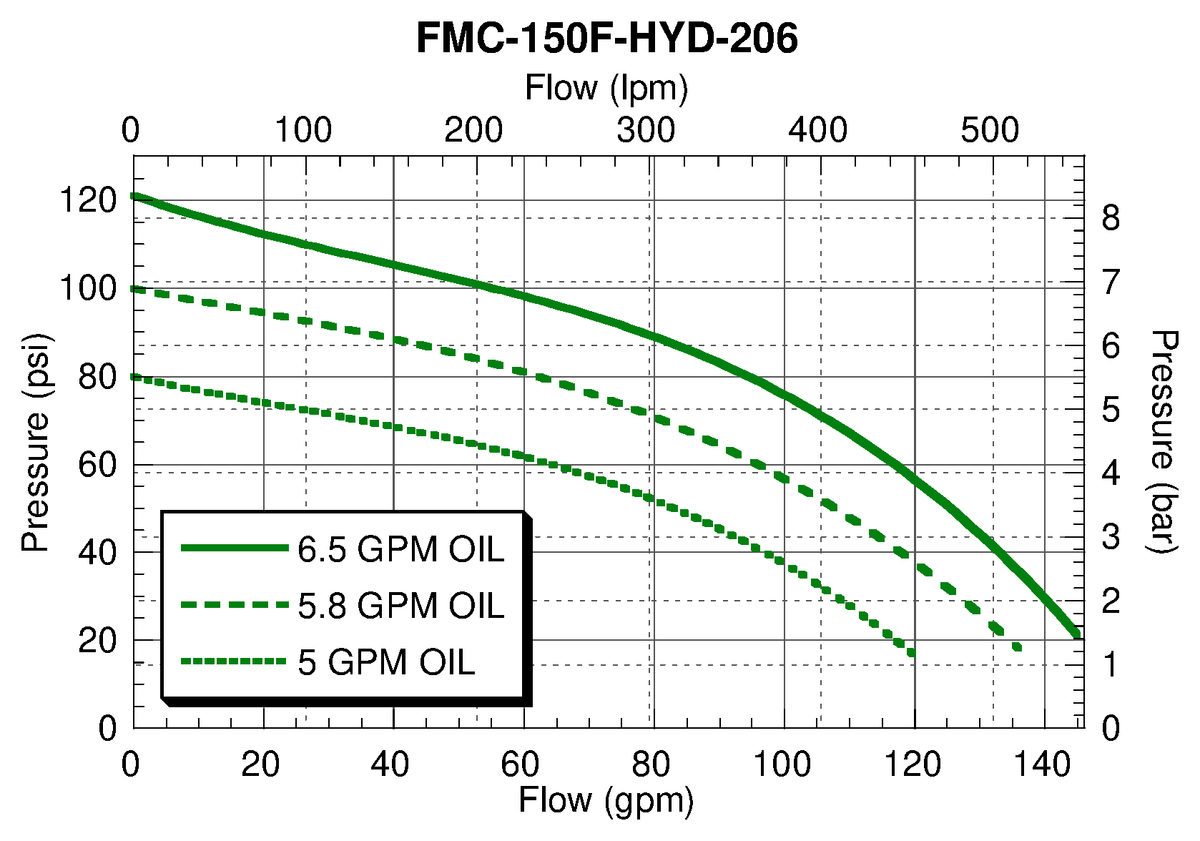

Max shutoff pressure 120 psi

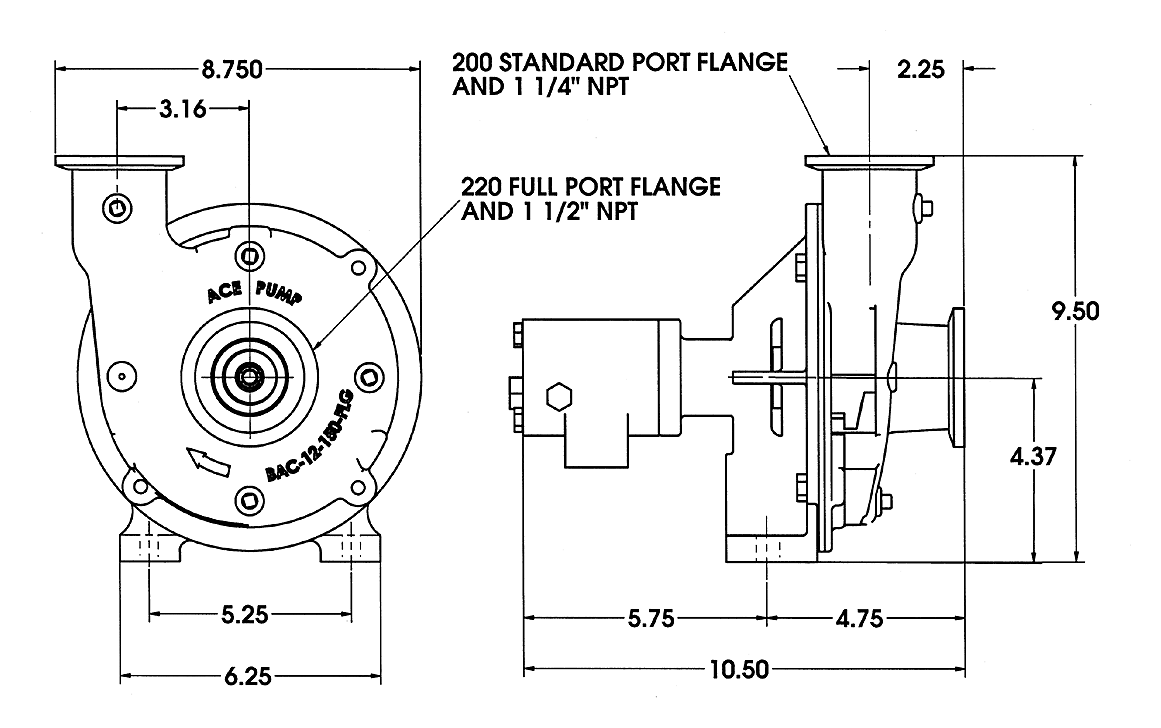

Suction 220 flange & 1-1/2" NPT
Discharge 200 flange & 1-1/4" NPT
Hydraulic motor 7 GPM, 200 series
Volute Cast iron
Impeller Valox (standard); cast iron or polypropylene optional
Seal Viton carbon/ceramic (standard)

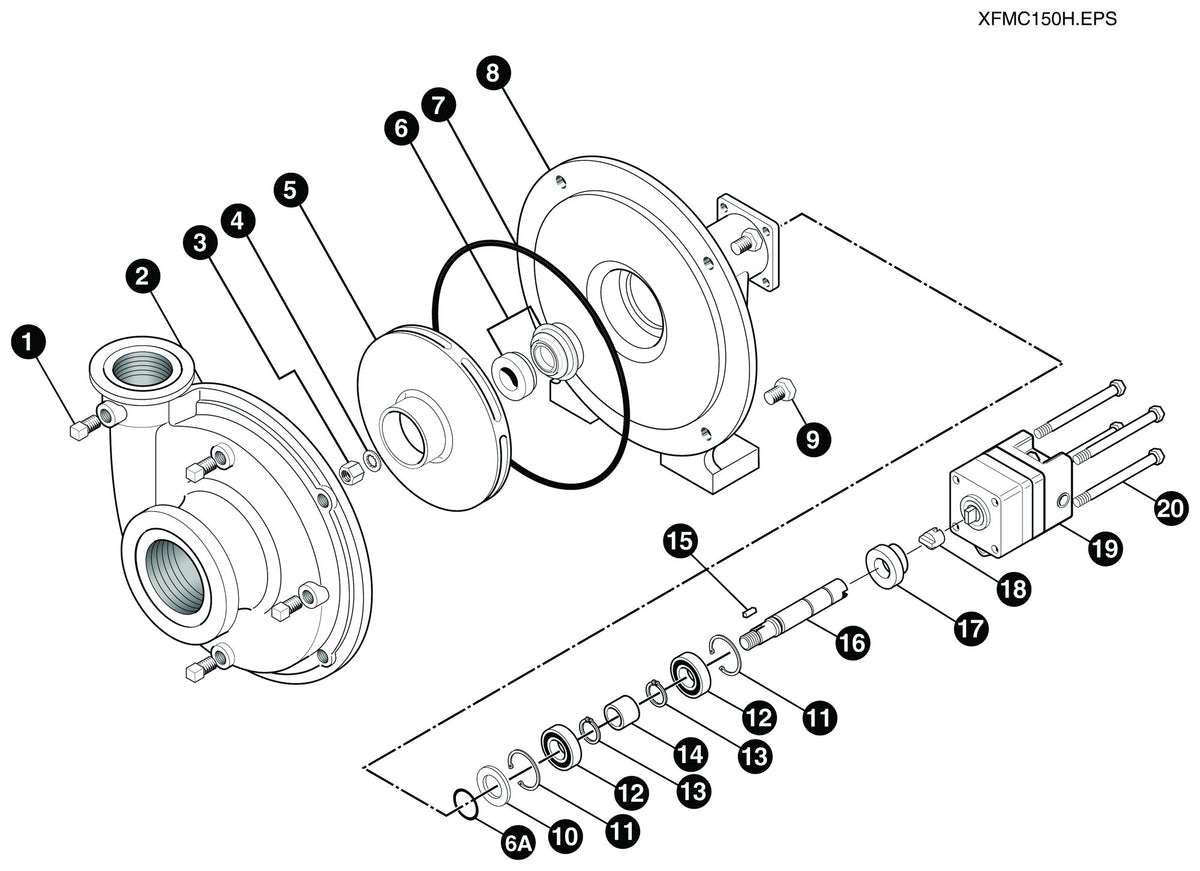

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 BAC-12-150-FLG Volute, cast iron, NPT & flanged 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
5 BAC-26-150-P Impeller, Valox, keyway 1
5 BAC-26-150-CI Impeller, cast iron, keyway (optional) 1
5 BAC-26-150-PI Impeller, polypropylene, keyway (optional) 1
6 BAC-7V Seal, carbon/ceramic/Viton (includes o-ring) 1
6 BAC-7SC Seal, silicon carbide/Viton (includes o-ring) (optional) 1
6A 40160 O-ring, shaft seal 1
7 BAC-4-150 O-ring, body seal 1
8 BAC-14-150-HYD Mounting frame, cast iron 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
12 BAC-37 Ball bearing, sealed, BAC-6 shaft 2
13 BAC-32 Snap ring, external, BAC-6 shaft 2
14 BAC-32-S Spacer for BAC-6 shaft 1
15 BACH-25 Key, 1/8" x 1/8" x 1/2" 1
16 BAC-6-HYD-SS Shaft, 5/8" diameter, keyway and tang slot, stainless steel 1
17 BAC-75-HYD-206 Hydraulic motor, 7 GPM (includes refs 18-25) 1
18 S200 Seal support spacer for 200 Series hydraulic motor 1
19 BAC-75-HYD-206N Hydraulic motor, 7 GPM (motor only, no external fittings) 1
20 41255 Cap screw, 5/16" NC x 3-3/4" socket head (206N motor) 4
21 41875 O-ring, #8 SAE fitting 2
22 BAC-78-8SAE Reverse check valve, #8 SAE male x 1/2" NPT female 1
23 BAC-80-8SAE Adapter, restrictor body, #8 SAE male x 1/2" NPT female 1
24 41448 O-ring, orifice insert 1
25 BAC-79-7 Orifice, restrictor insert, .109 (206N) 1
26 LS-206N Flow limiting valve (206N), #8 SAE male x 1/2" NPT female 1

Repair Kits

Kit No. Description
RK-FMC-150 Repair kit, FMC-150 series
RK-FMCSC-150 Repair kit, FMC-150 series with silicon carbide shaft seal
RK-BAC-75-HYD-L Repair kit, 200-L series hydraulic motor

Parts and specifications per Ace Pump Corporation product sheet FMC-150F-HYD 03-13.
