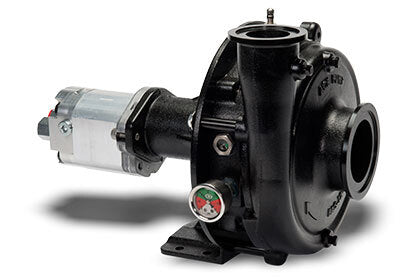

FMC-750F-HYD-M25 — Pump, Hydraulic 20.5 GPM, Flange, Wet Seal

FMC-750F-HYD-M25 — Pump, Hydraulic 20.5 GPM, Flange, Wet Seal

$2,989.80 USD
$4,983.00 USD $2,989.80 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-750F-HYD-M25 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-750F-HYD-M25 — Pump, Hydraulic 20.5 GPM, Flange, Wet Seal” — fitment, alternatives, or what else you need

FMC-750F-HYD-M25 hydraulic-driven centrifugal pump, 300 x 220 flange ports, Oasis WetSeal barrier-fluid seal technology. Flow rate up to 290 GPM at 150 PSI (20.5 GPM hydraulic oil flow required). For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT 4
2 BAC-12-750-FLG Volute, 300 X 220 flange, cast iron, e-coated 1
3 40397 Acorn nut, 5/8"-11 stainless steel 1
4 ACAL-4 O-ring, volute seal 2
5 BAC-26-750-CI Impeller, cast iron, e-coated 1
5 BAC-26-750-SS Impeller, 316 stainless steel (optional) 1
6 BAC-16-750 Seal plate, cast iron, e-coated 1
7 41107 Plug, #8 SAE X 1/4" FNPT, hex head, with o-ring 1
8 41316 Air valve, 1/4" NPT 1
9 BAC-7-750V Dual seal assembly, Type 21, .875 shaft 1
10 41108 Plug, SAE #8, hex head, with o-ring 1
11 44039 Bushing, #8 SAE x 1/8" FNPT 1
11 44038 Bushing, 1/2" MNPT x 1/8" FNPT (prior to 11/11) 1
12 50150 Pressure gauge, 0-60 PSI, 1/8" NPT 1
13 55851 Site gauge, #8 SAE, steel 1
13 55850 Site gauge, brass 1/2" NPT 1
14 45267 Spacer, seal plate 4
15 42701 Washer, 3/8", volute and motor mount 3
16 BAC-14-750-HYD Mounting frame, cast iron, e-coated 1
17 40952 Cap screw, 3/8" NC x 2-1/2", hex head (volute) 4
18 41907 Cap screw, 3/8" NC x 1", socket head (seal plate, motor mount) 4
19 BAC-54-650 Slinger, 7/8" shaft 1
20 41943 Snap ring, internal, frame 2
21 ACAL-32 Snap ring, external, shaft 2
22 40875 Ball bearing, sealed 2
23 41085 Key, .188 x .188 x .875 1
24 BAC-6-750-HYD-SS-WS Shaft, 11T female spline, stainless steel 1
25 BAC-32-750 Spacer, shaft 1
32 55032 Barrier fluid, Royal Purple, quart 1.32

Hydraulic Motor

Ref. Part No. Description Qty
26 43419 O-ring, flange, M Series motor (effective 6/15) 1
27 43414 Pad, absorbent, M Series motor (effective 6/15) 1
28 BAC-75-HYD-M25 Hydraulic motor, pressure plated gear type, 20 GPM 1
29 41445 O-ring, #10 SAE fitting 2
30 BAC-78-10SAE Reverse check, #10 SAE male x 1/2" NPT female 1
31 BAC-80-10SAE Body, adapter/restrictor, #10 SAE male x 1/2" NPT female 1

Repair Kits

Kit No. Description
RK-FMC-750 Repair Kit Assembly
RK-BAC-75-M Repair Kit Assembly, M Series, Eff. 6/15

Parts per Ace Pump Corporation product sheet FMC-750F-HYD (rev 12/16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.

View full details
