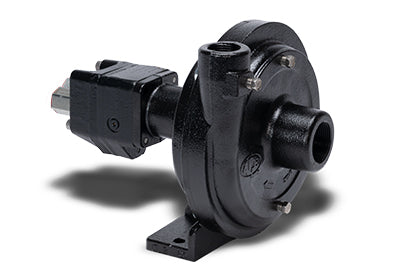

FMCSC-125-HYD-206-PWM — Pump, Hydraulic, 1.25"x1", Pro 5 Seal, PWM
FMCSC-125-HYD-206-PWM — Pump, Hydraulic, 1.25"x1", Pro 5 Seal, PWM
Regular price
$1,935.00 USD
Regular price
$3,225.00 USD
Sale price
$1,935.00 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-125-HYD-206-PWM — Pump, Hydraulic, 1.25"x1", Pro 5 Seal, PWM” — fitment, alternatives, or what else you need
FMCSC-125-HYD-206-PWM hydraulic-driven centrifugal pump, 1.25" x 1" ports, Pro5 mechanical seal (silicon carbide, severe duty), proportional (PWM) hydraulic flow control compatible. Flow rate up to 92 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-125 | Volute, 1-1/4" NPT X 1"NPT | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 5 | BAC-26-125-P | Impeller, thermoplastic, keyway | 1 |
| 6 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical seal | 1 |
| 7 | BAC-4-150 | O-ring, body seal | 1 |
| 8 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8"NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8"NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 12 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, stainless steel | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 16 | S255 | Seal support spacer | 1 |
| 17B | BAC-75-HYD-206-PRO5-PWM | Hydraulic motor, integrated PWM valve, 7 GPM | 1 |
| 18 | 41875 | O-ring, restrictor | 2 |
| 19 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 20 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 20B | BAC-78-10X8SAE | Reverse check assembly, #8 SAE x #10 SAE, w/ O-ring | 1 |
| 21 | 41448 | O-ring, restrictor | 1 |
| 24B | 41263 | Cap screw, 5/16"NC x 6" socket head, SS (for 206-PWM motor) | 2 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair Kit Assembly |
| RK-BAC-75-HYD-L | Repair Kit Assembly, 200 Series Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCSC-125-HYD (Pro 5, 1-1/4" NPT x 1" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
