FMCSC-150FS-HYD-206-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC
FMCSC-150FS-HYD-206-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC
Regular price
$2,785.20 USD
Regular price
$4,642.00 USD
Sale price
$2,785.20 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-150FS-HYD-206-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC” — fitment, alternatives, or what else you need

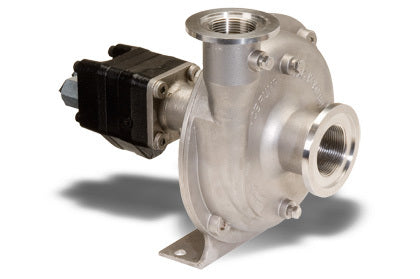

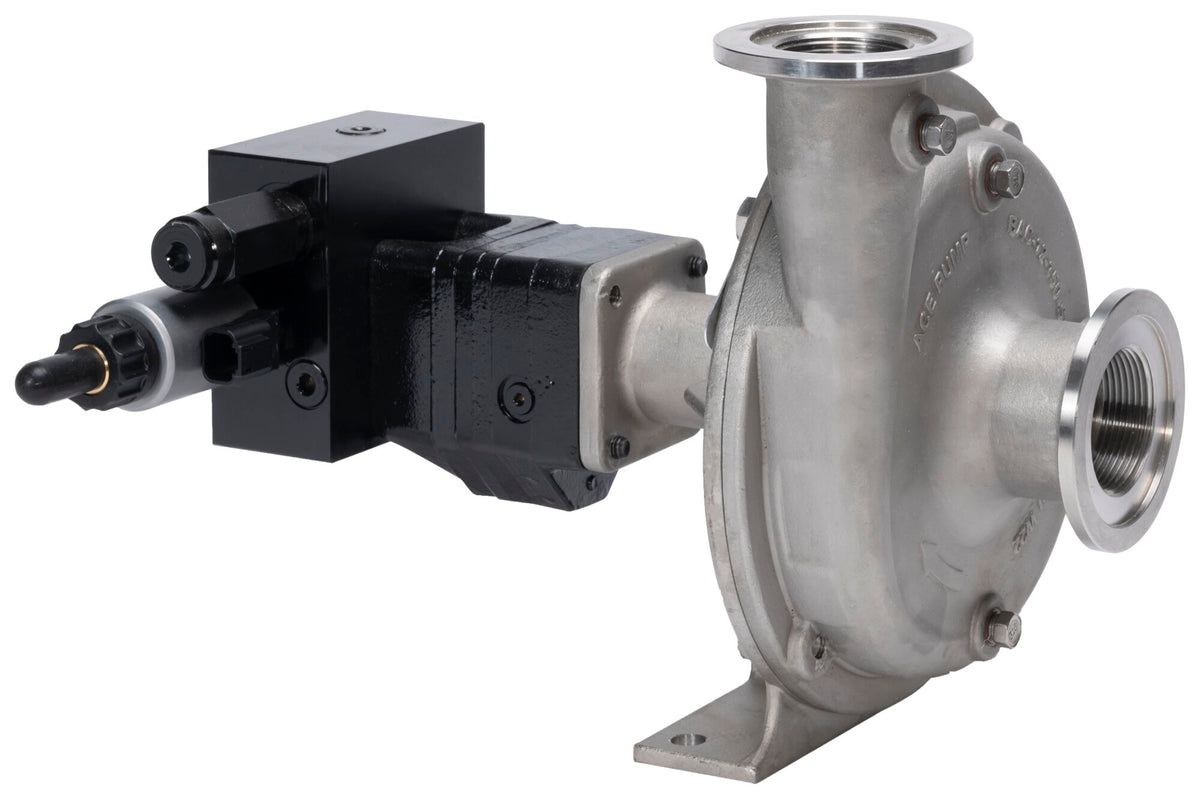

The FMCSC-150FS-HYD-206-PWM is a Ace hydraulic motor driven centrifugal pump — 316 stainless steel volute, silicon carbide seal, integrated PWM valve motor.
Specifications
| Suction | 220 flange & 1-1/2" NPT |
|---|---|
| Discharge | 200 flange & 1-1/4" NPT |
| Volute | 316 stainless steel |
| Impeller | Chemical resistant thermoplastic |
| Seal | Silicon carbide / Viton (severe duty) |
| Hydraulic motor | 206 with integrated PWM valve; ports #8 SAE in / #10 SAE out |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-SS | Volute, 316 stainless steel, NPT & flanged | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8", stainless steel, vibration proof | 1 |
| 5 | BAC-26-150-P | Impeller, Valox, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway (optional) | 1 |
| 5 | BAC-26-150-PI | Impeller, polypropylene, keyway (optional) | 1 |
| 6 | BAC-7SC | Seal, silicon carbide/Viton (includes o-ring) | 1 |
| 6A | 40160 | O-ring, shaft seal | 1 |
| 7 | BAC-4-150 | O-ring, body seal | 1 |
| 8 | BAC-14-150-HYD-SS | Mounting frame, 316 stainless steel | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 12 | BAC-37 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 13 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 14 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 15 | BACH-25 | Key, 1/8" x 1/8" x 1/2" | 1 |
| 16 | BAC-6-HYD-SS | Shaft, 5/8" diameter, keyway and tang slot, stainless steel | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-150 | Repair kit, FMC-150 series with silicon carbide shaft seal |
Parts and specifications per Ace Pump Corporation product sheet FMC-150F-HYD 03-13 (pump end) / 206-PWM product sheet.
