FMCSC-155F-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal, PWM
FMCSC-155F-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal, PWM
Regular price
$2,116.20 USD
Regular price
$3,527.00 USD
Sale price
$2,116.20 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-155F-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal, PWM” — fitment, alternatives, or what else you need

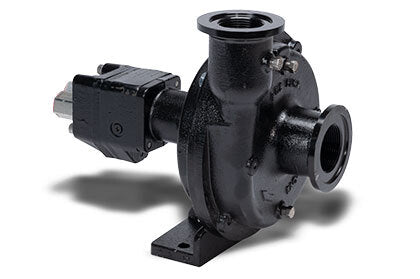

FMCSC-155F-HYD-304-PWM hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, Pro5 mechanical seal (silicon carbide, severe duty), proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-FLG-EC | Volute, cast iron, NPT/flanged, e-coated | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 5 | BAC-26-150-P | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway | 1 |
| 5 | BAC-26-150-PI | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-SS | Impeller, stainless steel, keyway | 1 |
| 6 | BAC-4-150 | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical | 1 |
| 8 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8"NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8"NC x 3/4", stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 12 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, SS | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 16 | S300 | Seal support spacer (304N) | 1 |
| 17C | BAC-75-HYD-304-PWM | Hydraulic motor, integrated PWM valve, 9 GPM (includes 16, 17C, 20B, 25, 26) | 1 |
| 20B | BAC-78-10X10SAE | Reverse check assembly, #10 SAE x #10 SAE | 1 |
| 25 | 41445 | O-ring, #10 SAE | 1 |
| 26 | 41130 | Mounting bolt for 300 series motor | 2 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair Kit Assembly |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
