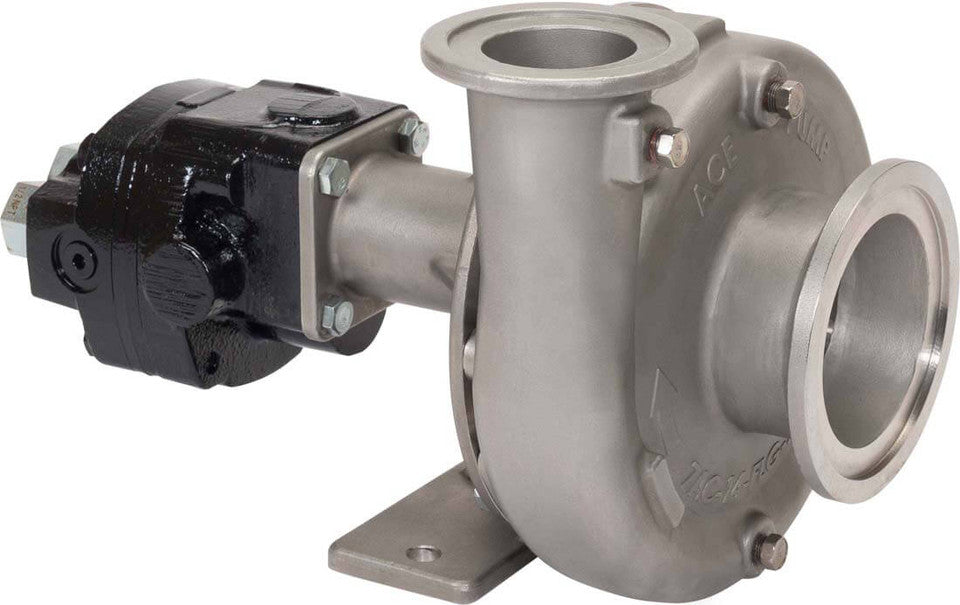

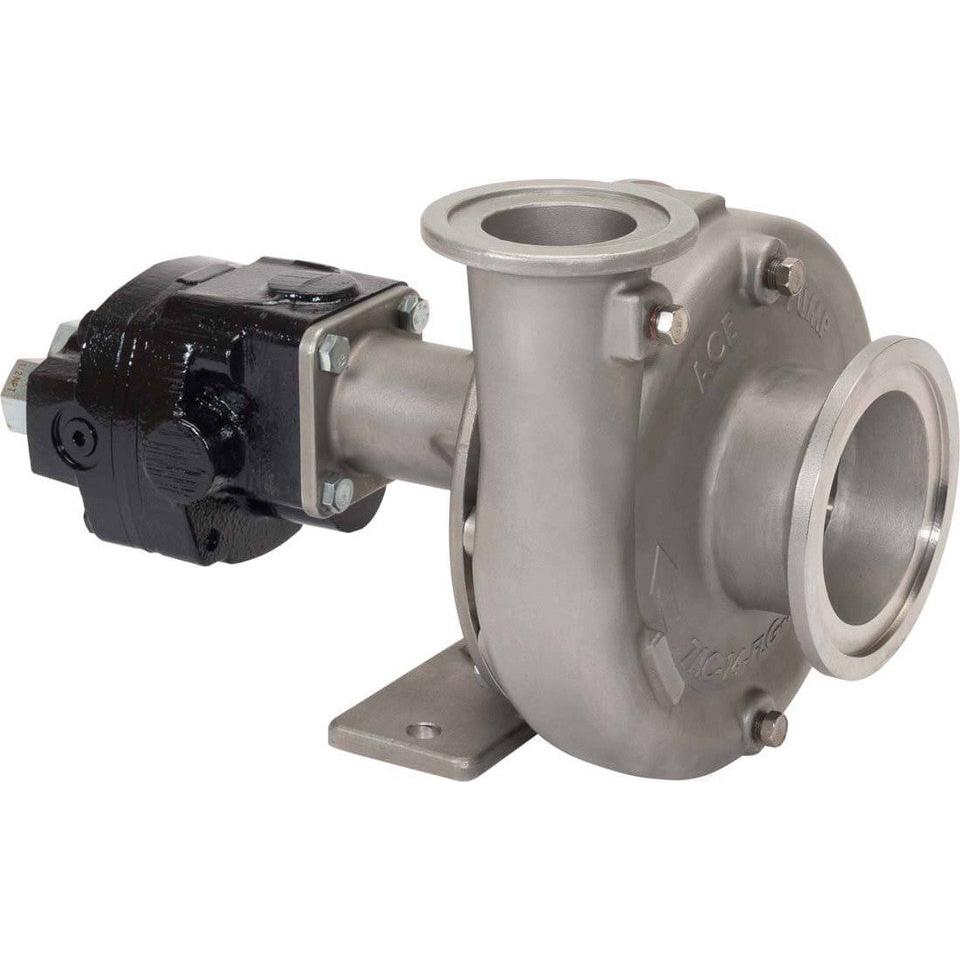

The FMCSC-155FS-HYD-206 is a Ace Pro5 hydraulic motor driven centrifugal pump — 316 stainless steel volute, silicon carbide seal, rated at 145 GPM and 120 psi shutoff.
Specifications
| Max flow | 145 GPM |
|---|---|
| Max shutoff pressure | 120 psi |
| Suction | 220 flange & 1-1/2" NPT |
| Discharge | 200 flange & 1-1/4" NPT |
| Hydraulic motor | 7 GPM, 200 series Pro5; 2700 psi max |
| Seal | Type 2106 silicon carbide (severe duty) |
| Volute | 316 stainless steel |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-SS | Volute, stainless steel, NPT and flanged | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" stainless steel, vibration proof | 1 |
| 5 | BAC-26-150-P | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway (optional) | 1 |
| 5 | BAC-26-150-SS | Impeller, stainless steel, keyway (optional) | 1 |
| 6 | BAC-4-150 | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical seal | 1 |
| 8 | BAC-14-5-HYD-SS | Mounting frame, stainless steel | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 12 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" stainless steel | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, stainless steel | 1 |
| 16 | S255 | Seal support spacer (206N) | 1 |
| 17 | BAC-75-HYD-206-PRO5 | Hydraulic motor, 7 GPM (26.5 l/min) | 1 |
| 18 | 41875 | O-ring, #8 SAE fitting | 2 |
| 19 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2" NPT | 1 |
| 20 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2" NPT | 1 |
| 22 | BAC-79-7 | Orifice insert, restrictor, with o-ring (206) | 1 |
| 23 | LS-206N | Flow limiting valve, #8 MSAE x 1/2" FNPT (206) (optional) | 1 |
| 24 | 41255 | Cap screw, 5/16" NC x 3-3/4" socket head, stainless steel | 2 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair kit, includes body o-ring and seal |
| RK-BAC-75-HYD-L | Repair kit, 200 series hydraulic motor with high pressure lip seal |
Parts and specifications per Ace Pump Corporation product sheet FMCSC-155F-HYD.
