Annovi Reverberi AR43285 BlueFlex Diaphragm Kit for AR30 / Hypro D30
Annovi Reverberi AR43285 BlueFlex Diaphragm Kit for AR30 / Hypro D30
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Fits the Hypro D30 (9910-D30) and AR30. BlueFlex diaphragm kit for rebuilding a D30 or AR30 diaphragm pump. BlueFlex is the diaphragm material the AR30 ships with.

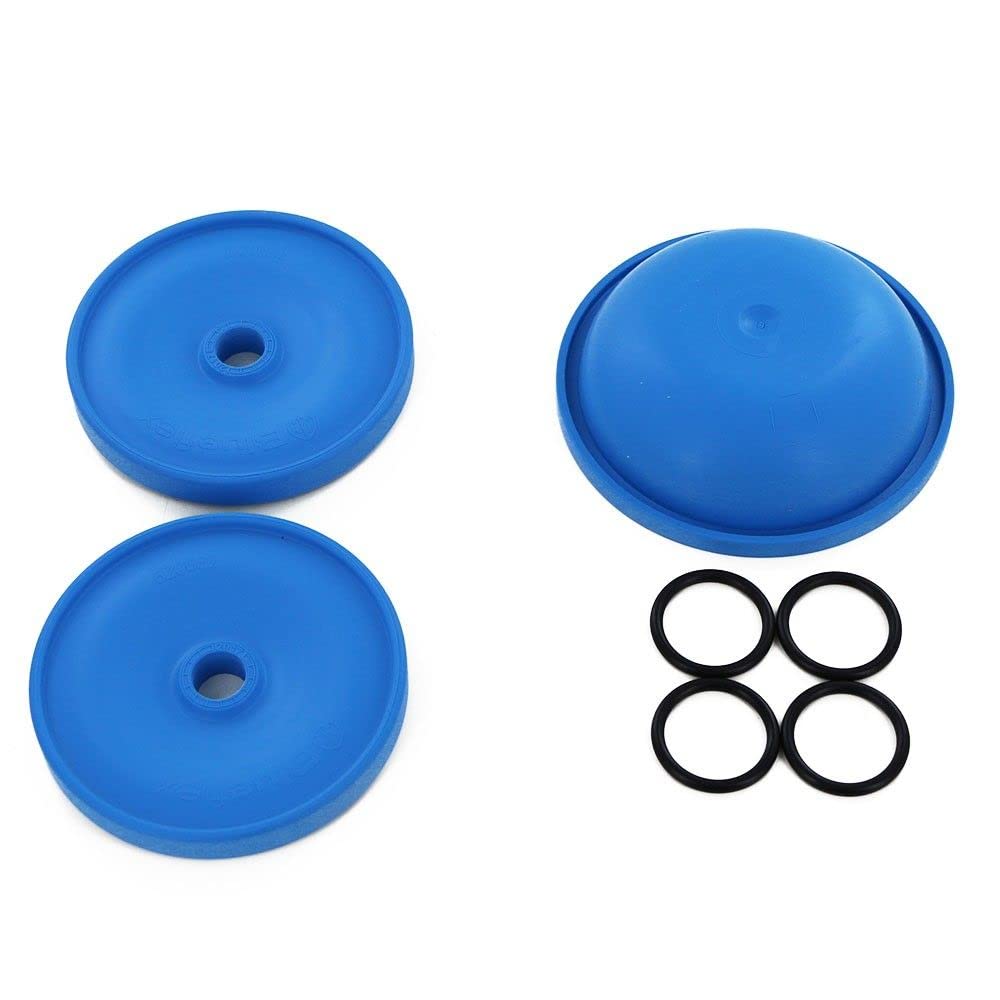

What’s in the Kit
| Qty | Part | Description |
|---|---|---|
| 2 | 620082 | Diaphragm (BlueFlex™) |
| 4 | 620030 | O-ring Ø 25.80x3.53 |
| 1 | 550194 | Air chamber Diaphragm (BlueFlex™) |
Use this kit when a diaphragm has failed: milky oil or spray mix in the crankcase, oil in the spray tank, or a sudden loss of pressure. After a diaphragm failure, flush the crankcase and refill with fresh AR64532D oil (26 oz).
Diaphragm material: BlueFlex is what most current AR ag pumps ship with. Match the material already in your pump, or the one your chemical label calls for. Other materials for the AR30 / AR40: Buna (NBR): AR43282 · Desmopan: AR43283.
Full rebuild for the AR30 / AR40: AR1917 valves, AR1916 O-rings.
Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Genuine A.R. (Annovi Reverberi) diaphragm kit, BlueFlex material, part no. AR43285.
Details
| Part number | AR43285 |
|---|---|
| Type | Diaphragm Kit |
| Material | BlueFlex |
Fits
AR30, AR30D, AR40 series pumps, and the discontinued Hypro D30 (9910-D30, D30AP-A, D30GRGI). Replacement pump: AR30-SP.
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
