Banjo
201POIW (B)
201POIW (B)
Regular price
$1,023.58 USD
Regular price
$1,968.43 USD
Sale price
$1,023.58 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

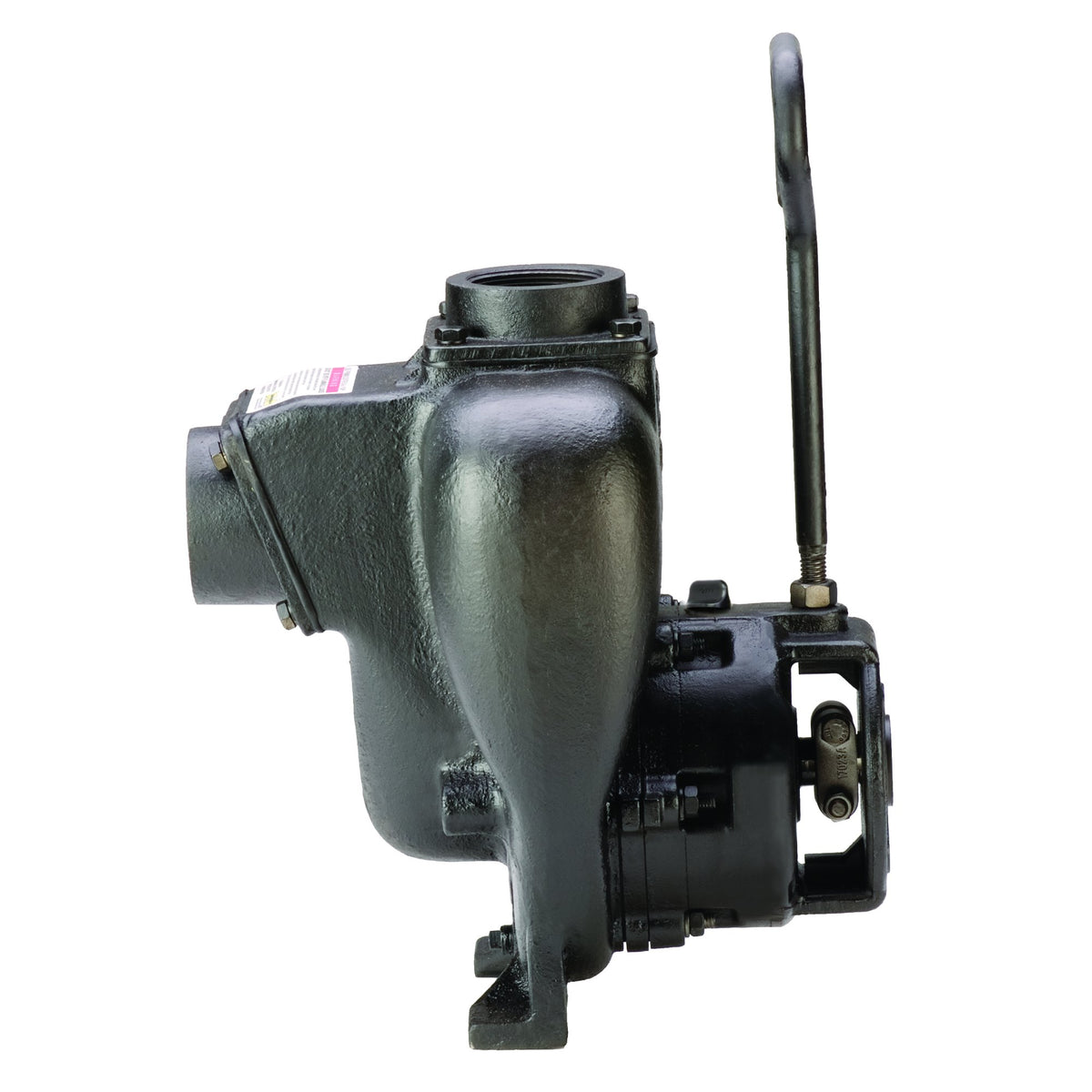

The 201POIW is a Banjo self-priming centrifugal pump — cast iron, double wet seal, rated at 2" cast iron wet seal pump only with run-dry capability.
Specifications
| Drawing title | 2" CI WET SEAL PUMP ONLY |
|---|---|
| Type | Cast Iron |
| Style | Wet Seal |
| Size | 2" |
| Housing | 2" wet seal pump housing sub-assembly, cast iron |
| Seal | 2" cast iron wet seal — FKM double seal in an ethylene glycol reservoir |
| Hardware | All stainless steel hardware |
| Impeller | Dynamically balanced |
| Feature | Run dry capability |
| Drain | 1/2" drain plug |
| Drive | Pump only - available with bearing pedestal, gas engine or pump only |
| Weight | 44.986 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12777 | 1/2" drain plug | 1 |
| 2 | 15022 | 2" pump handle | 1 |
| 3 | 17010 | 1/2-13 hex nut | 1 |
| 4 | 17018 | Pump adapter gasket | 2 |
| 5 | 17033 | Z-rail (pair) | 1 |
| 7 | 17123 | CI pump keyed clamp | 1 |
| 8 | 17200A | 2" CI wet seal assembly, new | 1 |
| 9 | 17226 | 2" wet seal pump housing sub-assembly | 1 |
| 10 | UV15163 | #114 o-ring, EPDM | 1 |
| 11 | V10118 | 5/16" lockwasher | 10 |
| 12 | V10119 | 5/16" hex nut | 10 |
Parts and specifications per the Banjo Corporation parts drawing for the 201POIW.
