Hypro
1502C-T3
1502C-T3
Regular price
$692.22 USD
Regular price
$1,153.70 USD
Sale price
$692.22 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

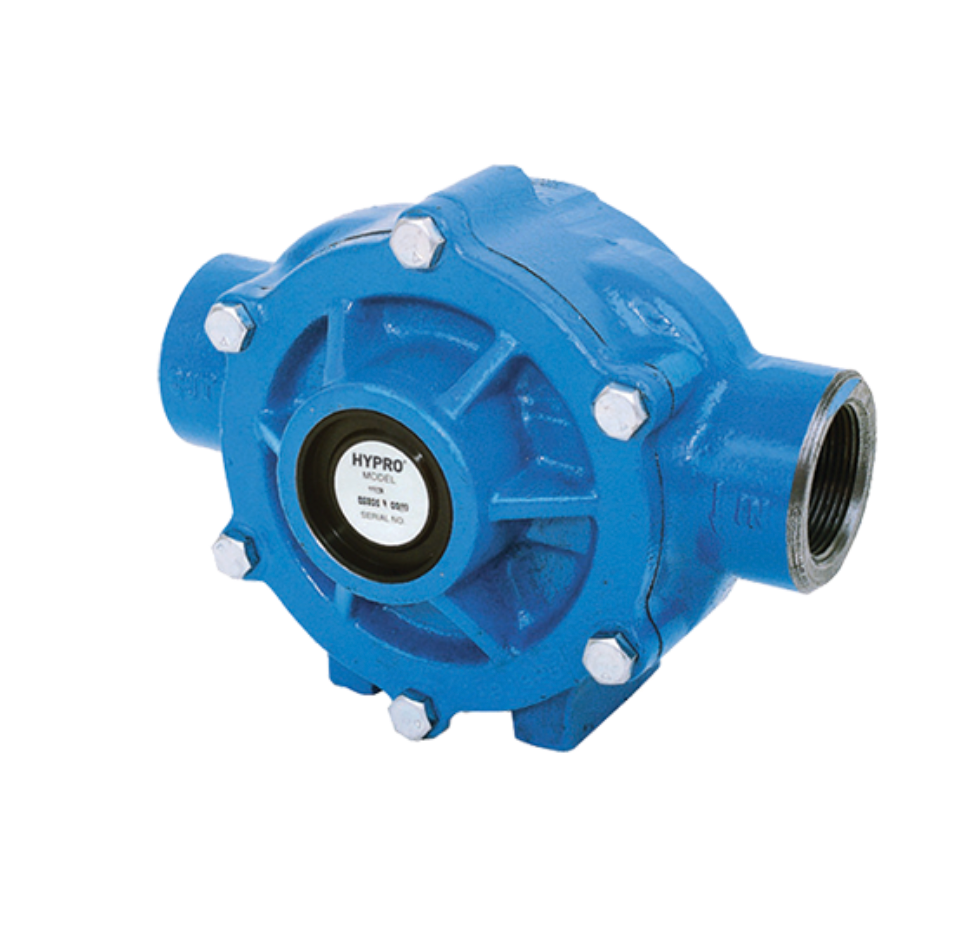

The 1502C-T3 is a Hypro 1500 series roller pump — cast iron, 6-roller, polypropylene rollers, rated at Up to 62.1 GPM and 200 PSI at 1000 RPM.
Specifications
| Rollers | 6, polypropylene |
|---|---|
| Max flow | 62.1 GPM (235.1 LPM) |
| Max pressure | 200 PSI (13.8 bar) |
| Max RPM | 1000 |
| Ports | 1-1/2" NPT inlet & outlet |
| Shaft | 15/16" dia. (solid) |
| Continuous operation | 100 PSI (6.9 bar) |
| Intermittent operation | 150 PSI (10.3 bar) |
| Dry weight | 30 lbs (13.6 kg) |
| Mounting bolts | 4 x 3/8-16 UNC |
| Max fluid temperature | 140 F (60 C) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 2008-0001 | Sealed Ball Bearing | 2 |
| 2 | 2112-0001 | Buna-N Seal (standard on cast iron) | 2 |
| 3 | 2210-0026 | Bolt (endplate) | 6 |
| 5 | 1720-0003 | O-ring Gasket for Endplate | 1 |
| 6 | 0300-1502C | Rotor (Cast Iron) with shaft, standard rotation | 1 |
| 6A | 0301-1502C | Rotor (Cast Iron) with shaft, reverse rotation | 1 |
| 7 | 1610-0005 | Key | 1 |
| 8 | 1002-0005 | Polypropylene Roller (fitted on -T3) | 6 |
| 11 | 2300-0020 | Bearing Cover | 1 |
| 12 | 2300-0022 | Shaft Bearing Cover | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0163 | Repair kit (matches -T3 poly rollers, Buna-N seals) - 6 polypropylene rollers, 1 O-ring gasket, 2 Buna-N seals |
| 3430-0162 | Repair kit - 6 polypropylene rollers, 1 O-ring gasket |
| 3430-0164 | Repair kit - 6 polypropylene rollers, 1 O-ring gasket, 2 Viton seals |
Parts and specifications per Hypro manual L-1572 Rev. B.
