Hypro 3430-0333 Seal Repair Kit for 9203P / 9213P and 9000 Series Poly Centrifugal Pumps

Hypro 3430-0333 seal and o-ring repair kit for Hypro 9000 series polypropylene centrifugal pumps, including the 9203P and 9213P flange-mount / pedestal pumps and the 9000P-O series. Contains the mechanical seal plus the gaskets, o-ring, and washer that seal the casing and shaft. If the pump is dripping behind the impeller housing or slinging fluid at the shaft, this is the fix.

In stock at our Spokane, WA shop. For abrasive or high-hour service, ask about the silicon carbide version (3430-0590). Call us if you're not sure which 9000-series model you have — a photo of the nameplate is all we need.

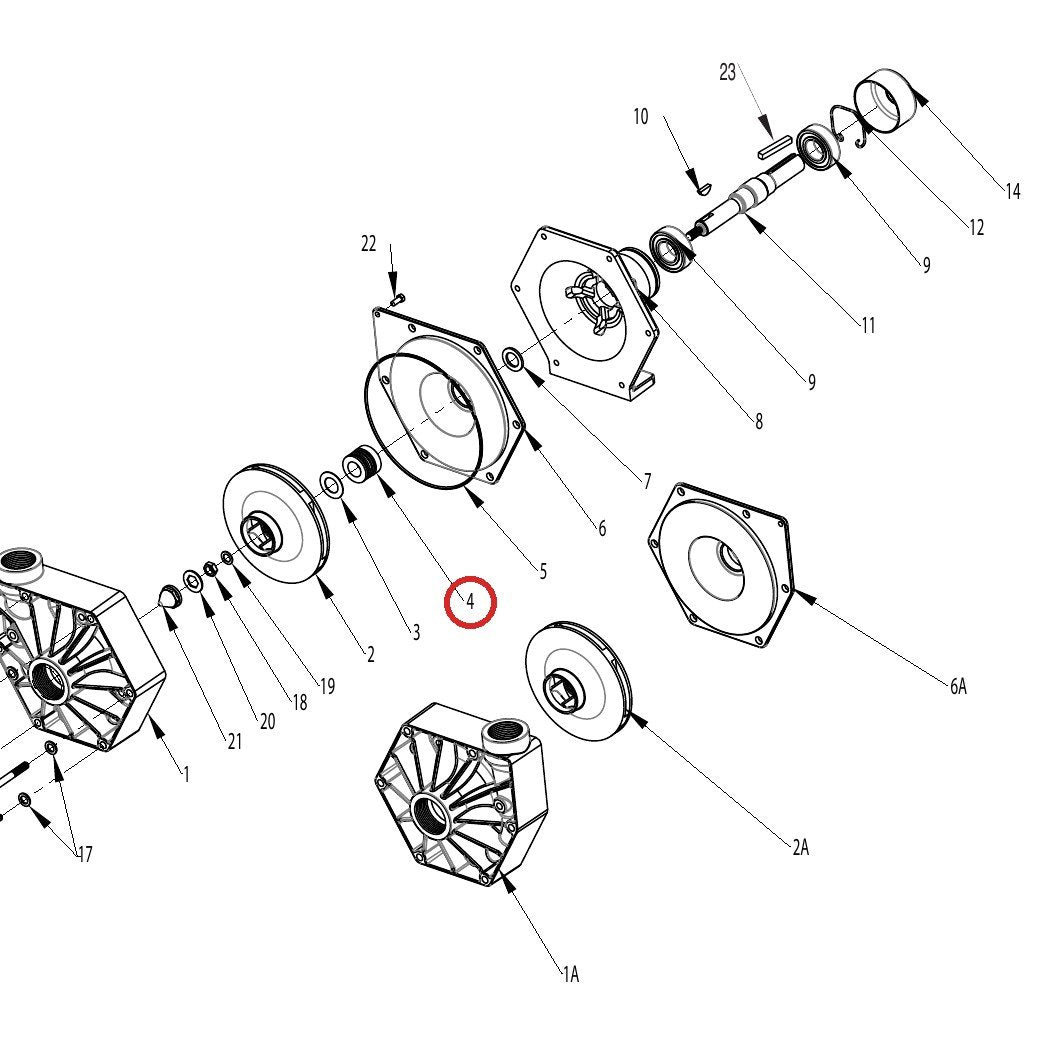

Kit contents

• Mechanical seal (ref. 4)
• Casing gasket (ref. 3)
• O-ring (ref. 5)
• Washer (ref. 19)
• Gasket (ref. 20)

Fits

• Hypro 9203P-S, 9203P-SR and 9213P centrifugal pumps (Life Guard -B models come with the silicon carbide 3430-0590 kit)
• Hypro 9000P-O series centrifugal pumps

Related parts

• Silicon carbide seal kit (9203P/9213P): 3430-0590
• Impeller, poly: 0403-9000P (9203P-S, 9213P) · 0402-9000P (reverse, 9203P-SR)
• Back cover (9000P): Hypro 0750-9000P
