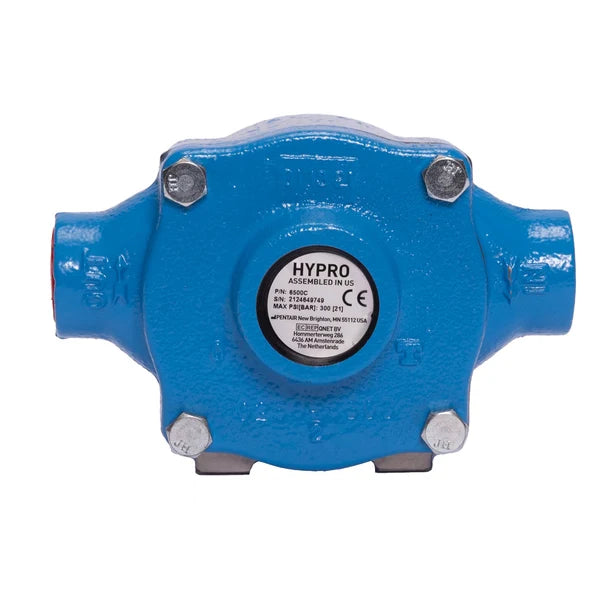

• Hypro 6500C 6-roller cast iron roller pump
1 1

Hypro

6500C Hypro 6-Roller Pump, Cast Iron & Repair Kits

6500C Hypro 6-Roller Pump, Cast Iron & Repair Kits

$212.68 USD
$354.46 USD $212.68 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: HY6500C — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “6500C Hypro 6-Roller Pump, Cast Iron & Repair Kits” — fitment, alternatives, or what else you need

The 6500C is a Hypro 6500 series roller pump — cast iron, 6-roller, Super Rollers, rated at Up to 21.8 GPM and 300 PSI at 1200 RPM.

Repair Kits for This Pump

If the pump... What to order
Has lost pressure or flow, or rollers are worn, chipped or swollen 3430-0380 roller repair kit (six Super Rollers, endplate O-ring, 2 Viton seals). 3430-0175 is the same kit with polypropylene rollers.
Leaks or drips at the shaft Shaft seals - 2107-0002 Viton (standard) or 2102-0001 Buna-N, 2 per pump. Both seals are also in 3430-0380.
Leaks around the endplate 1720-0008 endplate O-ring (also included in 3430-0380).
Rotor slots are worn or the shaft is scored Call us - we'll quote the correct rotor for your pump.

Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.

Specifications

Rollers 6
Max flow 21.8 GPM (82.5 LPM)
Max pressure 300 PSI (20.7 bar)
Max RPM 1200
Ports 3/4" NPT inlet & outlet
Shaft 5/8" dia. (solid)
Continuous operation 100 PSI (6.9 bar)
Intermittent operation 300 PSI (20.7 bar)
Dry weight 9 lbs (4.1 kg)
Mounting bolts 2 x 5/16-18 UNC
Seal material Viton (standard)
Flow at 540 RPM 9.7 GPM at 0 PSI; 7.2 GPM at 100 PSI; 4.3 GPM at 300 PSI
Flow at 1200 RPM 21.8 GPM at 0 PSI; 19.1 GPM at 100 PSI; 15.7 GPM at 300 PSI

Service Parts

Ref. Part No. Description Qty
1 2300-0021 Bearing Cover 1
2 2000-0010 Sealed Ball Bearing 2
3 2107-0002 Viton Seal (standard) 2
3 2102-0001 Buna-N Seal (optional) 2
3 2102-0001T Teflon-coated Buna-N Seal (optional) 2
4 2210-0004 Bolts (endplate) 4
5 0200-6600C Endplate (Cast Iron) with Seal 1
6 1720-0008 O-ring Gasket for Endplate 1
7 1005-0004 Super Roller (standard) 6
8 3420-0023 Base Kit (base, 2 bolts, 2 lock washers) - sold separately 1
10 2300-0023 Shaft Bearing Cover 1

Repair Kits

Kit No. Description
3430-0380 Repair kit - six Super Rollers, one O-ring gasket, two Viton seals
3430-0175 Repair kit - six polypropylene rollers, one O-ring gasket, two Viton seals

Parts and specifications per Hypro manual L-1572 Rev. B (IOM); L-0100R Rev. C (parts breakdown).
