AITTJ60-11004VP — AI/Turbo TwinJet
AITTJ60-11004VP — AI/Turbo TwinJet
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

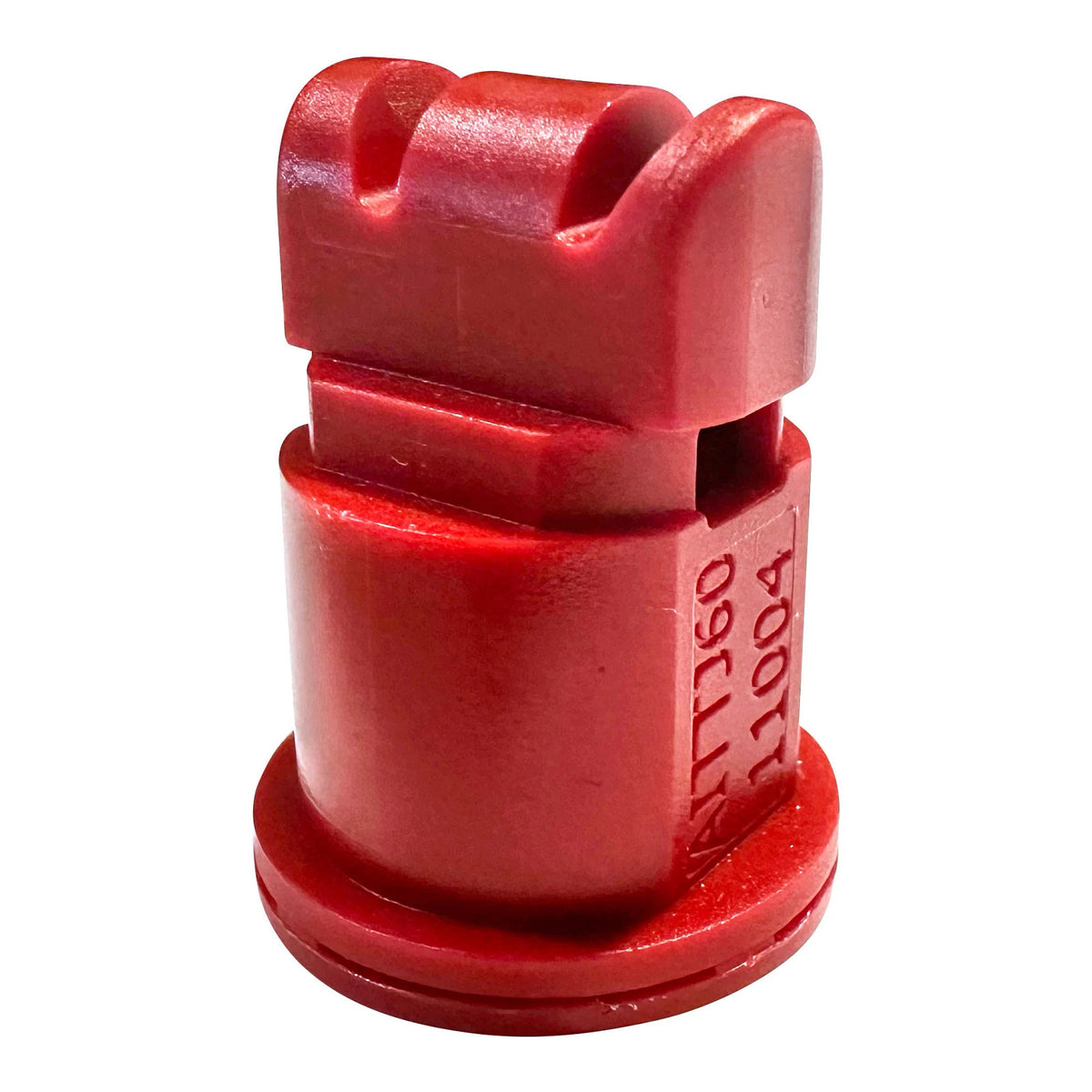

AITTJ60-11004VP air induction Turbo TwinJet flat spray tip, 110° twin spray pattern, 0.4 GPM at 40 PSI (red), polymer construction. Combines air-induction drift reduction with twin-fan canopy penetration for systemic and contact product application. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the AITTJ60-11004VP tip from TeeJet Catalog 51A (rated pressure range 20–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 20 | UC | 0.28 | 36 | 21 | 16.6 | 13.9 | 10.4 | 8.3 | 6.9 | 5.5 | 4.2 |
| 30 | XC | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 40 | VC | 0.40 | 51 | 30 | 24 | 19.8 | 14.9 | 11.9 | 9.9 | 7.9 | 5.9 |
| 50 | VC | 0.45 | 58 | 33 | 27 | 22 | 16.7 | 13.4 | 11.1 | 8.9 | 6.7 |
| 60 | C | 0.49 | 63 | 36 | 29 | 24 | 18.2 | 14.6 | 12.1 | 9.7 | 7.3 |
| 70 | C | 0.53 | 68 | 39 | 31 | 26 | 19.7 | 15.7 | 13.1 | 10.5 | 7.9 |
| 80 | C | 0.57 | 73 | 42 | 34 | 28 | 21 | 16.9 | 14.1 | 11.3 | 8.5 |
| 90 | C | 0.60 | 77 | 45 | 36 | 30 | 22 | 17.8 | 14.9 | 11.9 | 8.9 |
Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
