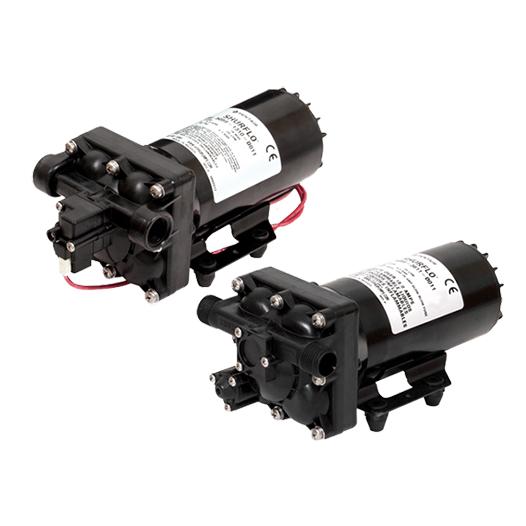

Hypro ShurFlo 5059-1311-D011 12V Diaphragm Pump, 5.3 GPM, 60 PSI Demand Switch, 1/2" NPSM
Hypro ShurFlo 5059-1311-D011 12V Diaphragm Pump, 5.3 GPM, 60 PSI Demand Switch, 1/2" NPSM
Regular price
$218.88 USD
Regular price
$364.80 USD
Sale price
$218.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “Hypro ShurFlo 5059-1311-D011 12V Diaphragm Pump, 5.3 GPM, 60 PSI Demand Switch, 1/2" NPSM” — fitment, alternatives, or what else you need
The 5059-1311-D011 is a Hypro/SHURflo 5000 series 12-volt diaphragm pump — automatic demand with built-in pressure switch, rated at 5.3 GPM and 60 PSI.
Repair Kits for This Pump
| If the pump... | Kit |
|---|---|
| Won't shut off, cycles with the gun closed, or won't start | 94-910-02 pressure switch, or 94-910-01 upper housing with switch (1/2" NPSM ports) |
| Runs but won't prime, pulses, or loses pressure | 94-910-05 valve assembly (Viton) |
| Leaks back or drains the line when it shuts off | 94-910-03 check valve |
| Runs but has lost flow after the valves are ruled out | 94-910-04 drive assembly |
| Cracked head or you want to replace it all at once | 94-910-00 complete pump head (1/2" NPSM) |
Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Specifications
| Max flow | 5.3 GPM (20.1 l/min) |
|---|---|
| Max pressure | 60 PSI (4.14 bar) |
| Pressure switch | Automatic demand, set at 60 PSI |
| Voltage | 12 VDC |
| Max draw | 17.0 amps |
| Ports | 1/2" NPSM |
| Diaphragm | Santoprene |
| Valves | Viton |
| Priming | Self-priming to 8 ft (2.4 m) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 94-910-02 | Switch only (pressure switch) | 1 |
| 2 | 94-910-01 | Upper Housing Assembly (with switch) | 1 |
| 3 | 94-910-05 | Valve Assembly | 1 |
| 4 | 94-910-04 | Drive Assembly | 1 |
| 6 | 94-910-00 | Pump Head (complete) | 1 |
| 7 | 94-910-03 | Check Valve | 1 |
Parts per Hypro manual 911-1051; specifications per SHURflo Form 483 (5000 Series).
