FMCSC-205FS-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM
FMCSC-205FS-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM
Regular price
$3,123.60 USD
Regular price
$5,206.00 USD
Sale price
$3,123.60 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-205FS-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM” — fitment, alternatives, or what else you need

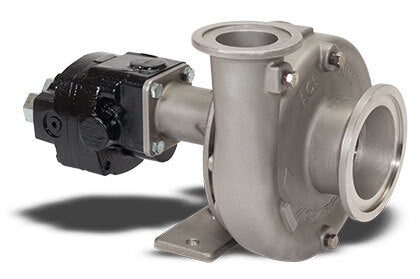

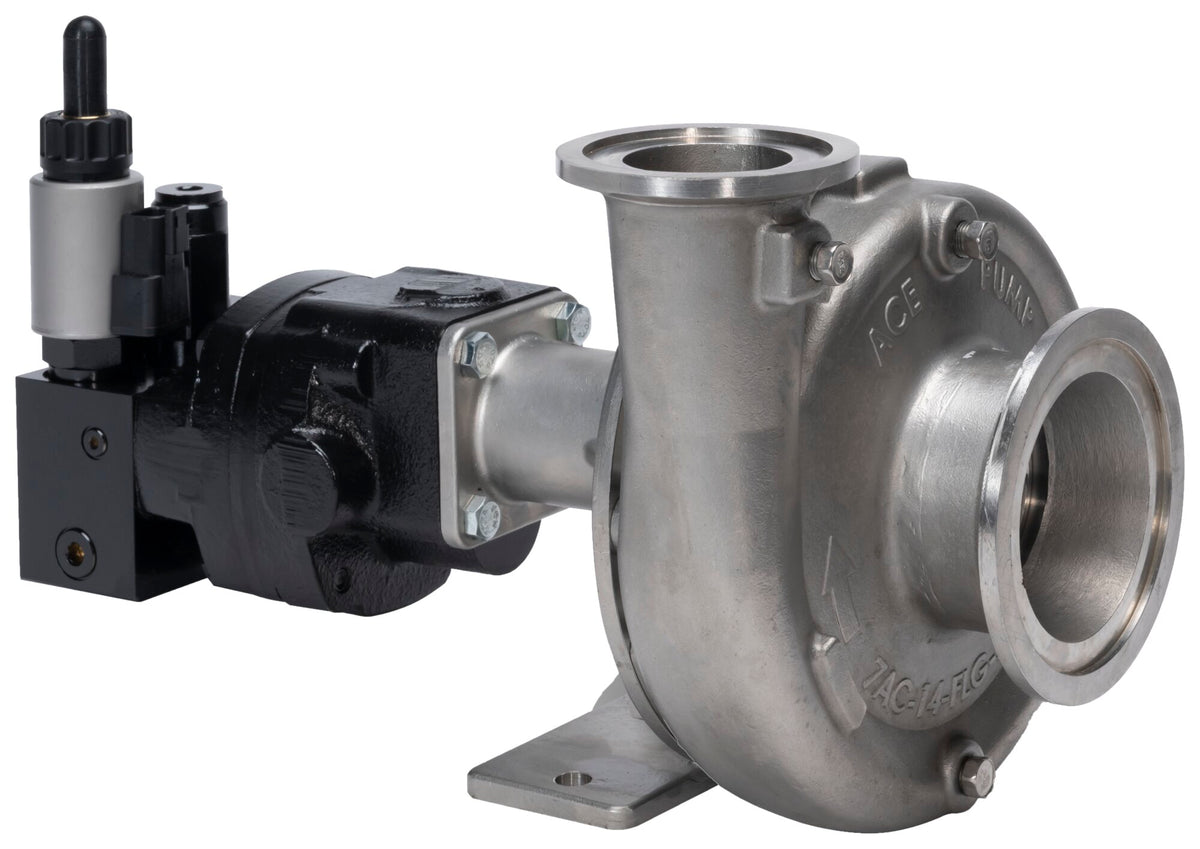

FMCSC-205FS-HYD-304-PWM hydraulic-driven centrifugal pump, 300 x 220 flange ports, silicon carbide mechanical seal (severe duty), proportional (PWM) hydraulic flow control compatible. Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (-FS model) | 4 |
| 2 | 7AC-14-FLG | Volute, 300 standard flange x 220 full port flange, cast iron | 1 |
| 2 | 7AC-14-FLG-SS | Volute, 300 flange x 220 flange, 316 stainless steel (-FS model) | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8", stainless steel, self-locking | 1 |
| 5 | BAC-26-200-P | Impeller, thermoplastic | 1 |
| 5 | BAC-26-200-CI | Impeller, cast iron (optional) | 1 |
| 5 | BAC-26-200-SS | Impeller, 316 stainless steel (-FS model) (optional) | 1 |
| 6 | BAC-4A | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, silicon carbide | 1 |
| 8 | BAC-14-205-HYD | Mounting frame for 205 pump | 1 |
| 8 | BAC-14-205-HYD-SS | Mounting frame for 205 pump, 316 stainless steel (-FS model) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (-FS model) | 4 |
| 10 | 41330 | Cap screw, 5/16" NC x 3/4" hex head, motor to pump | 4 |
| 11 | BAC-54 | Slinger | 1 |
| 12 | BACH-33 | Snap ring, internal, BAC-14-205 mounting frame | 2 |
| 13 | BACH-32-HD | Snap ring, external, BAC-6-205 shaft | 3 |
| 14 | 40880 | Ball bearing, sealed, BAC-6-205 shaft | 2 |
| 15 | BAC-6-205-HYD-SS | Shaft, extended keyway, tang, stainless steel | 1 |
| 16 | BAC-25 | Key, 1/8" x 1/8" x 13/16", extended keyway | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| BAC-75-HYD-304-PWM | Motor, 11 GPM Hydraulic, With PWM Valve | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-205 | Repair Kit Assembly |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -304-PWM motor can differ, so call us to confirm those parts.
Parts per Ace Pump Corporation product sheet FMCSC-205F-HYD-304 / FMCSC-205FS-HYD-304 (rev 08/15). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
