Ace Pumps
GESC-660-LE-EC
GESC-660-LE-EC
Regular price
$611.40 USD
Regular price
$1,019.00 USD
Sale price
$611.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

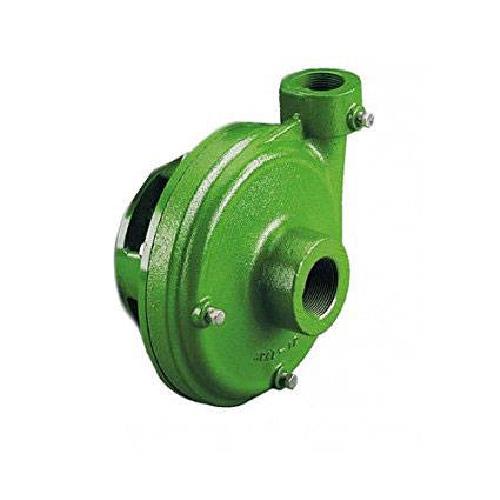

The GESC-660-LE-EC is a Ace gas engine driven centrifugal pump — cast iron, less engine, e-coated, silicon carbide seal, rated at 110 GPM and 115 psi shutoff.
Specifications
| Max flow | 110 GPM |
|---|---|
| Max shutoff pressure | 115 psi |
| Suction | 1-1/2" NPT |
| Discharge | 1-1/4" NPT |
| Volute / impeller | Cast iron |
| Seal | Silicon carbide / Viton (severe duty) |
| Drive | Less engine — pump head only, 3/4" keyed shaft |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT | 3 |
| 2 | ACAL-12 | Volute, 1-1/2" x 1-1/4" | 1 |
| 3 | ACAL-28-660 | Impeller, cast iron, 3/4" keyed | 1 |
| 4 | 41081 | Key, impeller, 3/16" x 3/4" | 1 |
| 5 | BAC-7SC-660V | Seal, silicon carbide/Viton | 1 |
| 6 | BAC-4-150 | O-ring, volute seal | 1 |
| 7 | ACAL-66 | Bracket, GE-660 keyed shaft | 1 |
| 8 | 40950 | Cap screw, 3/8" NC x 3/4" | 8 |
| 9 | GE-54-660 | Slinger | 1 |
| 10 | GE-60-SS | Cap screw, 5/16" NF, stainless | 5 |
| 11 | 30031 | Washer, Stat-O-Seal, 5/16" ID | 1 |
| 12 | 30028 | Washer, sealing, 5/16" ID | 4 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-GESC-660 | Repair kit with silicon carbide shaft seal |
Parts and specifications per Ace Pump Corporation product sheet GE-660 01-14.
