Banjo MV300BL 3" Full Port Manifold 3-Way Bottom Load Ball Valve
Banjo MV300BL 3" Full Port Manifold 3-Way Bottom Load Ball Valve
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

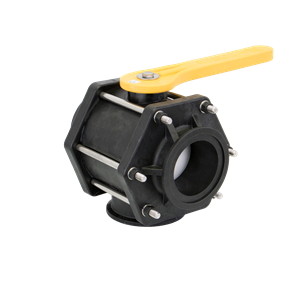

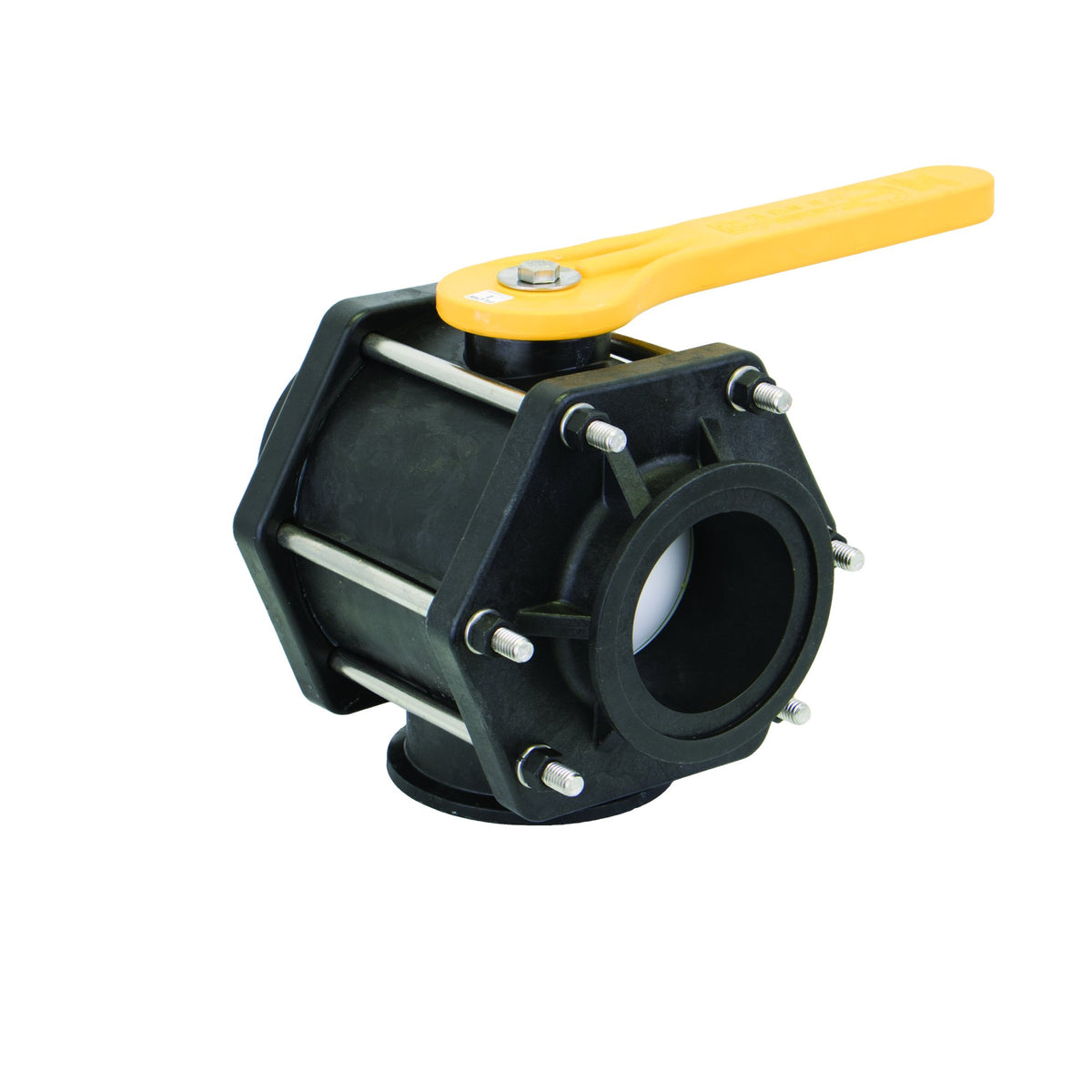

Banjo MV300BL is the 3" full-port, manifold-flange three-way bottom-load ball valve — the big tank valve on nurse trailers, tender trucks and large sprayers built on Banjo's 300 series manifold system. The common port comes in the bottom and the handle sends flow left, right or shuts it off, so one valve handles fill, transfer and return. Flanged ends clamp into any 300 series manifold fitting with a gasket and clamp: no 3" pipe threads, no tape, no fighting it.
In stock at our Spokane, WA shop and ships same or next business day. Need gaskets, clamps or the matching flange fittings to finish the job? See related parts below or give us a call.
Specifications
| Part number | MV300BL |
|---|---|
| Type | 3-way ball valve, bottom load, full port |
| Connection | 3 x 3" (300 series) Banjo manifold flange |
| Body | Glass-reinforced polypropylene |
| Seats / seals | PTFE seats, FKM o-rings |
| Ball | Self-aligning |
| Hardware | Stainless steel bolts |
| Service | Water, liquid fertilizer, most ag chemicals |
Related parts
M301G 300 series manifold gasket, EPDM · MVS300CF 3" stubby manifold 2-way valve · M300FPT 3" flange x 3" FPT · M300BRB90 3" flange x 3" 90° hose barb · M300BRBSWP90 3" flange x hose barb sweep · M303D 3" FP flange x 3" female camlock · MBF300 3" bolted manifold tank fitting · M300PO 3" manifold pump end · V200BL 2" threaded 3-way valve
Details
| Part number | MV300BL |
|---|---|
| Manufacturer | Banjo |
| SKU | BJMV300BL |
| Catalogue description | 3" full 3-way bottom load |
