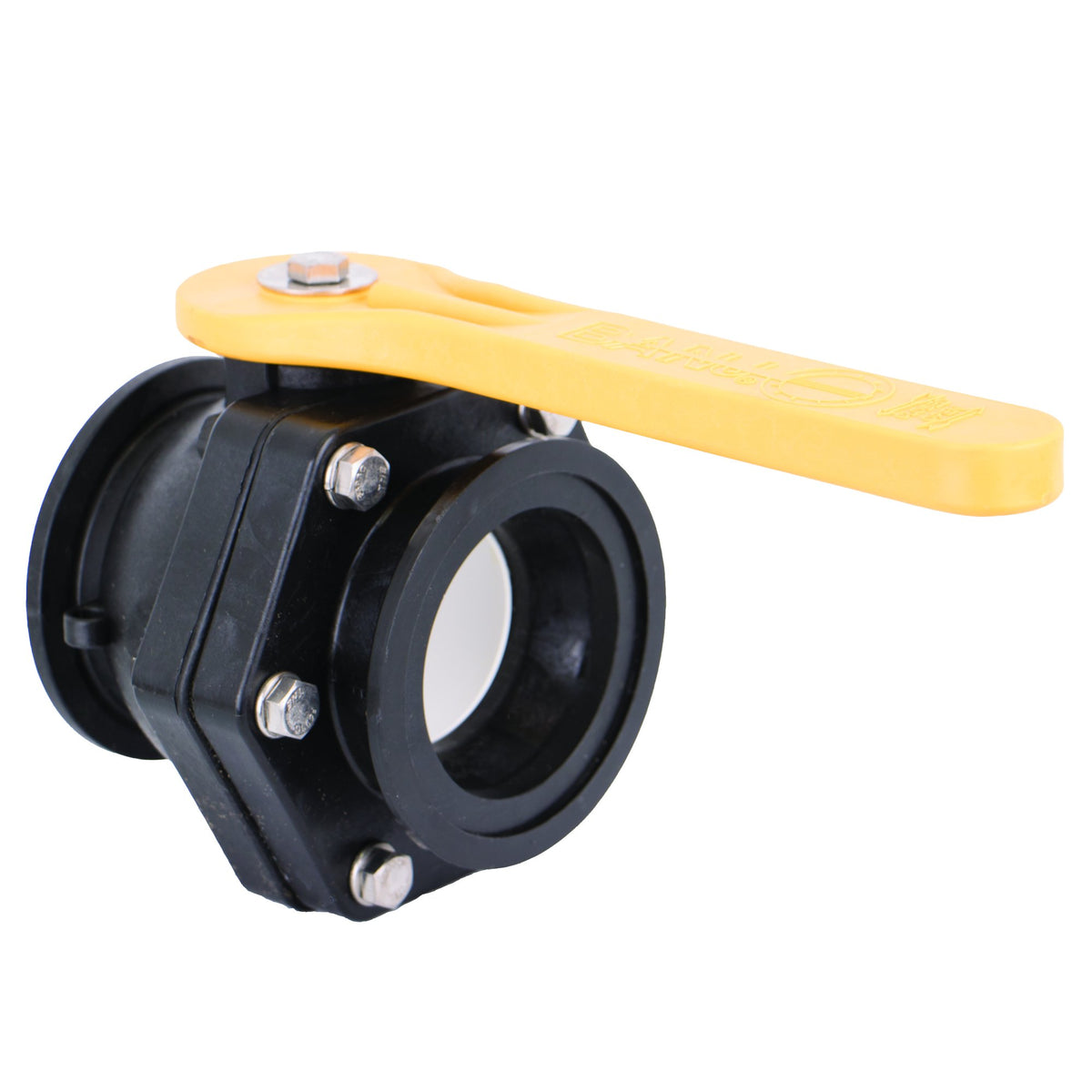

Banjo MVS300CF 3" Stubby Manifold Ball Valve, Flange x Flange
Banjo MVS300CF 3" Stubby Manifold Ball Valve, Flange x Flange
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Banjo MVS300CF is the 3" stubby (short-body) manifold-flange ball valve for Banjo's 300 series no-thread manifold system. The compact body is made for tight tank-outlet and pump-suction runs where a full-length valve won't fit — it's the shut-off you'll find on the bottom of a nurse-trailer tank or between a bolted tank fitting and the pump. Flange x flange: clamps in with a gasket and clamp, no 3" pipe threads.
In stock at our Spokane, WA shop and ships same or next business day. Need gaskets, clamps or the flange fittings on either side? See related parts below or give us a call.
Specifications
| Part number | MVS300CF |
|---|---|
| Type | 2-way ball valve, stubby / low profile |
| Connection | 3" (300 series) Banjo manifold flange x flange |
| Body | Glass-reinforced polypropylene |
| Seats / seals | PTFE seats, FKM o-rings |
| Ball | Self-aligning |
| Service | Water, liquid fertilizer, most ag chemicals |
Related parts
M301G 300 series manifold gasket, EPDM · MV300BL 3" manifold 3-way valve · MBF300 3" bolted manifold tank fitting · M300FPT 3" flange x 3" FPT · M300BRB90 3" flange x 90° hose barb · M300BRBSWP90 3" flange x hose barb sweep · M300CPG90 3" 90° flange coupling · M300PO 3" manifold pump end
Details
| Part number | MVS300CF |
|---|---|
| Manufacturer | Banjo |
| SKU | BJMVS300CF |
| Catalogue description | 3" stubby manifold valve |
