Banjo V075BL 3/4" 3-Way Bottom Load Poly Ball Valve, FNPT
Banjo V075BL 3/4" 3-Way Bottom Load Poly Ball Valve, FNPT
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

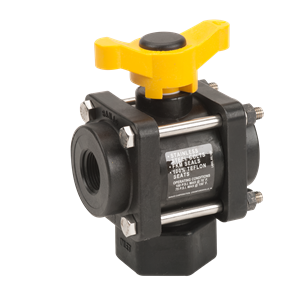

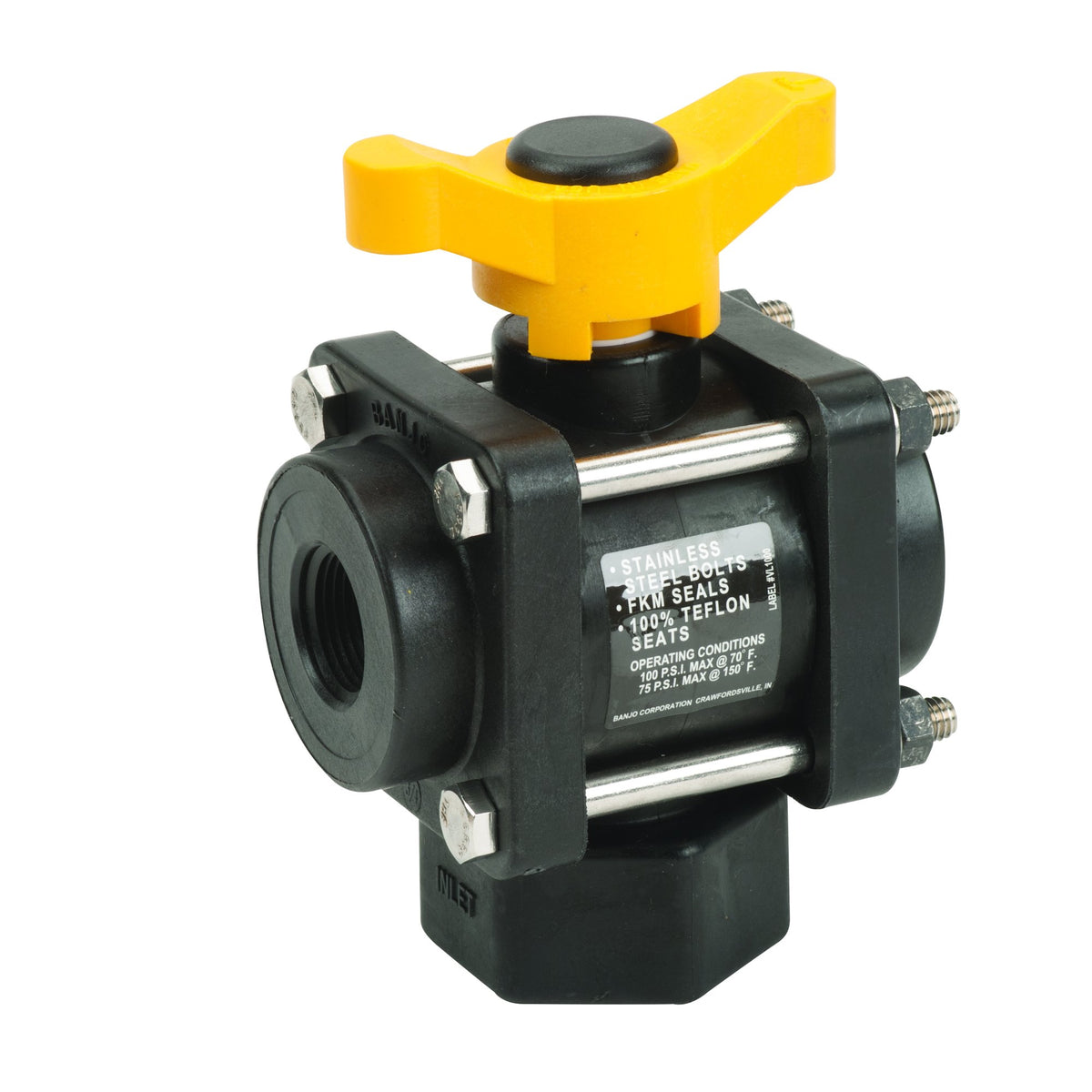

Banjo V075BL is a 3/4" FNPT three-way bottom-load ball valve — the common port comes in the bottom and the handle sends flow left, right or shuts it off. It's the standard valve for sprayer tank-fill / agitation selection, chemical inductor lines, and anywhere you need to pick one of two lines from a single feed without a second valve.
In stock at our Spokane, WA shop and ships same or next business day. Need the side-load version (common port in line with one outlet) or a different size? See related parts below or give us a call.
Specifications
| Part number | V075BL |
|---|---|
| Type | 3-way ball valve, bottom load (L-port) |
| Ports | 3 x 3/4" FNPT |
| Body | Glass-reinforced polypropylene |
| Seats / seals | PTFE seats, FKM o-rings |
| Ball | Self-aligning |
| Hardware | Stainless steel bolts |
| Service | Water, liquid fertilizer, most ag chemicals |
Related parts
V100BL 1" bottom load · V150BL 1-1/2" bottom load · V200BL 2" bottom load · V100SL 1" side load · V200SL 2" side load · UV075FP 3/4" single-union 2-way valve · HB075 3/4" hose barb · NIP075-SH 3/4" poly nipple
Details
| Part number | V075BL |
|---|---|
| Manufacturer | Banjo |
| SKU | BJV075BL |
| Catalogue description | 3/4" 3-way bottom load valve |
