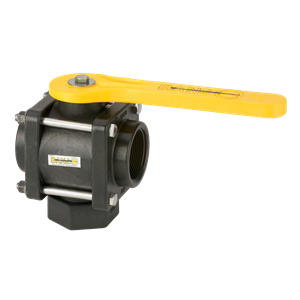

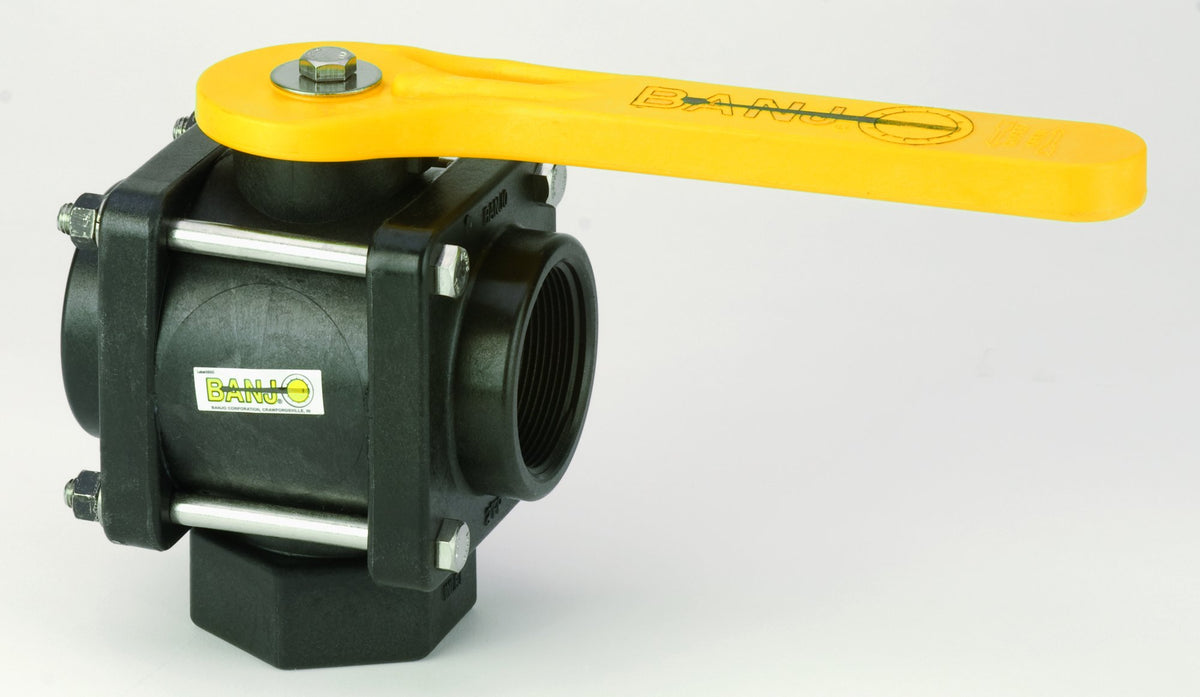

Banjo V200BL 2" 3-Way Bottom Load Poly Ball Valve, FNPT
Banjo V200BL 2" 3-Way Bottom Load Poly Ball Valve, FNPT
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Banjo V200BL is a 2" FNPT three-way bottom-load ball valve — the common port comes in the bottom and the handle sends flow left, right or shuts it off. This is the valve on the outlet of a 2" transfer pump or at the tank on a nurse trailer: one handle to switch between fill, agitate/return and discharge without stacking tees and two-way valves.
In stock at our Spokane, WA shop and ships same or next business day. Need the side-load layout (common port in line) or a manifold-flange version? See related parts below or give us a call.
Specifications
| Part number | V200BL |
|---|---|
| Type | 3-way ball valve, bottom load (L-port) |
| Ports | 3 x 2" FNPT |
| Body | Glass-reinforced polypropylene |
| Seats / seals | PTFE seats, FKM o-rings |
| Ball | Self-aligning |
| Hardware | Stainless steel bolts |
| Service | Water, liquid fertilizer, most ag chemicals |
Related parts
V200SL 2" side load · V150BL 1-1/2" bottom load · UV200FP 2" single-union 2-way valve · MV300BL 3" manifold 3-way valve · HB200 2" hose barb · NIP200-SH 2" poly nipple · LS200-50 2" Y strainer · 200PO 2" pump end
Details
| Part number | V200BL |
|---|---|
| Manufacturer | Banjo |
| SKU | BJV200BL |
| Catalogue description | 2" 3-way bottom load valve |
