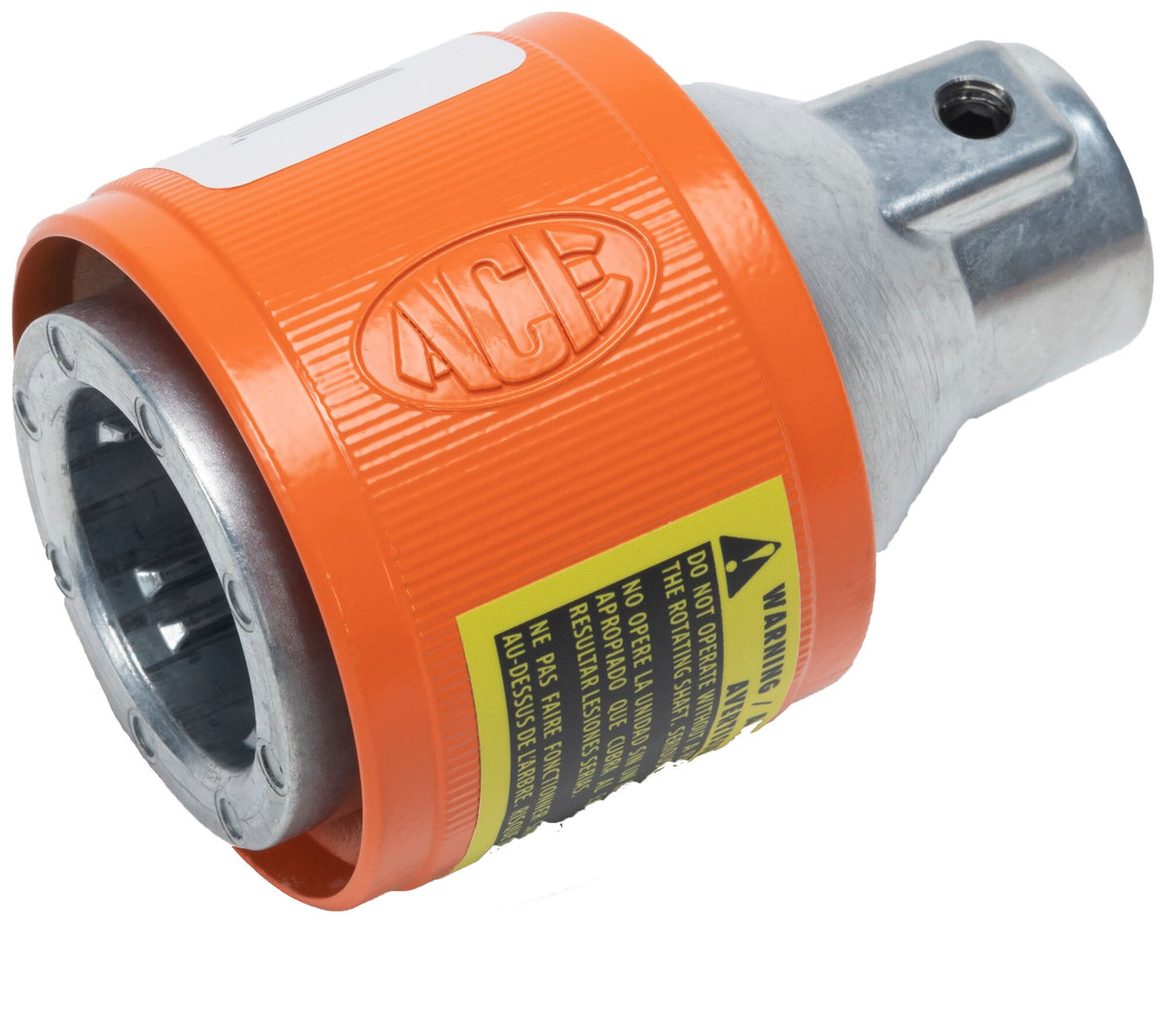

Ace Pumps BAC-10-RP6-QC — Multispeed PTO Quick Coupler, 5/8" Shaft, 6 and 21 Spline

Ace Pumps BAC-10-RP6-QC is the Multispeed PTO quick coupler for Ace roller pumps with a 5/8" shaft. One die-cast coupler fits both the standard 6-spline (540 RPM) and 21-spline (1000 RPM) tractor PTO shafts, so you do not need a different coupler when the pump moves between tractors. The spring-loaded ball-retainer sleeve with the orange collar lets you push the pump on and pull it off without tools; a 5/16-18 cup-point set screw locks the coupler to the pump shaft. The 15/16" shaft version is BAC-10-RP8-QC. Ace recommends a torque bar and chain (RP-TBK) to keep the pump from spinning on the PTO, and the PTO shield must stay in place.

In stock at our Spokane, WA shop and ships same or next business day. Not sure this is the right part for your setup? Call (509) 838-2209 with your pump model and we'll confirm before you order.

Fits

• Ace 6-roller pumps with 5/8" shaft (6-spline 540 RPM and 21-spline 1000 RPM PTO)

Related parts

BAC-10-RP8-QC quick coupler for 15/16" shaft · RP-TBK torque bar and chain kit
