FMC-150F-HYD-304-12SAE — Pump, Hydraulic Drive, 1.5" x 1.25", Flanged
FMC-150F-HYD-304-12SAE — Pump, Hydraulic Drive, 1.5" x 1.25", Flanged
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMC-150F-HYD-304-12SAE hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: #12 SAE motor ports. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-FLG | Volute, cast iron, NPT & flanged (150F models) | 1 |
| 3 | BAC-23-A | Nut, 3/8" NF, cad plated | 1 |
| 4 | BAC-24-HYD-SS | Washer, 3/8" star, stainless steel | 1 |
| 5 | BAC-26-150-P | Impeller, Valox, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway (optional) | 1 |
| 5 | BAC-26-150-PI | Impeller, polypropylene, keyway (optional) | 1 |
| 6 | BAC-7V | Seal, carbon/ceramic/Viton (includes O-ring) | 1 |
| 6 | BAC-7SC | Seal, silicon carbide/Viton (optional, includes O-ring) | 1 |
| 6A | 40160 | O-ring, shaft seal | 1 |
| 7 | BAC-4-150 | O-ring, body seal | 1 |
| 8 | BAC-14-150-HYD | Mounting frame, cast iron (150F models) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 12 | BAC-37 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 13 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 14 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 15 | BACH-25 | Key, 1/8" x 1/8" x 1/2" | 1 |
| 16 | BAC-6-HYD-SS | Shaft, 5/8" diameter, keyway and tang slot, stainless steel | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| BAC-75-HYD-304 | Motor, 11 GPM Hydraulic, N Series | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMC-150 | Repair Kit Assembly |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -304 motor can differ, so call us to confirm those parts.
This model has larger SAE motor port fittings than the standard #8 SAE fittings Ace shows, so the reverse check and restrictor fittings differ — call us to confirm those parts.
Parts per Ace Pump Corporation product sheet FMC-150F-HYD 03-13 (flanged 220 x 200 / 1-1/2" x 1-1/4" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads
The photo shows the FMC-150F-HYD-304. The FMC-150F-HYD-304-12SAE is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

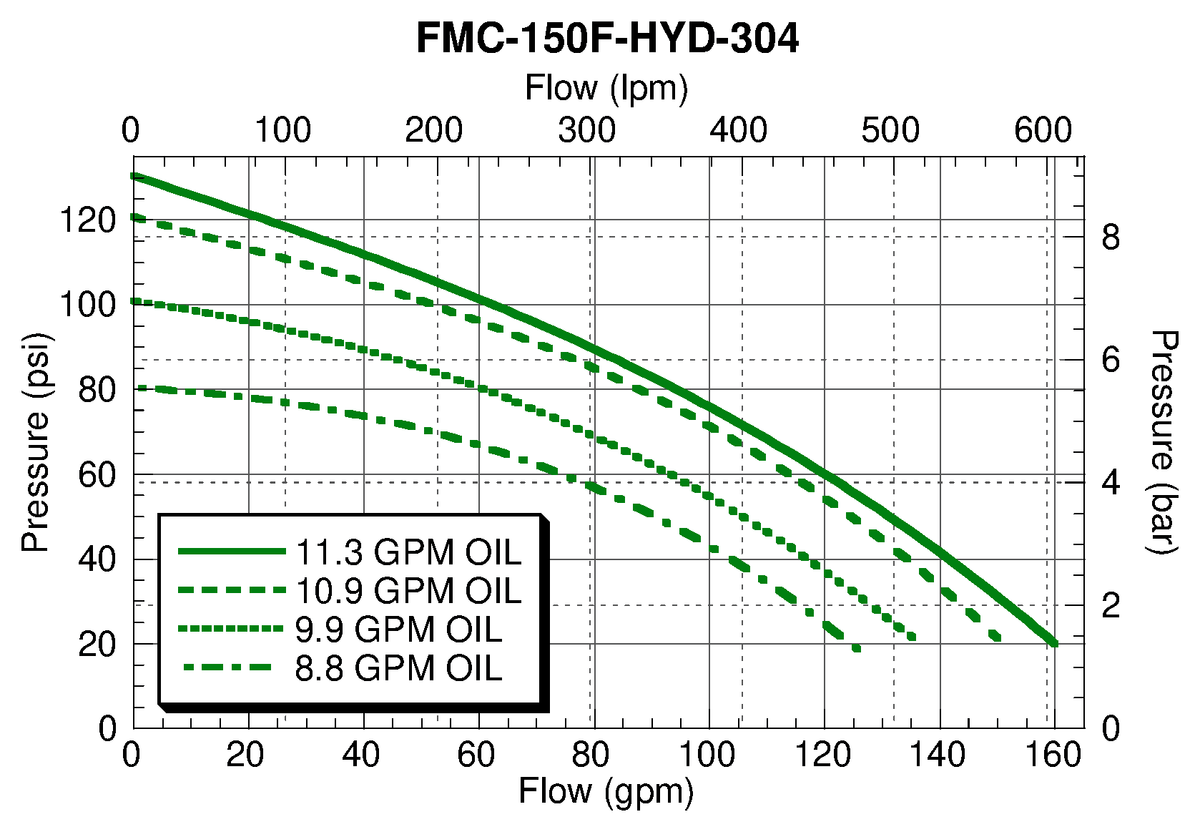

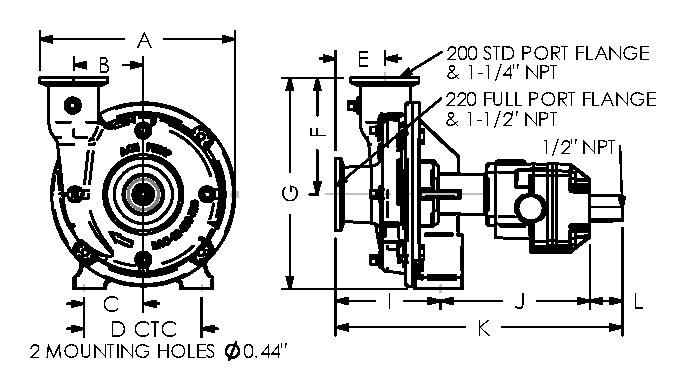

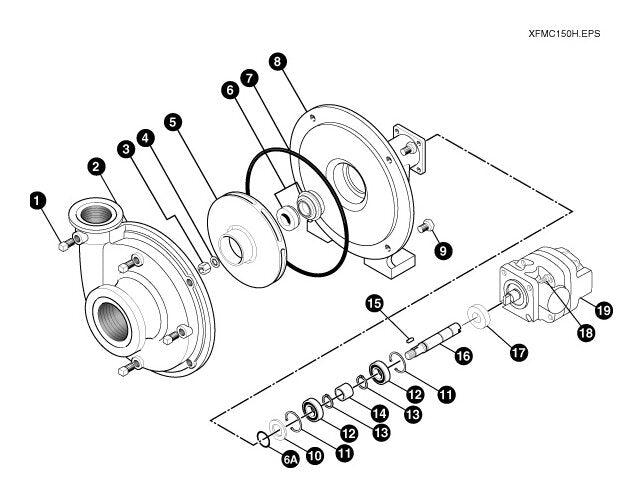

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
- FMC-150F-HYD-304 product sheet — parts list, performance and dimensions (PDF)
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- FMC pump repair kit — installation instructions (PDF)
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
