FMC-150F-HYD-310 — Pump, Hydraulic Drive, 1.5" x 1.25", Flanged

FMC-150F-HYD-310 — Pump, Hydraulic Drive, 1.5" x 1.25", Flanged

$1,345.20 USD
$2,242.00 USD $1,345.20 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-150F-HYD-310 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-150F-HYD-310 — Pump, Hydraulic Drive, 1.5" x 1.25", Flanged” — fitment, alternatives, or what else you need

FMC-150F-HYD-310 hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, flanged connections. Flow rate up to 145 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 BAC-12-150-FLG Volute, cast iron, NPT & flanged (150F models) 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
5 BAC-26-150-P Impeller, Valox, keyway 1
5 BAC-26-150-CI Impeller, cast iron, keyway (optional) 1
5 BAC-26-150-PI Impeller, polypropylene, keyway (optional) 1
6 BAC-7V Seal, carbon/ceramic/Viton (includes O-ring) 1
6 BAC-7SC Seal, silicon carbide/Viton (optional, includes O-ring) 1
6A 40160 O-ring, shaft seal 1
7 BAC-4-150 O-ring, body seal 1
8 BAC-14-150-HYD Mounting frame, cast iron (150F models) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
12 BAC-37 Ball bearing, sealed, BAC-6 shaft 2
13 BAC-32 Snap ring, external, BAC-6 shaft 2
14 BAC-32-S Spacer for BAC-6 shaft 1
15 BACH-25 Key, 1/8" x 1/8" x 1/2" 1
16 BAC-6-HYD-SS Shaft, 5/8" diameter, keyway and tang slot, stainless steel 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-310 Motor, 16 GPM Hydraulic, 1/2 NPT, N Series 1

Repair Kits

Kit No. Description
RK-FMC-150 Repair Kit Assembly
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -310 motor can differ, so call us to confirm those parts.

Parts per Ace Pump Corporation product sheet FMC-150F-HYD 03-13 (flanged 220 x 200 / 1-1/2" x 1-1/4" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

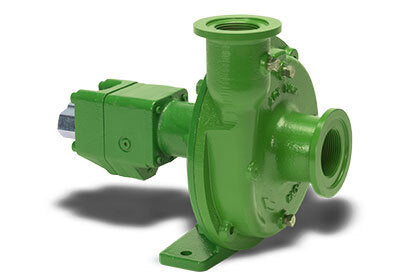

The photo shows the FMC-150F-HYD-304. The FMC-150F-HYD-310 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

The image gallery includes a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
