FMC-200-HYD-300-LM-CI — Pump Less Motor, Hydraulic Drive, 2" x 1.5"
FMC-200-HYD-300-LM-CI — Pump Less Motor, Hydraulic Drive, 2" x 1.5"
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMC-200-HYD-300-LM-CI hydraulic-driven centrifugal pump, 2" x 1.5" ports, cast iron impeller, sold less hydraulic motor. Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: cast iron impeller. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | 7AC-14-CCW | Volute, 2" x 1-1/2" | 1 |
| 3 | BAC-23-A | Nut, 3/8" NF, cad plated | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS (optional) | 1 |
| 4 | BAC-24-HYD-SS | Washer, 3/8" star, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof (optional) | 1 |
| 5 | BAC-26-200-P | Impeller, with extended keyway, thermoplastic | 1 |
| 5 | BAC-26-200-CI | Impeller, with extended keyway, cast iron (optional) | 1 |
| 5 | BAC-26-200-SS | Impeller, with extended keyway, 316 stainless steel (optional) | 1 |
| 6 | BAC-4A | O-ring, body seal | 1 |
| 7 | BAC-7V | Seal, mechanical, Viton (includes 40160 "O" Ring) | 1 |
| 7 | BAC-7SC | Seal, mechanical, silicon carbide (includes 40160 "O" Ring) (optional) | 1 |
| 7A | 40160 | O-ring, shaft seal | 1 |
| 8 | BAC-14-HYD-300A | Mounting frame (for -300A series hydraulic motor) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | 41330 | Cap screw, 5/16" N.C. x 3/4" hex head, motor to pump | 4 |
| 11 | BAC-54 | Slinger | 1 |
| 12 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 13 | BAC-37 | Ball Bearing, sealed, BAC-6 shaft | 2 |
| 14 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 15 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 16 | BAC-25 | Key, 1/8" x 1/8" x 13/16", extended keyway | 1 |
| 17 | BAC-6-HYD-200-SS | Shaft, extended keyway, tang, stainless steel | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMC | Repair Kit Assembly |
This model is supplied less hydraulic motor; motor parts are not listed.
Parts per Ace Pump Corporation product sheet FMC-200-HYD-304 (rev 04/13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads
The photo shows the FMC-200-HYD-304. The FMC-200-HYD-300-LM-CI is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

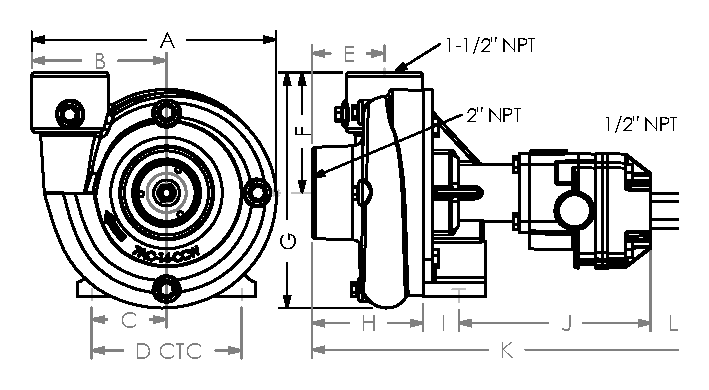

The image gallery includes a dimension drawing for mounting. Click any image to zoom.
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- FMC pump repair kit — installation instructions (PDF)
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
