FMC-200F-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM, SC

FMC-200F-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM, SC

$2,169.00 USD
$3,615.00 USD $2,169.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-200F-HYD-304-PWM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-200F-HYD-304-PWM — Pump, Hydraulic, 300 x 220 Flange, PWM, SC” — fitment, alternatives, or what else you need

FMC-200F-HYD-304-PWM hydraulic-driven centrifugal pump, 300 x 220 flange ports, proportional (PWM) hydraulic flow control compatible. Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 7AC-14-FLG Volute, 300 standard flange x 220 full port flange 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
3 BAC-23-B-SS Nut, 3/8" NF, SS (optional) 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
4 BAC-24-B-SS Washer, 3/8" SS, vibration proof (optional) 1
5 BAC-26-200-P Impeller, with extended keyway, thermoplastic 1
5 BAC-26-200-CI Impeller, with extended keyway, cast iron (optional) 1
5 BAC-26-200-SS Impeller, with extended keyway, 316 stainless steel (optional) 1
6 BAC-4A O-ring, body seal 1
7 BAC-7V Seal, mechanical, Viton (includes 40160 "O" Ring) 1
7 BAC-7SC Seal, mechanical, silicon carbide (includes 40160 "O" Ring) (optional) 1
7A 40160 O-ring, shaft seal 1
8 BAC-14-HYD-300A Mounting frame (for 300 Series hydraulic motor) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 41330 Cap screw, 5/16" N.C. x 3/4" hex head, motor to pump 4
11 BAC-54 Slinger 1
12 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
13 BAC-37 Ball Bearing, sealed, BAC-6 shaft 2
14 BAC-32 Snap ring, external, BAC-6 shaft 2
15 BAC-32-S Spacer for BAC-6 shaft 1
16 BAC-25 Key, 1/8" x 1/8" x 13/16", extended keyway 1
17 BAC-6-HYD-200-SS Shaft, extended keyway, tang, stainless steel 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-304-PWM Motor, 11 GPM Hydraulic, With PWM Valve 1

Repair Kits

Kit No. Description
RK-FMC Repair Kit Assembly
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -304-PWM motor can differ, so call us to confirm those parts.

Parts per Ace Pump Corporation product sheet FMC-200F-HYD-304 (rev 04/13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The photo shows the FMC-200F-HYD-304. The FMC-200F-HYD-304-PWM is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

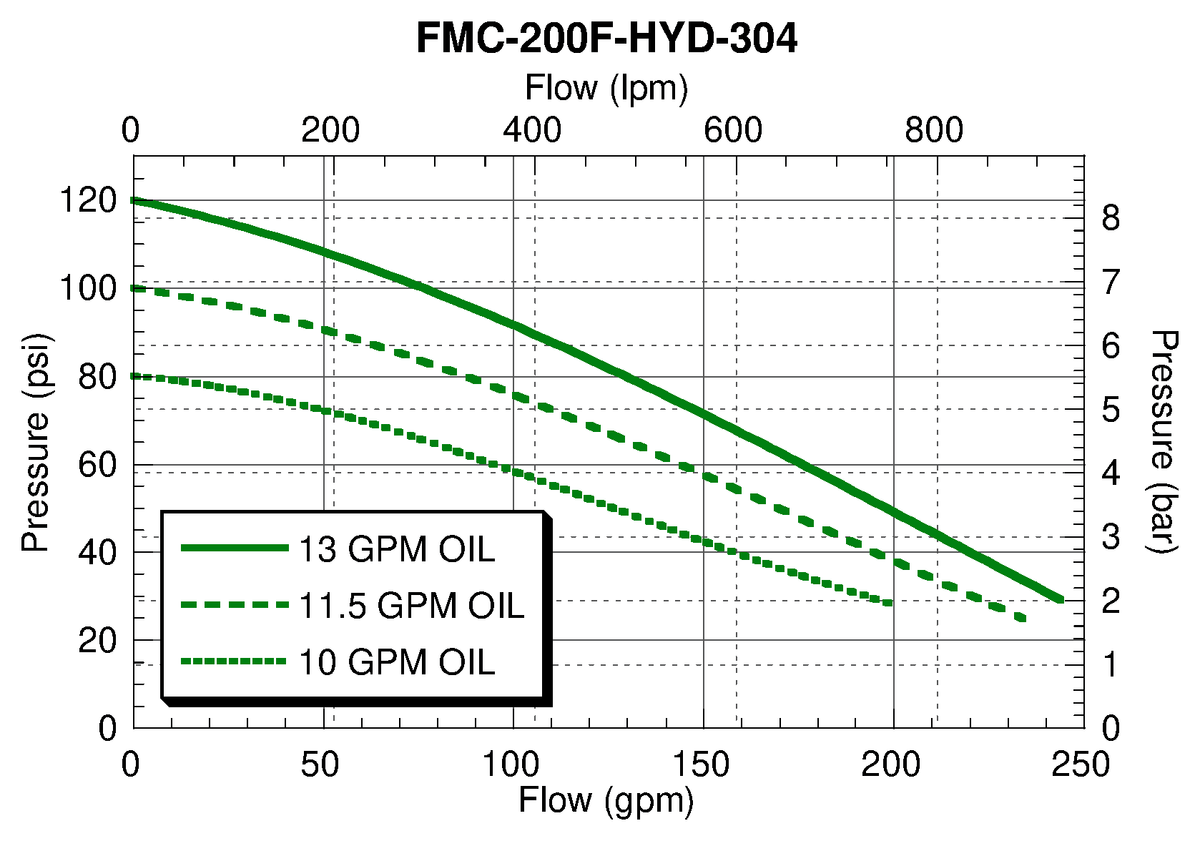

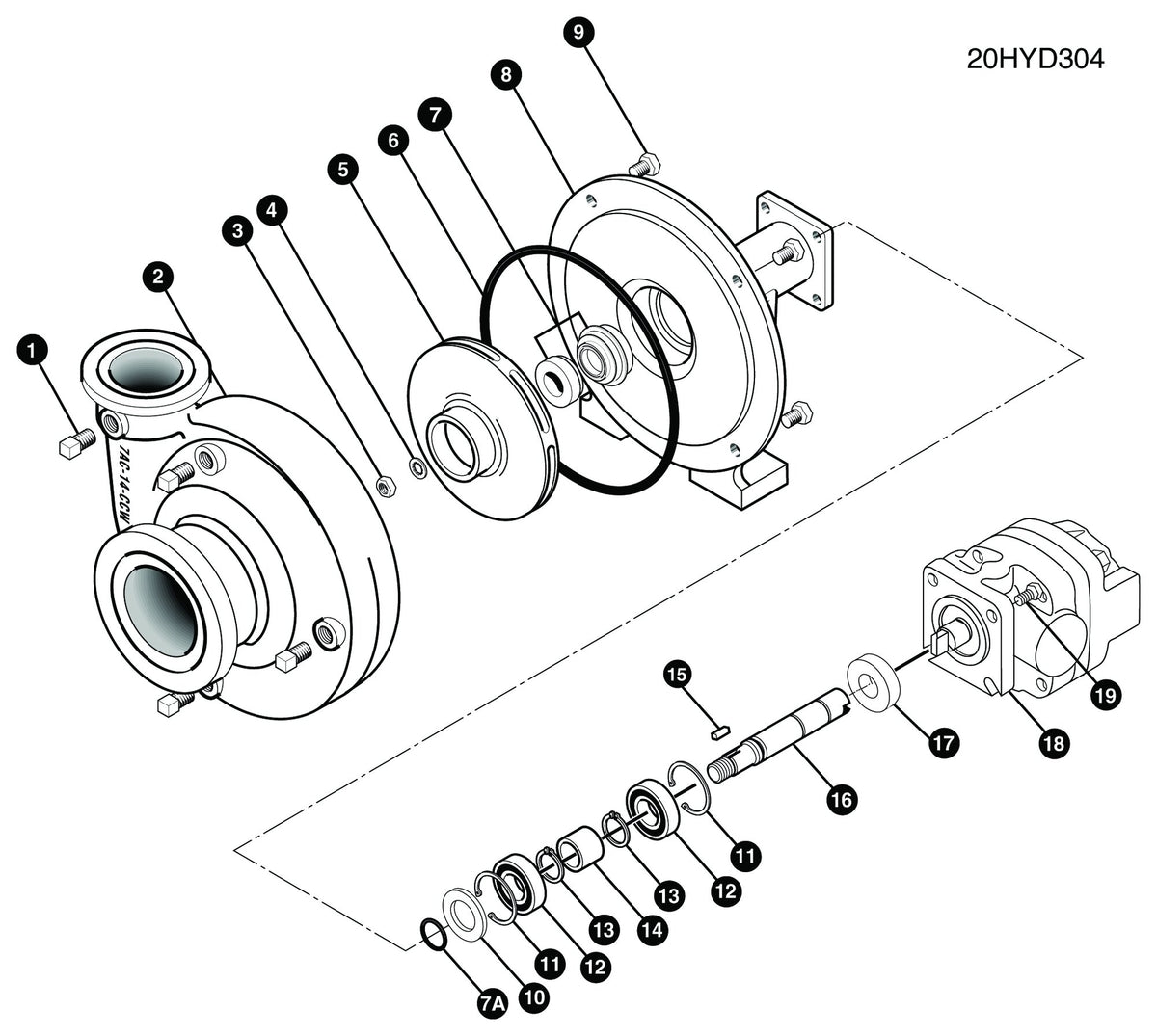

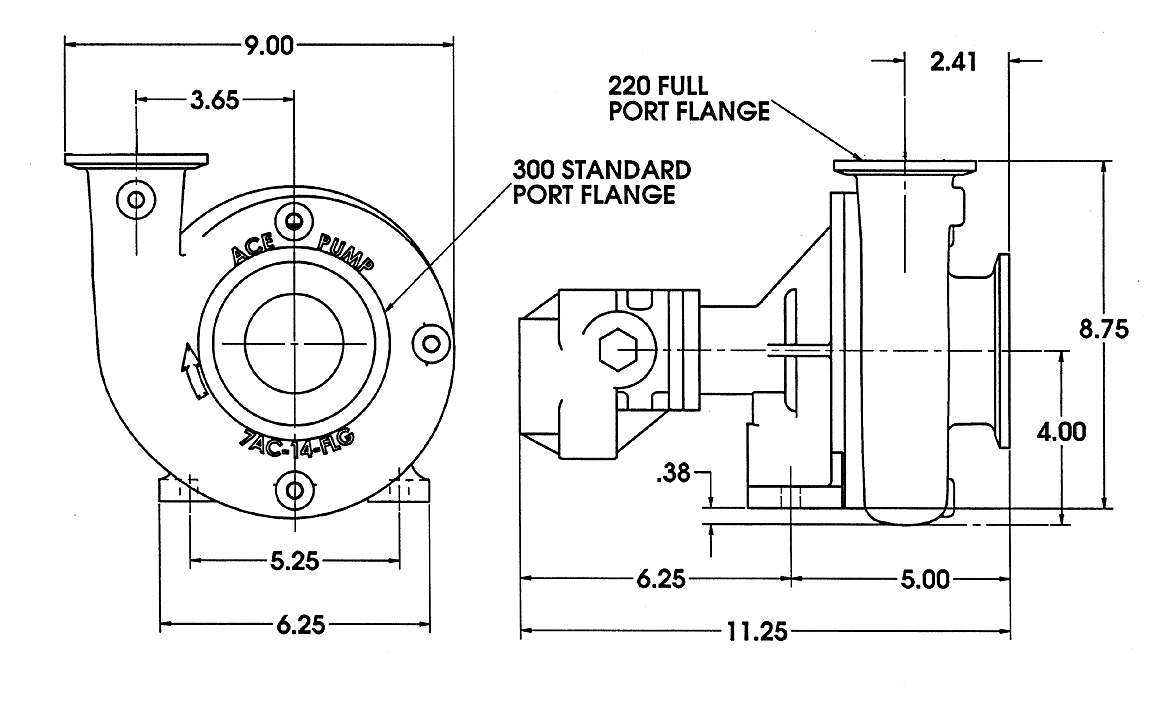

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
