• Ace FMC-200F-HYD-304 centrifugal pump
1 1

Ace Pumps

FMC-200F-HYD-310-SS — Pump, Hydraulic Drive, 300 x 220 Flange

FMC-200F-HYD-310-SS — Pump, Hydraulic Drive, 300 x 220 Flange

$1,428.00 USD
$2,380.00 USD $1,428.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-200F-HYD-310-SS — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-200F-HYD-310-SS — Pump, Hydraulic Drive, 300 x 220 Flange” — fitment, alternatives, or what else you need

FMC-200F-HYD-310-SS hydraulic-driven centrifugal pump, 300 x 220 flange ports, stainless steel construction. Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Build options on this model: stainless steel construction/hardware. Where the list shows standard and optional versions of a part, order the one that matches these options.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 7AC-14-FLG Volute, 300 standard flange x 220 full port flange 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
3 BAC-23-B-SS Nut, 3/8" NF, SS (optional) 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
4 BAC-24-B-SS Washer, 3/8" SS, vibration proof (optional) 1
5 BAC-26-200-P Impeller, with extended keyway, thermoplastic 1
5 BAC-26-200-CI Impeller, with extended keyway, cast iron (optional) 1
5 BAC-26-200-SS Impeller, with extended keyway, 316 stainless steel (optional) 1
6 BAC-4A O-ring, body seal 1
7 BAC-7V Seal, mechanical, Viton (includes 40160 "O" Ring) 1
7 BAC-7SC Seal, mechanical, silicon carbide (includes 40160 "O" Ring) (optional) 1
7A 40160 O-ring, shaft seal 1
8 BAC-14-HYD-300A Mounting frame (for 300 Series hydraulic motor) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 41330 Cap screw, 5/16" N.C. x 3/4" hex head, motor to pump 4
11 BAC-54 Slinger 1
12 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
13 BAC-37 Ball Bearing, sealed, BAC-6 shaft 2
14 BAC-32 Snap ring, external, BAC-6 shaft 2
15 BAC-32-S Spacer for BAC-6 shaft 1
16 BAC-25 Key, 1/8" x 1/8" x 13/16", extended keyway 1
17 BAC-6-HYD-200-SS Shaft, extended keyway, tang, stainless steel 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-310 Motor, 16 GPM Hydraulic, 1/2 NPT, N Series 1

Repair Kits

Kit No. Description
RK-FMC Repair Kit Assembly
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -310 motor can differ, so call us to confirm those parts.

Parts per Ace Pump Corporation product sheet FMC-200F-HYD-304 (rev 04/13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

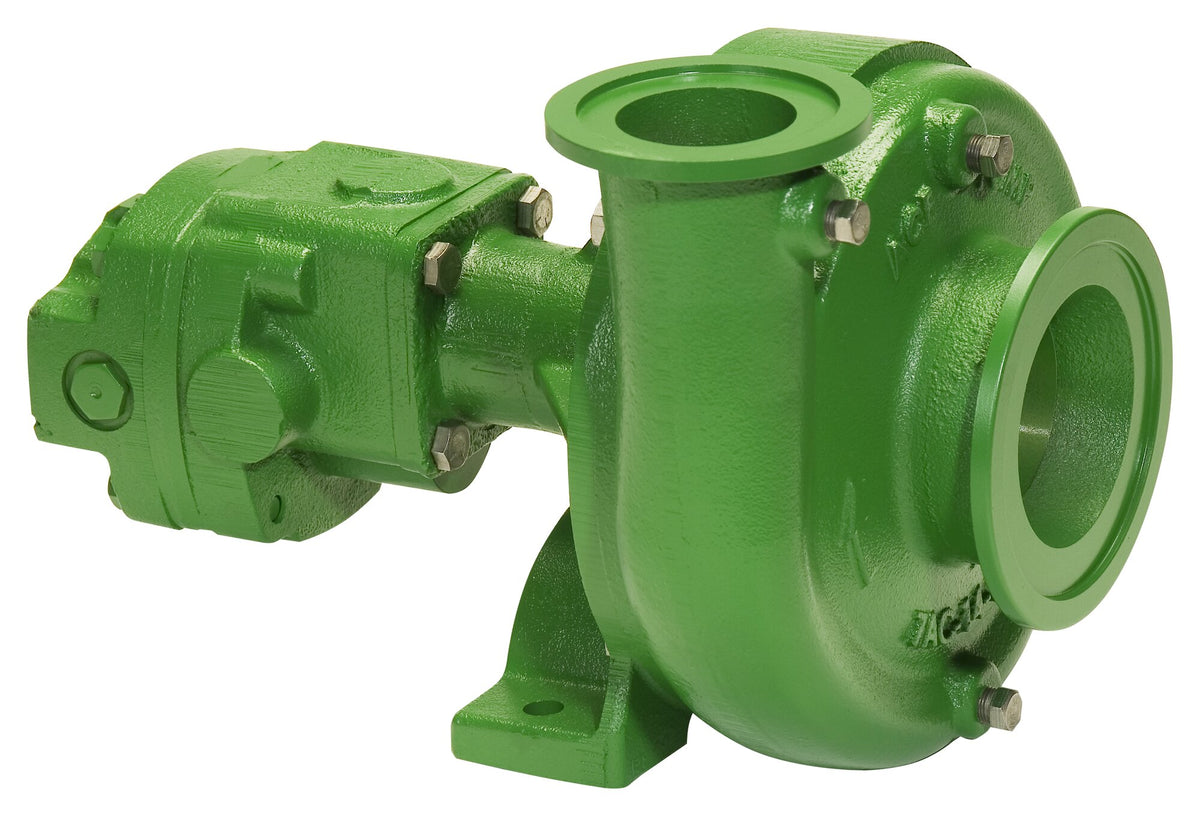

The photo shows the FMC-200F-HYD-304. The FMC-200F-HYD-310-SS is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
