FMC-650F-HYD-LM — Pump, Hydraulic, 220x200x6.5", Less Motor

FMC-650F-HYD-LM — Pump, Hydraulic, 220x200x6.5", Less Motor

$1,254.60 USD
$2,091.00 USD $1,254.60 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-650F-HYD-LM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-650F-HYD-LM — Pump, Hydraulic, 220x200x6.5", Less Motor” — fitment, alternatives, or what else you need

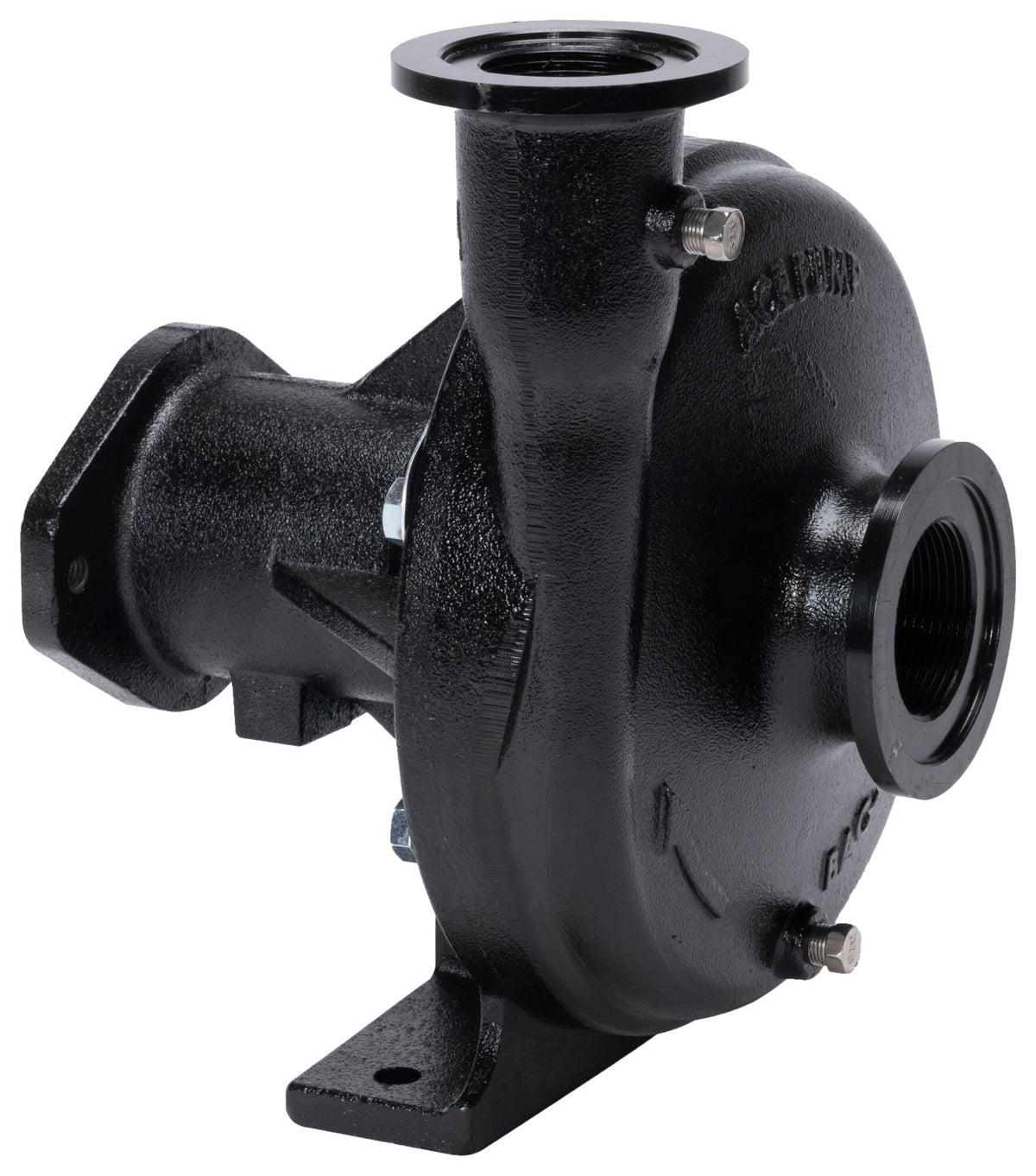

FMC-650F-HYD-LM hydraulic-driven centrifugal pump, 220 x 200 flange ports, sold less hydraulic motor. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT, hex head 3
1 41120 Pipe plug, 1/8" NPT, hex head, stainless steel (optional) 3
2 BAC-12-650-FLG Volute, NPT & 220 flange x NPT & 200 flange (F model) 1
3 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
4 30029 Washer, 3/8" O.D., sealing, stainless steel 1
5 BAC-26-650 Impeller, cast iron, e-coated 1
5 BAC-26-650-SS Impeller, stainless steel (optional) 1
6 BAC-7-650 Seal, carbon/ceramic/Viton, 3/4" 1
6 BAC-7SC-650 Seal, silicon carbide/Viton, 3/4" (optional) 1
6 BAC-7-650B Seal, carbon/ceramic/Buna N, 3/4" (for aqua ammonia) 1
7 BAC-4-150 O-ring, volute seal 1
8 BAC-14-650-HYD Mounting frame, cast iron, e-coated 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 8
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 8
10 BAC-54-650 Slinger, 1.5" OD x 7/8" ID 1
11 41943 Snap ring, internal, mounting frame 2
12 40875 Bearing, FMC-650 models 2
13 BAC-6-650-HYD-SS Shaft, 1.13" dia., 11T female spline, stainless steel 1
14 41085 Key, .188 x .188 x .875, FMC-650 models 1

Repair Kits

Kit No. Description
RK-FMC-650 Repair Kit Assembly

This model is supplied less hydraulic motor; motor parts are not listed.

Parts per Ace Pump Corporation product sheet FMC-650F-HYD / FMC-650FS-HYD (rev 12/16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
