FMC-650FS-HYD-CD — Pump, Hydraulic, 220x200 Flanged, 316 Stainless Steel
FMC-650FS-HYD-CD — Pump, Hydraulic, 220x200 Flanged, 316 Stainless Steel
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMC-650FS-HYD-CD hydraulic-driven centrifugal pump, 220 x 200 flange ports, stainless steel construction. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: case-drain hydraulic motor. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT, hex head | 3 |
| 1 | 41120 | Pipe plug, 1/8" NPT, hex head, stainless steel (optional) | 3 |
| 2 | BAC-12-650-FLG-SS | Volute, NPT & 220 x NPT & 200, 316 stainless steel (FS model) | 1 |
| 3 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel | 1 |
| 4 | 30029 | Washer, 3/8" O.D., sealing, stainless steel | 1 |
| 5 | BAC-26-650 | Impeller, cast iron, e-coated | 1 |
| 5 | BAC-26-650-SS | Impeller, stainless steel (optional) | 1 |
| 6 | BAC-7-650 | Seal, carbon/ceramic/Viton, 3/4" | 1 |
| 6 | BAC-7SC-650 | Seal, silicon carbide/Viton, 3/4" (optional) | 1 |
| 6 | BAC-7-650B | Seal, carbon/ceramic/Buna N, 3/4" (for aqua ammonia) | 1 |
| 7 | BAC-4-150 | O-ring, volute seal | 1 |
| 8 | BAC-14-650-HYD | Mounting frame, cast iron, e-coated | 1 |
| 8 | BAC-14-650-HYD-LIN | Mounting frame, cast iron, e-coated, for liner (FS model) | 1 |
| 8a | BAC-16-650-LIN | Liner, 316 stainless steel (FS model) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 8 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 8 |
| 10 | BAC-54-650 | Slinger, 1.5" OD x 7/8" ID | 1 |
| 11 | 41943 | Snap ring, internal, mounting frame | 2 |
| 12 | 40875 | Bearing, FMC-650 models | 2 |
| 13 | BAC-6-650-HYD-SS | Shaft, 1.13" dia., 11T female spline, stainless steel | 1 |
| 14 | 41085 | Key, .188 x .188 x .875, FMC-650 models | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 15 | 43419 | O-ring, flange, M Series (effective 6/15) | 1 |
| 16 | 43414 | Pad, absorbent, M Series (effective 6/15) | 1 |
| 17 | BAC-75-HYD-M16 | Motor, hydraulic, pressure plated gear, 14.5 gpm | 1 |
| 17 | BAC-75-HYD-M16-CD | Motor, pressure plated gear, 14.5 gpm, case drain (optional) | 1 |
| 18 | 42701 | Washer, 3/8" | 2 |
| 19 | 41907 | Cap screw, 3/8" NC x 1", socket head | 2 |
| 20 | 41445 | O-ring, #10 SAE fitting | 2 |
| 21 | 41442 | Reverse check, #10 SAE male x 1/2" NPT female | 1 |
| 22 | 41446 | Body, adapter/restrictor, #10 SAE male x 1/2" NPT female | 1 |
| 23 | 41448 | O-ring, restrictor insert | 1 |
| 24 | 41447 | Restrictor orifice insert, .125 | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMC-650 | Repair Kit Assembly |
| RK-BAC-75-M | Repair Kit Assembly, M Series, Eff. 6/15 |
Parts per Ace Pump Corporation product sheet FMC-650F-HYD / FMC-650FS-HYD (rev 12/16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads
The photo shows the FMC-650FS-HYD. The FMC-650FS-HYD-CD is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

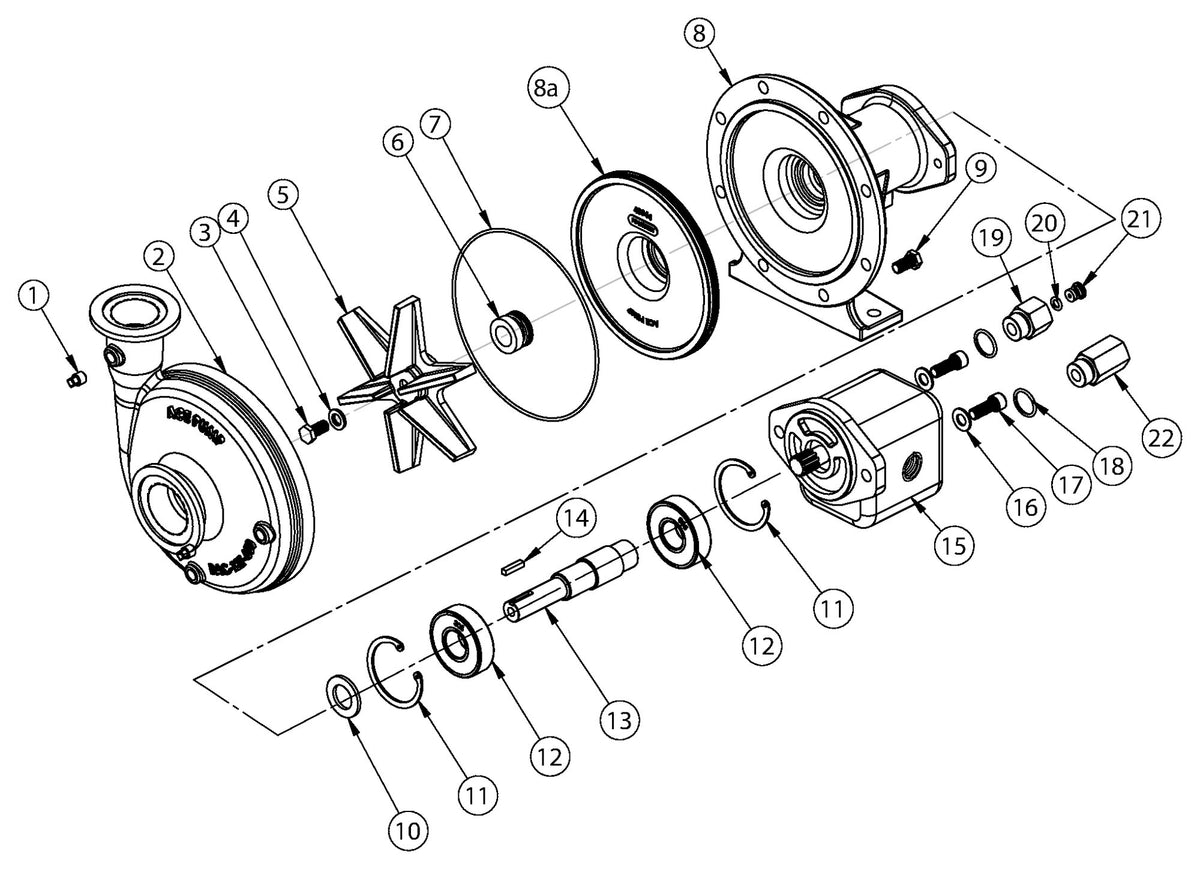

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- FMC-650 repair kit — installation instructions (PDF)
