FMC-650FS-HYD-M22 — Pump, Hydraulic, 220x200 Flanged, 316 Stainless

FMC-650FS-HYD-M22 — Pump, Hydraulic, 220x200 Flanged, 316 Stainless

$2,415.60 USD
$4,026.00 USD $2,415.60 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-650FS-HYD-M22 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-650FS-HYD-M22 — Pump, Hydraulic, 220x200 Flanged, 316 Stainless” — fitment, alternatives, or what else you need

FMC-650FS-HYD-M22 hydraulic-driven centrifugal pump, 220 x 200 flange ports, stainless steel construction. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT, hex head 3
1 41120 Pipe plug, 1/8" NPT, hex head, stainless steel (optional) 3
2 BAC-12-650-FLG-SS Volute, NPT & 220 x NPT & 200, 316 stainless steel (FS model) 1
3 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
4 30029 Washer, 3/8" O.D., sealing, stainless steel 1
5 BAC-26-650 Impeller, cast iron, e-coated 1
5 BAC-26-650-SS Impeller, stainless steel (optional) 1
6 BAC-7-650 Seal, carbon/ceramic/Viton, 3/4" 1
6 BAC-7SC-650 Seal, silicon carbide/Viton, 3/4" (optional) 1
6 BAC-7-650B Seal, carbon/ceramic/Buna N, 3/4" (for aqua ammonia) 1
7 BAC-4-150 O-ring, volute seal 1
8 BAC-14-650-HYD Mounting frame, cast iron, e-coated 1
8 BAC-14-650-HYD-LIN Mounting frame, cast iron, e-coated, for liner (FS model) 1
8a BAC-16-650-LIN Liner, 316 stainless steel (FS model) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 8
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 8
10 BAC-54-650 Slinger, 1.5" OD x 7/8" ID 1
11 41943 Snap ring, internal, mounting frame 2
12 40875 Bearing, FMC-650 models 2
13 BAC-6-650-HYD-SS Shaft, 1.13" dia., 11T female spline, stainless steel 1
14 41085 Key, .188 x .188 x .875, FMC-650 models 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-M22 Motor, Hydraulic, Gear, 18 GPM 1

Repair Kits

Kit No. Description
RK-FMC-650 Repair Kit Assembly
RK-BAC-75-M Repair Kit Assembly, M Series, Eff. 6/15

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -M22 motor can differ, so call us to confirm those parts.

Parts per Ace Pump Corporation product sheet FMC-650F-HYD / FMC-650FS-HYD (rev 12/16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

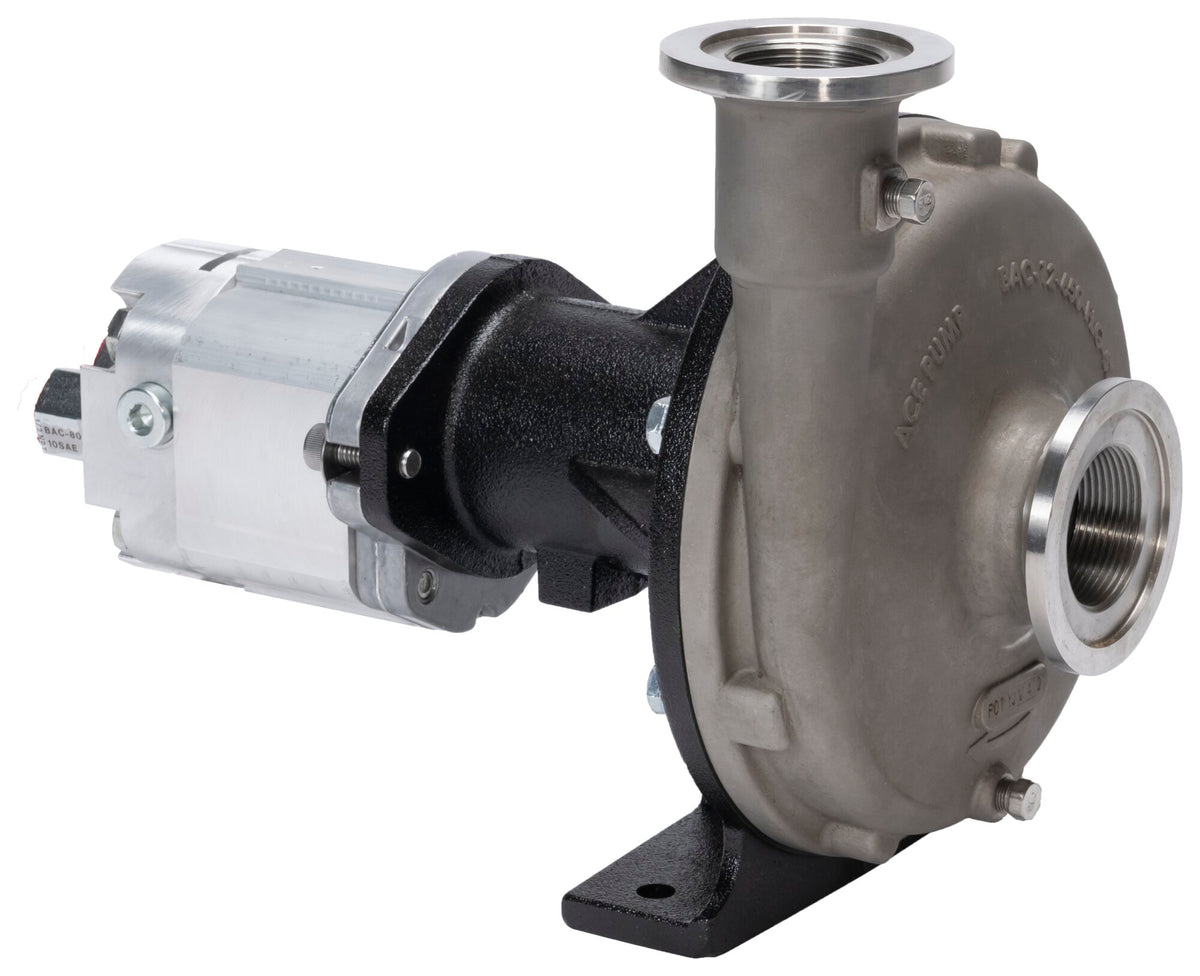

The photo shows the FMC-650FS-HYD. The FMC-650FS-HYD-M22 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

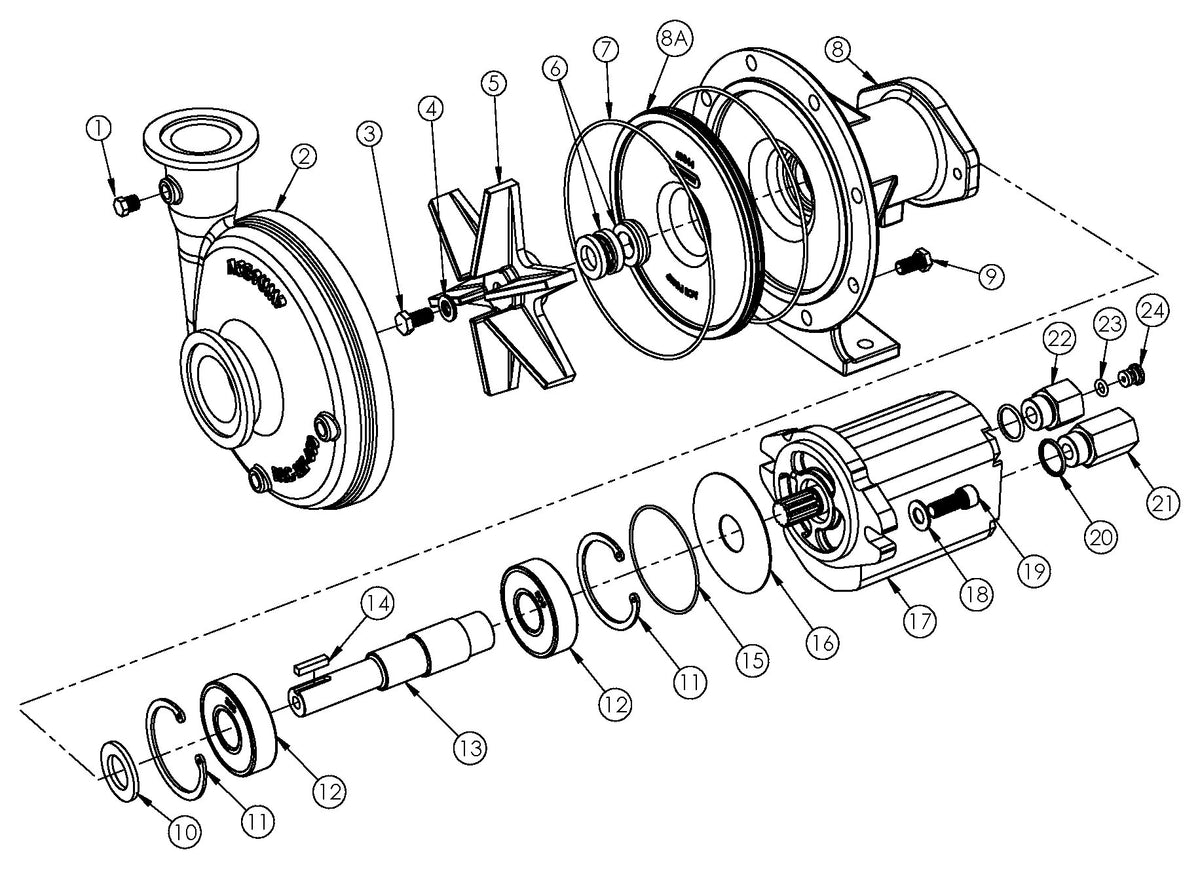

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
