FMC-650FS-HYD-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel
FMC-650FS-HYD-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel
Regular price
$3,376.20 USD
Regular price
$5,627.00 USD
Sale price
$3,376.20 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMC-650FS-HYD-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel” — fitment, alternatives, or what else you need

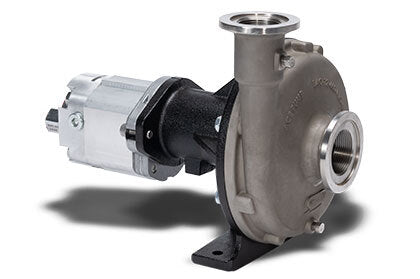

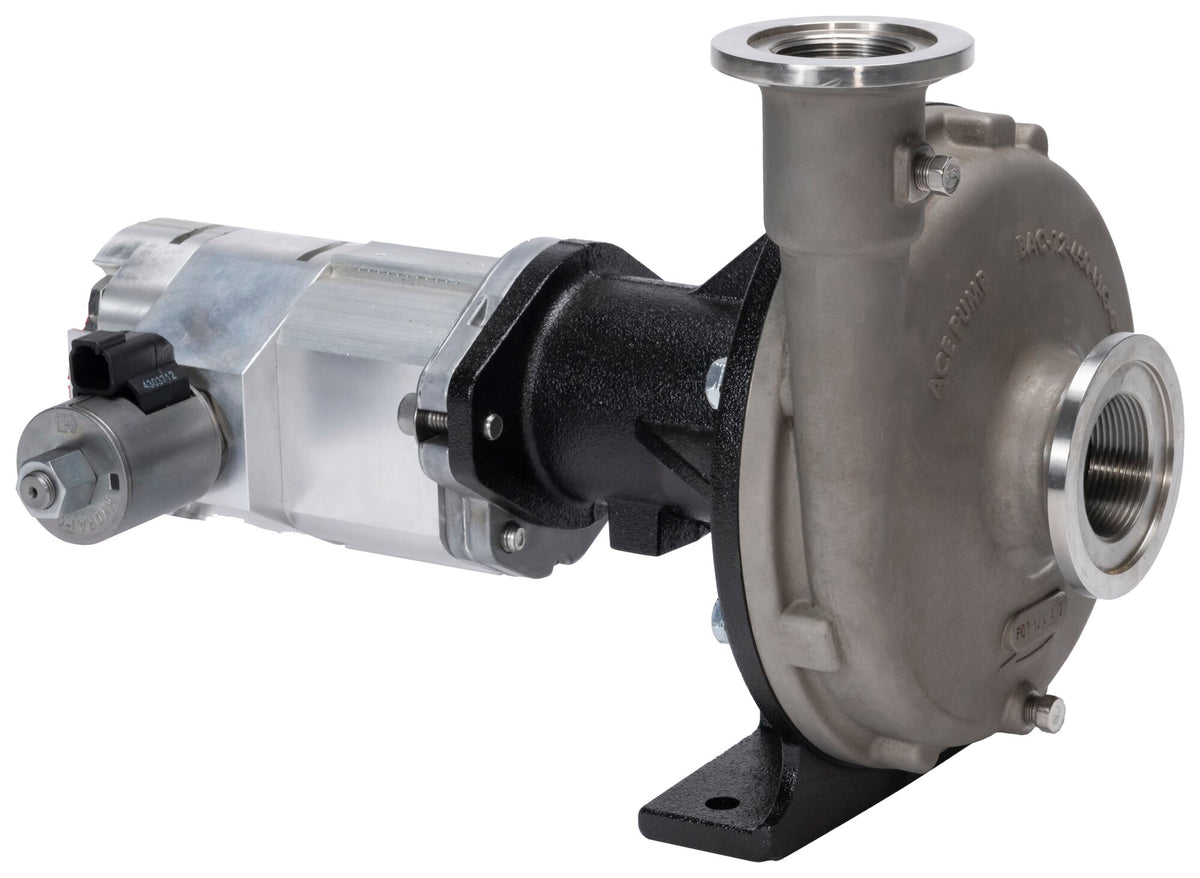

FMC-650FS-HYD-PWM hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT, hex head | 3 |
| 1 | 41120 | Pipe plug stainless (optional FS model) | 3 |
| 2 | BAC-12-650-FLG-SS | Volute, 316 stainless steel (FS model) | 1 |
| 3 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel | 1 |
| 4 | 30029 | Washer, 3/8" O.D., sealing, stainless steel | 1 |
| 5 | BAC-26-650 | Impeller, cast iron, e-coated | 1 |
| 5 | BAC-26-650-SS | Impeller, stainless steel (optional/standard FS) | 1 |
| 6 | BAC-7-650 | Seal, carbon/ceramic/FKM, 3/4" | 1 |
| 6 | BAC-7SC-650 | Seal, silicon carbide/FKM, 3/4" (optional) | 1 |
| 6 | BAC-7-650B | Seal, carbon/ceramic/Buna N, 3/4" (aqua ammonia) | 1 |
| 7 | BAC-4-150 | O-ring, volute seal (2 needed for FS model) | 1 |
| 8 | BAC-14-650-HYD | Mounting frame, cast iron, e-coated | 1 |
| 8 | BAC-14-650-HYD-LIN | Mounting frame for liner, cast iron (FS model) | 1 |
| 8a | BAC-16-650-LIN | Liner, 316 stainless steel (FS model) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 8 |
| 9 | 40930 | Cap screw stainless (optional FS model) | 8 |
| 10 | BAC-54-650 | Slinger, 1.5" OD x 7/8" ID | 1 |
| 11 | 41943 | Snap ring, internal, mounting frame | 2 |
| 12 | 40875 | Bearing, FMC-650 models | 2 |
| 13 | BAC-6-650-HYD-SS | Shaft, 1.13" dia., 11T female spline, stainless steel | 1 |
| 14 | 41085 | Key, .188 x .188 x .875, FMC-650 models | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 15 | 43419 | O-ring, flange, M Series | 1 |
| 16 | 43414 | Pad, absorbent, M Series | 1 |
| 17 | BAC-75-HYD-M16-PWM | Motor, hydraulic, pressure plated gear, 14.5 gpm | 1 |
| 18 | 42701 | Washer, 3/8" | 2 |
| 19 | 41907 | Cap screw, 3/8" NC x 1", socket head | 2 |
| 20 | 41445 | O-ring, #10 SAE fitting | 2 |
| 21 | BAC-78-10X10SAE | Reverse check, #10 SAE male x #10 SAE female | 1 |
| M1 | 43416 | Installation tool, shaft seal | 1 |
| M2 | 43414 | Absorbent pad | 1 |
| M3 | 43419 | O-ring, flange | 1 |
| M4 | 43418 | Drive plate assembly, flange, M motors | 1 |
| M5 | 43420 | Pin, motor assembly | 6 |
| M6 | 43425 | Housing seal, front external | 1 |
| M7 | 43430 | Anti-extrusion seal, M motors | 2 |
| M8 | 43435 | Compensation seal, M motors | 2 |
| M9 | 43440 | Housing seal, rear external | 2 |
| M10 | PWM-18-PRO-18 | Valve assembly, 12V proportional | 1 |
| M11 | 41850 | O-ring, housing seal | 1 |
| M12 | 43445 | Cap, coasting check | 1 |
| M13 | 43450 | O-ring, coasting check cap | 1 |
| M14 | 43455 | Spring, coasting check | 1 |
| M15 | 43460 | Ball, coasting check | 1 |
| M16 | 43465 | End plate, cover, #10 SAE end ports | 1 |
| M17 | 43477 | Cap screw, motor assembly, hex head, M16-PWM | 4 |
| M18 | 74229 | Coil, 12V for PWM-18-PRO-18 | 1 |
| M19 | 74233 | Nut, coil attachement, PWM-18-PRO-18 | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMC-650 | Repair Kit Assembly |
| RK-BAC-75-M | Repair Kit Assembly, M Series, Eff. 6/15 |
Parts per Ace Pump Corporation product sheet FMC-650F-HYD-PWM / FMC-650FS-HYD-PWM. Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads
The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- Ace PWM technical file — PWM valve wiring and setup (PDF)
- FMC-650 repair kit — installation instructions (PDF)
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
