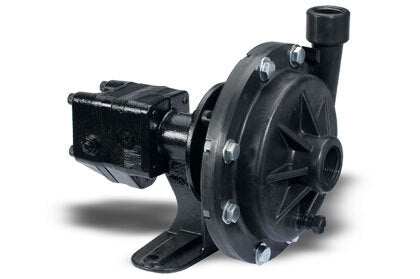

• Ace FMC-75-HYD-204 hydraulic driven centrifugal pump, 1" x 3/4"
  • Ace FMC-75-HYD-204 centrifugal pump
  • Ace FMC-75-HYD-204 performance curve — pressure (psi) vs. flow (gpm)
  • Ace FMC-75-HYD dimension drawing
  • Ace FMC-75-HYD exploded parts view
1 5

Ace Pumps

FMC-75-HYD-204 — Pump, Hydraulic Drive, 1" x 3/4"

FMC-75-HYD-204 — Pump, Hydraulic Drive, 1" x 3/4"

$835.80 USD
$1,393.00 USD $835.80 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-75-HYD-204 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-75-HYD-204 — Pump, Hydraulic Drive, 1" x 3/4"” — fitment, alternatives, or what else you need

FMC-75-HYD-204 hydraulic-driven centrifugal pump, 1" x 3/4" ports. Flow rate up to 27 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53-P Pipe plug, 1/8" NPT, plastic 1
2 80250 Cap screw, 3/8"-16 x 7/8", hex head 8
3 42701 Washer, 3/8" flat 8
4 GE-12-75 Volute, 3/4" x 1", polypropylene 1
5 42240 Cap screw, 1/4"-28 x 1", hex, stainless steel 1
6 30028 Washer, sealing 5
7 GE-26-75 Impeller, with keyway, polypropylene 1
8 42238 Cap screw, 5/16"NF x 2-1/4" 4
9 BAC-7-75V Seal, 5/8", Viton®/carbon/ceramic 1
9 BAC-7SC-75V Seal, 5/8", Viton®/silicon carbide (optional) 1
9A 40159 "O" Ring, seal seat 1
10 40017 "O" Ring, volute seal 1
11 GE-14-75 Bracket, polypropylene 1
12 BAC-45 Nut, hex, 3/8" 8
13 BAC-14-75-HYD Mounting frame (204R, 206R hydraulic motor) 1
14 BAC-54 Slinger 1
15 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
16 BAC-37 Bearing, BAC-6 driven shaft 2
17 BAC-32 Snap ring, external, BAC-6 driven shaft 2
18 BAC-32-S Spacer for BAC-6 shaft 1
19 41082 Key, 3/16" x 3/16" x 15/16" 1
20 BAC-6-75-HYD-SS Shaft, 5/8" driven shaft with tang slot, stainless steel 1

Hydraulic Motor

Ref. Part No. Description Qty
21 S200 Seal support spacer for 200 series hydraulic lip seal 1
22 BAC-75-HYD-204R Hydraulic motor, 4 GPM 1
23 41253 Cap screw, 5/16" NC x 3 1/2" socket head (204 motor) 4
24 41875 O-ring, #8 SAE fitting 2
25 BAC-78-8SAE Reverse check assembly, #8 SAE male x 1/2" NPT female 1
26 BAC-80-8SAE Body, restrictor orifice, #8 SAE male x 1/2" NPT female 1
27 41448 O-ring, orifice insert 1
28 BAC-79-5 Orifice, restrictor insert, .078 (204) 1
29 LS-204N Flow limiting valve (204), #8 SAE male x 1/2" NPT female 1

Repair Kits

Kit No. Description
RK-GE-75 Repair Kit Assembly, GE-75
RK-GESC-75 Repair Kit Assembly, GE-75, Silicon Carbide
RK-BAC-75-HYD-L Repair Kit Assembly, 200 Series Hydraulic Motor

Parts per Ace Pump Corporation product sheet FMC-75-HYD 04-14 (1" NPT x 3/4" NPT, polypropylene). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
