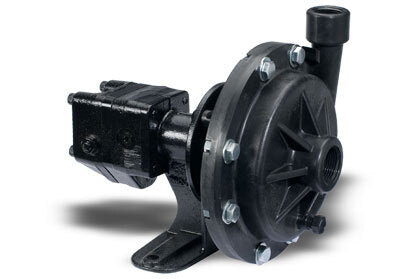

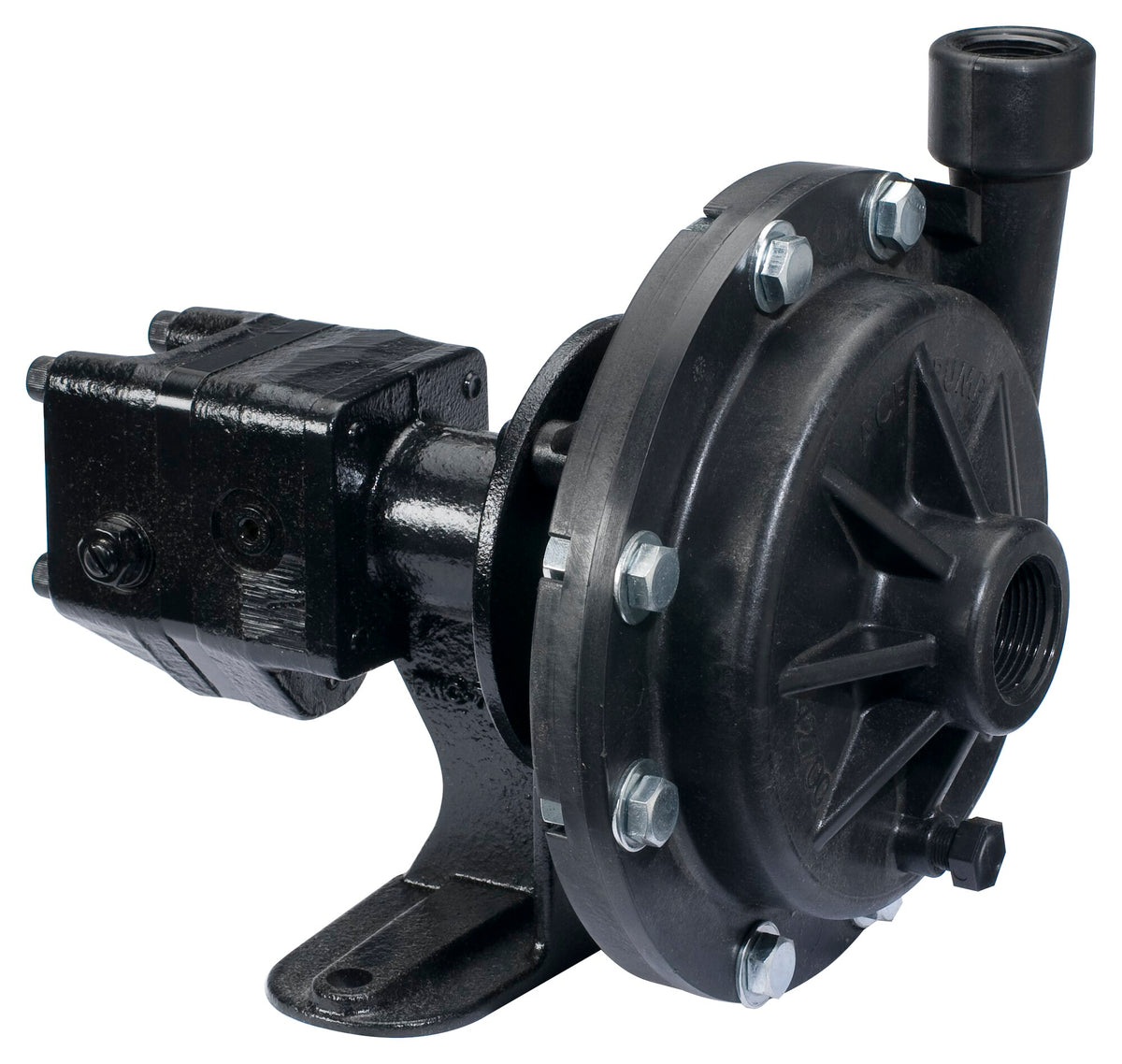

    The FMC-75-HYD-206 is a Ace hydraulic motor driven centrifugal pump — polypropylene volute and impeller, 7 GPM hydraulic motor, rated at 100 psi maximum shutoff.

    Specifications

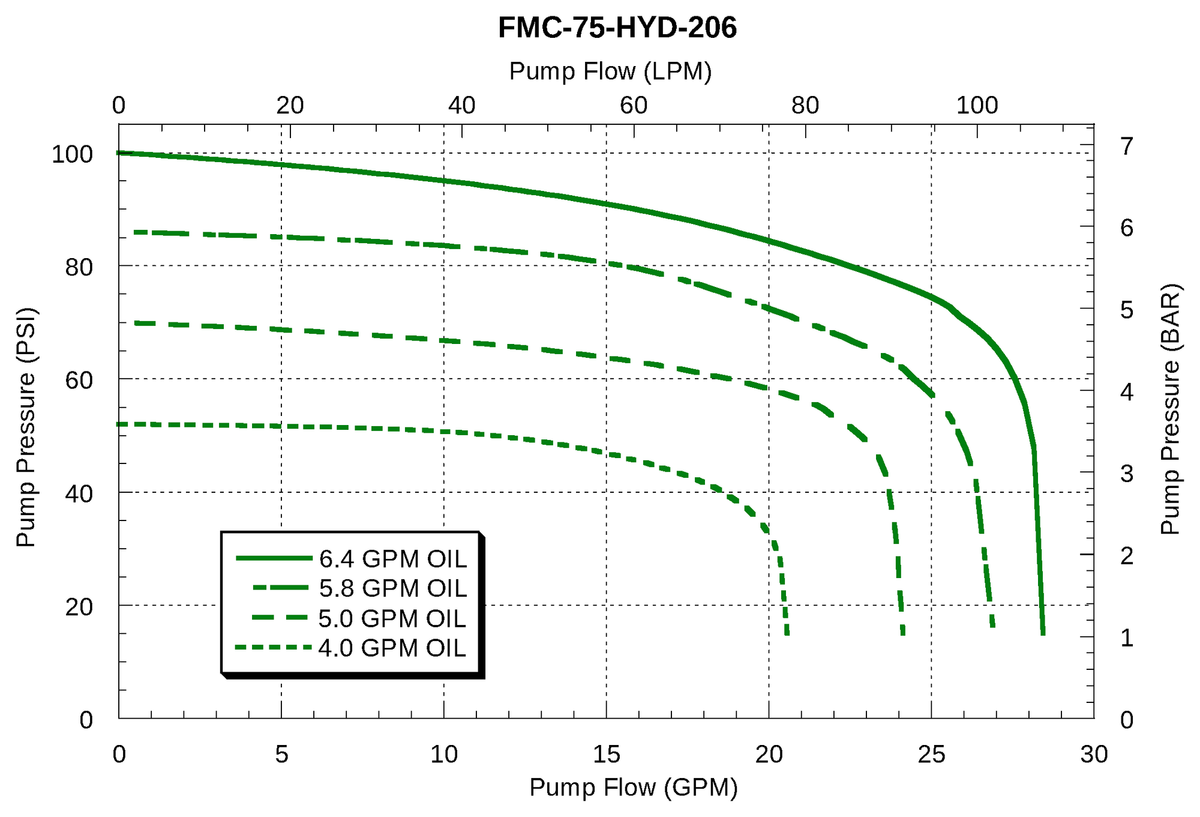

    Max shutoff pressure 100 psi (6.9 bar)

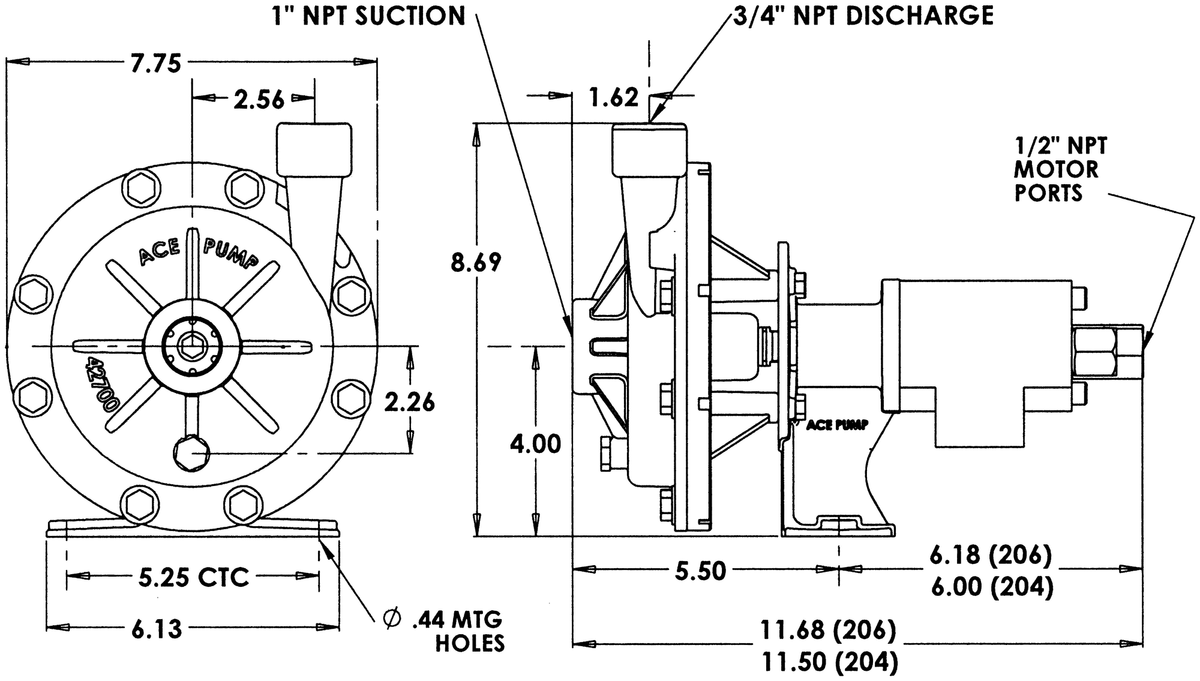

    Suction 1" NPT
    Discharge 3/4" NPT
    Max fluid temperature 140 F (60 C)
    Hydraulic motor 7 GPM (26.75 l/min), 206R
    Seal Viton carbon/ceramic (standard)
    Construction Polypropylene volute, impeller and bracket

    Service Parts

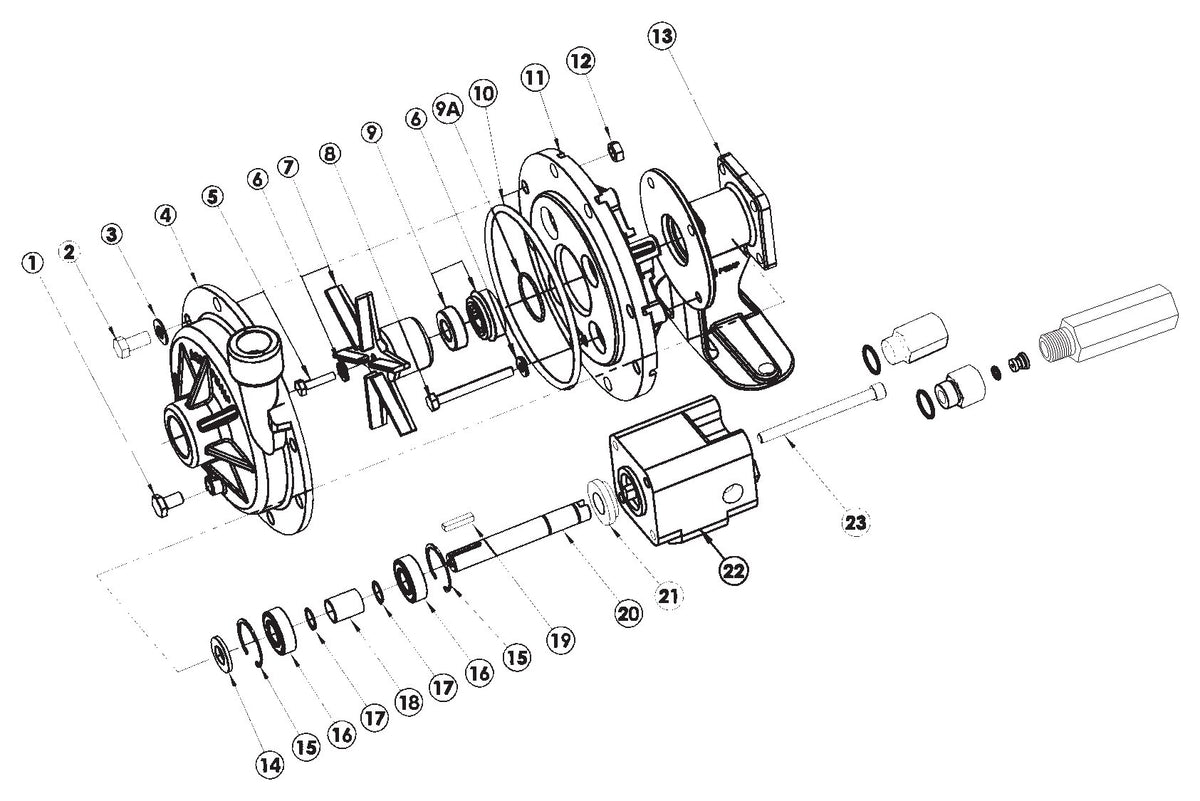

    Ref. Part No. Description Qty
    1 BAC-53-P Pipe plug, 1/8" NPT, plastic 1
    2 80250 Cap screw, 3/8"-16 x 7/8", hex head 8
    3 42701 Washer, 3/8" flat 8
    4 GE-12-75 Volute, 3/4" x 1", polypropylene 1
    5 42240 Cap screw, 1/4"-28 x 1", hex, stainless steel 1
    6 30028 Washer, sealing 5
    7 GE-26-75 Impeller, with keyway, polypropylene 1
    8 42238 Cap screw, 5/16" NF x 2-1/4" 4
    9 BAC-7-75V Seal, 5/8", Viton/carbon/ceramic 1
    9 BAC-7SC-75V Seal, 5/8", Viton/silicon carbide (optional) 1
    9A 40159 O-ring, seal seat 1
    10 40017 O-ring, volute seal 1
    11 GE-14-75 Bracket, polypropylene 1
    12 BAC-45 Nut, hex, 3/8" 8
    13 BAC-14-75-HYD Mounting frame (for BAC-75-HYD-204R / 206R) 1
    14 BAC-54 Slinger 1
    15 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
    16 BAC-37 Bearing, BAC-6 driven shaft 2
    17 BAC-32 Snap ring, external, BAC-6 driven shaft 2
    18 BAC-32-S Spacer for BAC-6 shaft 1
    19 41082 Key, 3/16" x 3/16" x 15/16" 1
    20 BAC-6-75-HYD-SS Shaft, 5/8" driven with tang slot, stainless steel 1
    21 S200 Seal support spacer for 200 series hydraulic lip seal 1
    22 BAC-75-HYD-206R Hydraulic motor, 7 GPM 1
    23 41255 Cap screw, 5/16" NC x 3-3/4" socket head (206 motor) 4
    24 41875 O-ring, #8 SAE fitting 2
    25 BAC-78-8SAE Reverse check assembly, #8 SAE male x 1/2" NPT female 1
    26 BAC-80-8SAE Body, restrictor orifice, #8 SAE male x 1/2" NPT female 1
    27 41448 O-ring, orifice insert 1
    28 BAC-79-7 Orifice, restrictor insert, .109 (206) 1
    29 LS-206N Flow limiting valve (206), #8 SAE x 1/2" NPT 1

    Repair Kits

    Kit No. Description
    RK-GE-75 Repair kit, FMC-75-HYD series
    RK-BAC-75-HYD-L Repair kit, 200 series hydraulic motor with high pressure lip seal

    Parts and specifications per Ace Pump Corporation product sheet FMC-75-HYD 04-14.
