FMC-755FS-HYD-M22 — Pump, Stainless Steel, Hydraulic 18 GPM, Flange

FMC-755FS-HYD-M22 — Pump, Stainless Steel, Hydraulic 18 GPM, Flange

$4,397.40 USD
$7,329.00 USD $4,397.40 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-755FS-HYD-M22 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-755FS-HYD-M22 — Pump, Stainless Steel, Hydraulic 18 GPM, Flange” — fitment, alternatives, or what else you need

FMC-755FS-HYD-M22 hydraulic-driven centrifugal pump, 300 x 220 flange ports, Oasis WetSeal barrier-fluid seal technology. Flow rate up to 290 GPM at 150 PSI (18 GPM hydraulic oil flow required). For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 41120 Pipe plug, 1/8" NPT, SS 4
2 BAC-12-750-SS Volute, 300 X 220 flange, 316 stainless steel 1
3 40397 Acorn nut, 5/8"-11 stainless steel 1
4 ACAL-4 O-ring, volute seal 2
5 BAC-26-750-SS Impeller, 316 stainless steel 1
6 BAC-16-750-SS Seal plate, 316 stainless steel 1
7 41107 Bushing, #8 SAE x 1/4" FNPT, hex head, with o-ring 1
8 41316 Air valve, 1/4" NPT 1
9 BAC-7-750V Dual seal assembly 1
10 41108 Plug, #8 SAE, hex head, with o-ring 1
11 44039 Bushing, #8 SAE x 1/8" FNPT, hex head, with o-ring 1
12 50150 Pressure gauge, 0-60 PSI, 1/8" NPT 1
13 55851 Site gauge, #8 SAE, steel 1
14 42701 Washer, 3/8", volute and motor mount 3
15 BAC-14-750-HYD Mounting frame, cast iron, e-coated 1
16 40952 Cap screw, 3/8" NC x 2-1/2", hex head (volute) 4
17 41907 Cap screw, 3/8" NC x 1", socket head (seal plate, motor mount) 6
18 BAC-54-650 Slinger, 7/8" shaft 1
19 41943 Snap ring, internal, frame 2
20 ACAL-32 Snap ring, external, shaft 2
21 40875 Ball bearing, sealed 2
22 41085 Key, .188 x .188 x .875 1
23 BAC-6-750-HYD-SS-WS Shaft, 11T female spline, stainless steel 1
24 BAC-32-750 Spacer, shaft 1
31 55032 Barrier fluid, quart 1.64

Hydraulic Motor

Ref. Part No. Description Qty
25 43419 O-ring, flange, M Series motor 1
26 43414 Pad, absorbent, M Series motor 1
27 BAC-75-HYD-M22 Hydraulic motor, pressure plated gear type, 18 GPM 1
28 41445 O-ring, #10 SAE fitting 2
29 BAC-78-10SAE Reverse check, #10 SAE male x 1/2" NPT female 1
30 BAC-80-10SAE Body, adapter/restrictor, #10 SAE male x 1/2" NPT female 1

Repair Kits

Kit No. Description
RK-FMC-750 Repair Kit Assembly
RK-BAC-75-M Repair Kit Assembly, M Series, Eff. 6/15

Parts per Ace Pump Corporation product sheet FMC-755FS-HYD (rev 05/18). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

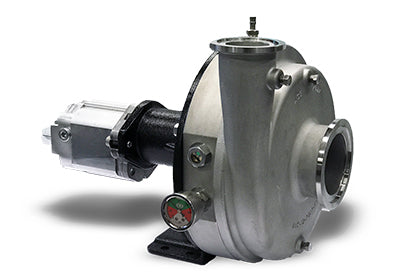

The photo shows the FMC-755FS-HYD. The FMC-755FS-HYD-M22 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

The image gallery includes a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
