FMC-755FS-HYD-M22-PWM — Pump, Hydraulic, 300 x220 Flange, Wet Seal, PWM, Stainless Steel

FMC-755FS-HYD-M22-PWM — Pump, Hydraulic, 300 x220 Flange, Wet Seal, PWM, Stainless Steel

$5,500.80 USD
$9,168.00 USD $5,500.80 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-755FS-HYD-M22-PWM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-755FS-HYD-M22-PWM — Pump, Hydraulic, 300 x220 Flange, Wet Seal, PWM, Stainless Steel” — fitment, alternatives, or what else you need

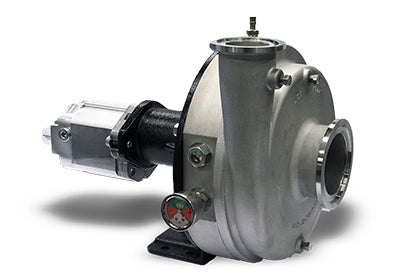

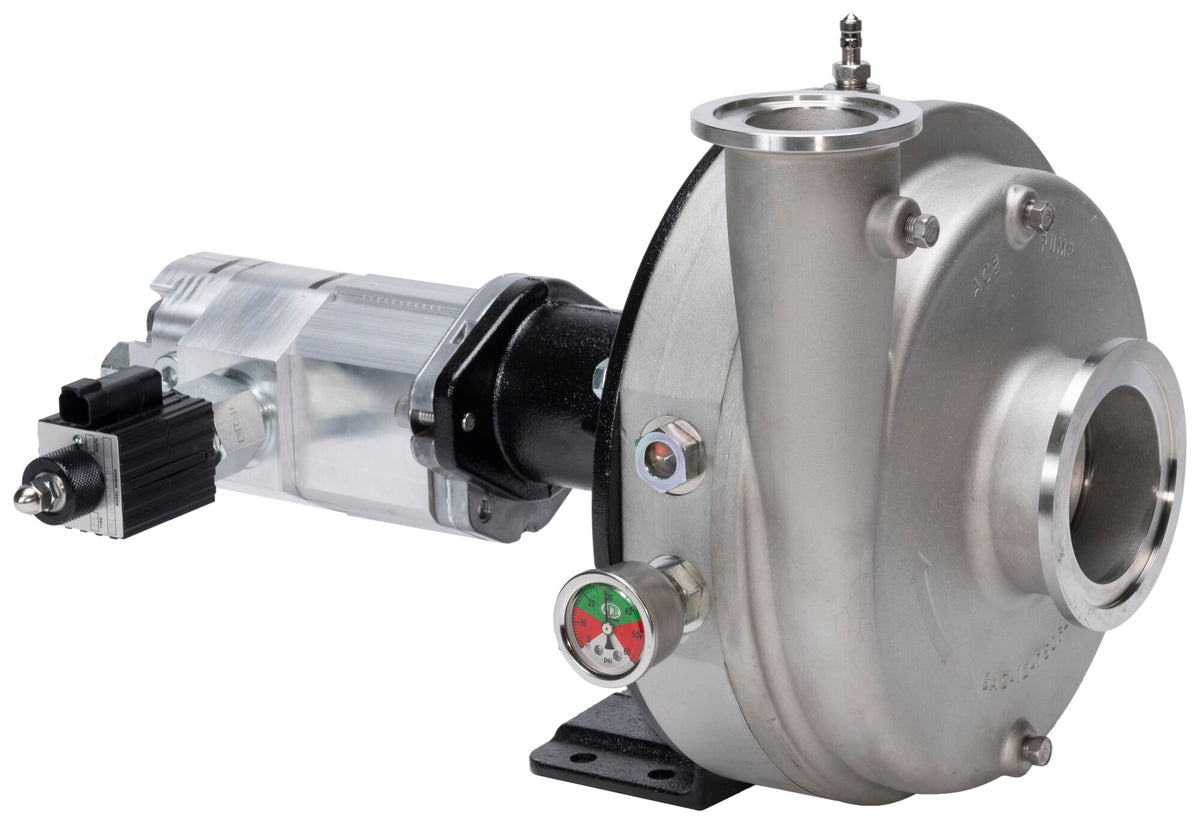

FMC-755FS-HYD-M22-PWM hydraulic-driven centrifugal pump, 300 x 220 flange ports, Oasis WetSeal barrier-fluid seal technology, proportional (PWM) hydraulic flow control compatible. Flow rate up to 290 GPM at 150 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 41120 Pipe plug, 1/8" NPT, SS 4
2 BAC-12-750-SS Volute, 300 X 220 flange, 316 stainless steel 1
3 ACAL-4 O-ring, volute seal 2
4 40397 Acorn nut, 5/8"-11 stainless steel 1
5 BAC-26-750-SS Impeller, 316 stainless steel 1
6 BAC-16-750-SS Seal plate, 316 stainless steel 1
7 41107 Bushing, #8 SAE x 1/4" FNPT, hex head, with o-ring 2
8 41316 Air valve, 1/4" NPT 1
9 BAC-7-750V Dual seal assembly 1
10 41108 Plug, #8 SAE, hex head, with o-ring 1
11 50150 Pressure gauge, 0-60 PSI, 1/8" NPT 1
12 55851 Site gauge, #8 SAE, steel 1
13 42701 Washer, 3/8", volute and motor mount 3
14 BAC-14-750-HYD Mounting frame, cast iron, e-coated 1
15 40952 Cap screw, 3/8" NC x 2-1/2", hex head (volute) 4
16 41907 Cap screw, 3/8" NC x 1", socket head (seal plate, motor mount) 6
17 BAC-54-650 Slinger, 7/8" shaft 1
18 41943 Snap ring, internal, frame 2
19 ACAL-32 Snap ring, external, shaft 2
20 40875 Ball bearing, sealed 2
21 41085 Key, .188 x .188 x .875 1
22 BAC-6-750-HYD-SS-WS Shaft, 11T female spline, stainless steel 1
23 BAC-32-750 Spacer, shaft 1
29 55032 Barrier fluid, quart 1.64

Hydraulic Motor

Ref. Part No. Description Qty
24 43414 Pad, absorbent, M Series motor 1
25 43419 O-ring, flange, M Series motor 1
26 BAC-75-HYD-M22-PWM Hydraulic motor, pressure plated gear type, 18 GPM 1
27 41445 O-ring, #10 SAE fitting 2
28 BAC-78-10X10 SAE Reverse check, #10 SAE male x #10 SAE female 1
M1 43416 Installation tool, shaft seal 1
M2 43414 Absorbent pad 1
M3 43419 O-ring, flange 1
M4 43418 Drive plate assembly, flange, M motors 1
M5 43420 Pin, motor assembly 4
M6 43425 Housing seal, front external 1
M7 43430 Anti-extrusion seal, M motors 2
M8 43435 Compensation seal, M motors 2
M9 43440 Housing seal, rear external 1
M10 PWM-18-PRO-20 Valve assembly, 12V proportional 1
M11 41850 O-ring, housing seal 1
M12 43445 Cap, coasting check 1
M13 43450 O-ring, coasting check cap 1
M14 43455 Spring, coasting check 1
M15 43460 Ball, coasting check 1
M16 43465 End plate, cover, #10 SAE end ports 1
M17 43476 Cap screw, motor assembly, hex head, M22-PWM 4
M18 74228 Coil, 12V for PWM-18-PRO-20 1
M19 74232 Nut, coil attachement, PWM-18-PRO-20 1

Repair Kits

Kit No. Description
RK-FMC-750 Repair Kit Assembly
RK-BAC-75-M Repair Kit Assembly, M Series, Eff. 6/15

Parts per Ace Pump Corporation product sheet FMC-755FS-HYD-M22-PWM. Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

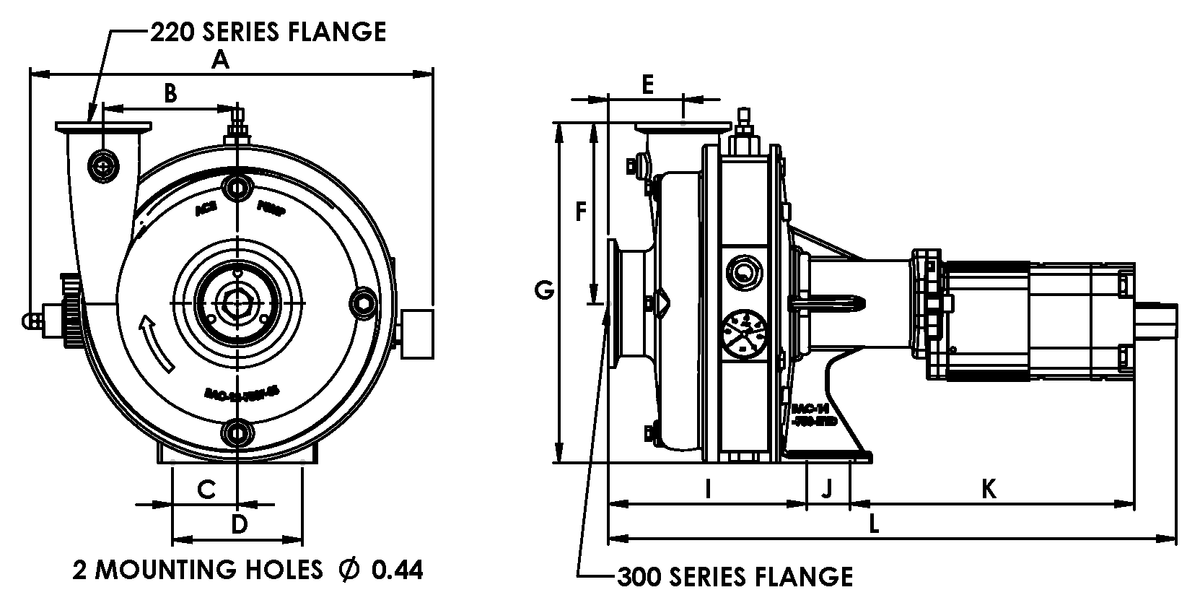

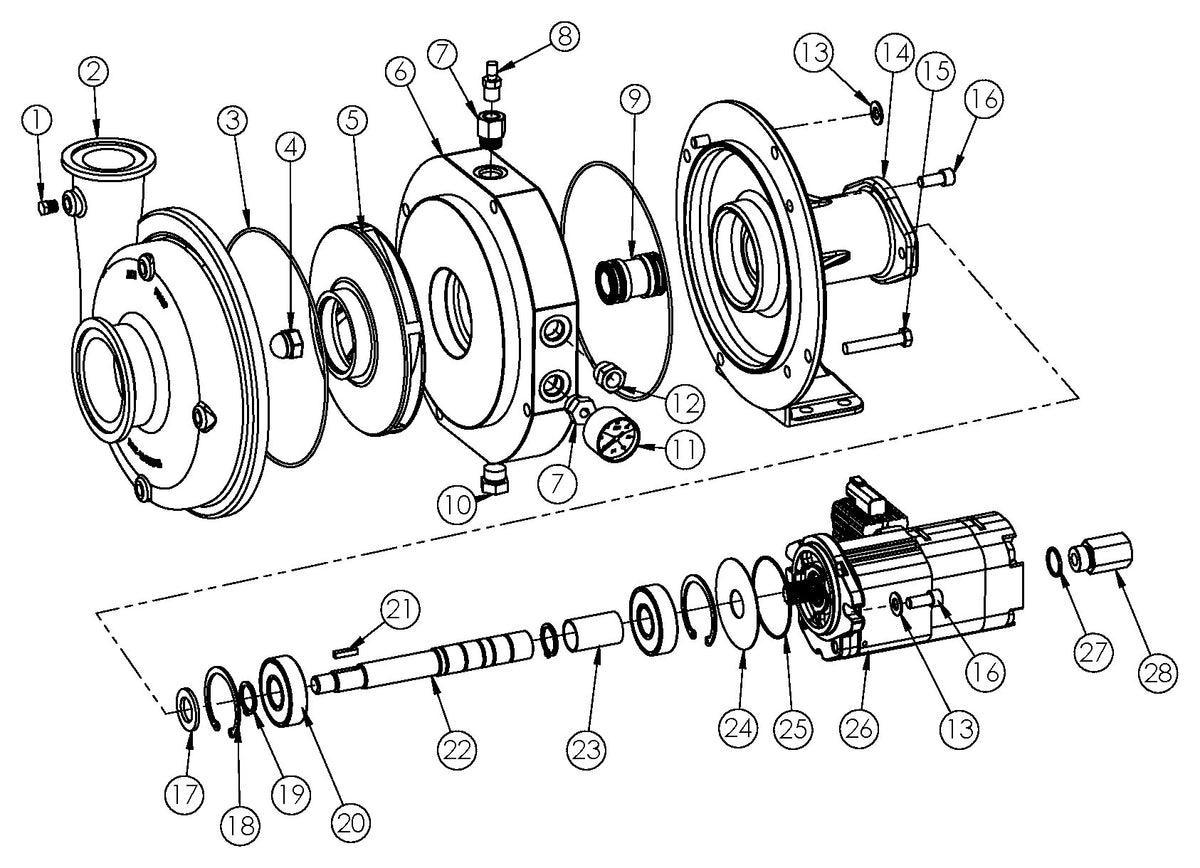

The image gallery includes a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
