FMC-75SP-HYD-206 — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming

FMC-75SP-HYD-206 — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming

$870.00 USD
$1,450.00 USD $870.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-75SP-HYD-206 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-75SP-HYD-206 — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming” — fitment, alternatives, or what else you need

FMC-75SP-HYD-206 hydraulic-driven centrifugal pump, 1" x 3/4" ports, self-priming. Flow rate up to 27 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 42237 Cap screw, 5/16"-18 x 1-3/8", hex head 10
2 20730 Washer, flat, 5/16", volute to bracket 10
3 GE-12SP-75 Volute, 1" x 3/4", polypropylene 1
4 41122 Plug, volute 2
5 40191 O-ring, plug 2
6 42240 Cap screw, 1/4"-28 x 1", hex, SS 1
7 30028 Washer, sealing 5
8 GE-26-75 Impeller, with keyway, polypropylene 1
9 42238 Cap screw, 5/16" NF x 2-1/2", SS 4
10 BAC-7-75V Seal, 5/8", carbon/ceramic/FKM 1
10 BAC-7SC-75V Seal, 5/8", silicon carbide/FKM (optional) 1
10A 40159 O-ring, seal seat 1
11 40014 O-ring, volute seal 1
12 GE-14-75SP Bracket, polypropylene 1
13 BAC-14-75-HYD Mounting frame (for 200R series motors) 1
14 42270 Nut, hex, 5/16"-18 10
15 BAC-54 Slinger 1
16 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
17 BAC-37 Bearing, BAC-6 driven shaft 2
18 BAC-32 Snap ring, external, BAC-6 driven shaft 2
19 BAC-32-S Spacer for BAC-6 shaft 1
20 41082 Key, 3/16" x 3/16" x 15/16" 1
21 BAC-6-75-HYD-SS Shaft, 5/8" driven shaft with tang slot, SS 1

Hydraulic Motor

Ref. Part No. Description Qty
22 S200 Seal support spacer for 200 series hydraulic lip seal 1
23 BAC-75-HYD-206R Hydraulic motor, 7 GPM (26.8 LPM) 1
24 41875 O-ring, #8 SAE fitting 2
25 BAC-78-8SAE Reverse check assembly, #8 SAE male x 1/2" FNPT 1
25B BAC-78-10X8SAE Reverse check assembly, #8 SAE male x #10 SAE 1
26 BAC-80-8SAE Body, restrictor orifice, #8 SAE male x 1/2" FNPT 1
27 41448 O-ring, orifice insert 1
28 BAC-79-7 Orifice, restrictor insert, .109 (206) 1
29 LS-206N Flow limiting valve (206), #8 SAE male x 1/2" FNPT 1
30 41259 Cap screw, 5/16" NC x 3-3/4" socket head (206), SS 4

Repair Kits

Kit No. Description
RK-FMC-75SP Repair Kit Assembly, FMC-75SP
RK-BAC-75-HYD-L Repair Kit Assembly, 200 Series Hydraulic Motor

Parts per Ace Pump Corporation product sheet FMC-75SP-HYD (1" NPT x 3/4" NPT self-priming). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

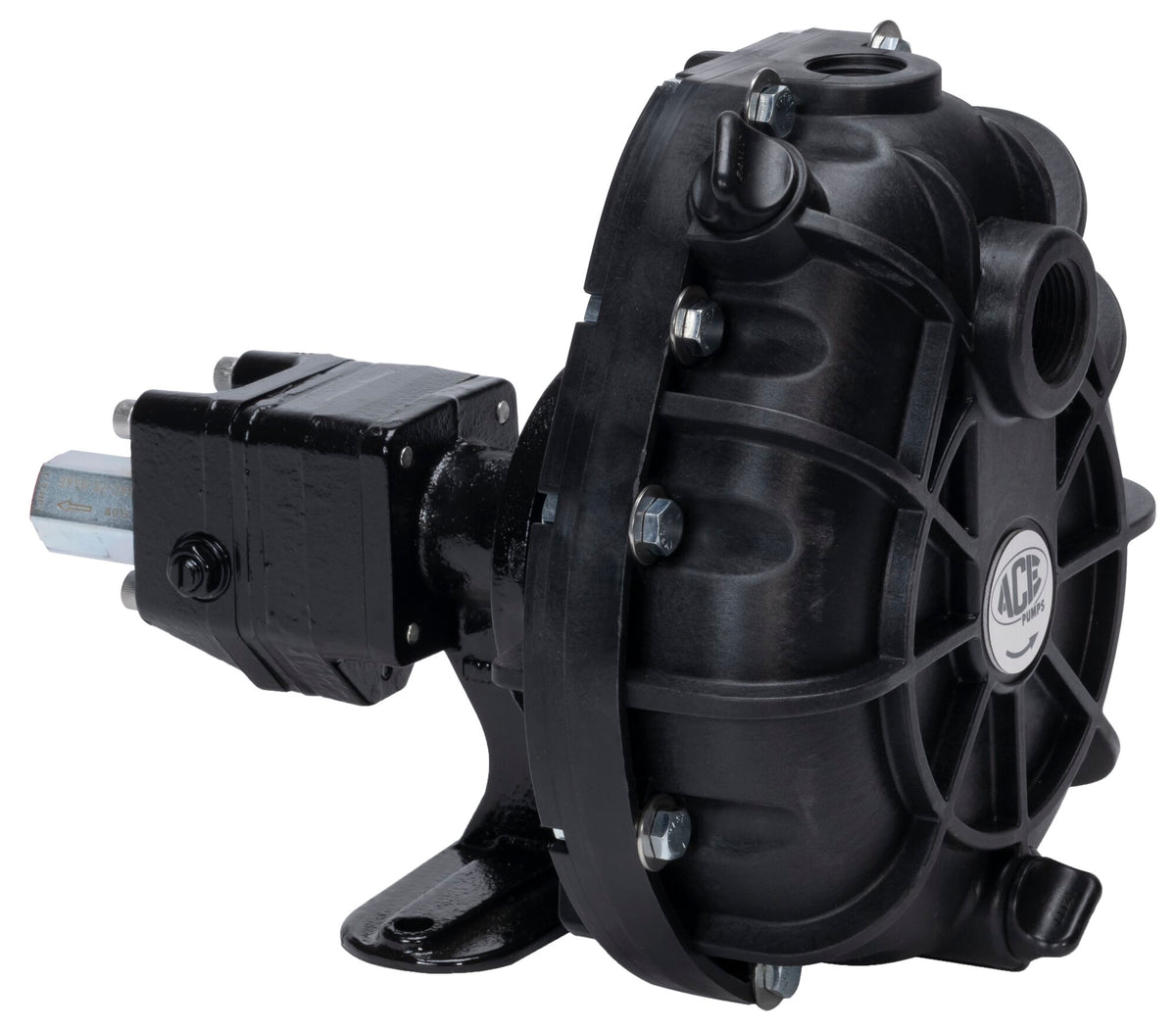

The photo shows the FMC-75SP-HYD. The FMC-75SP-HYD-206 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

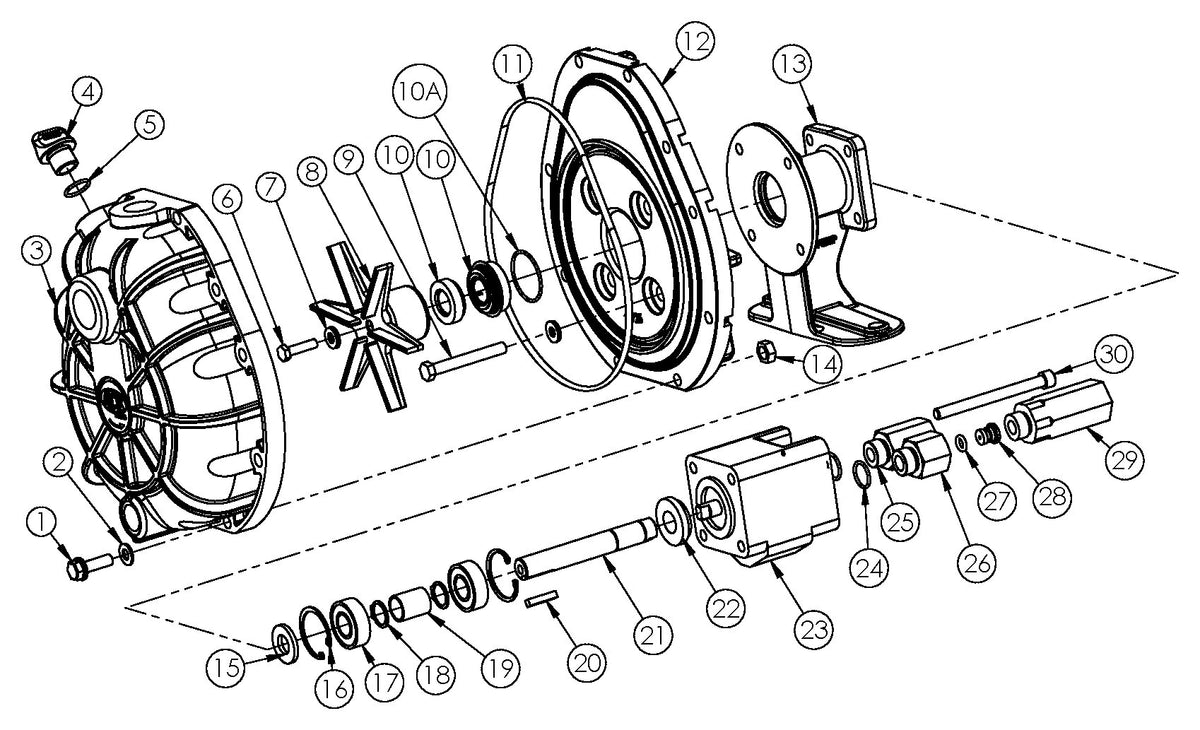

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
