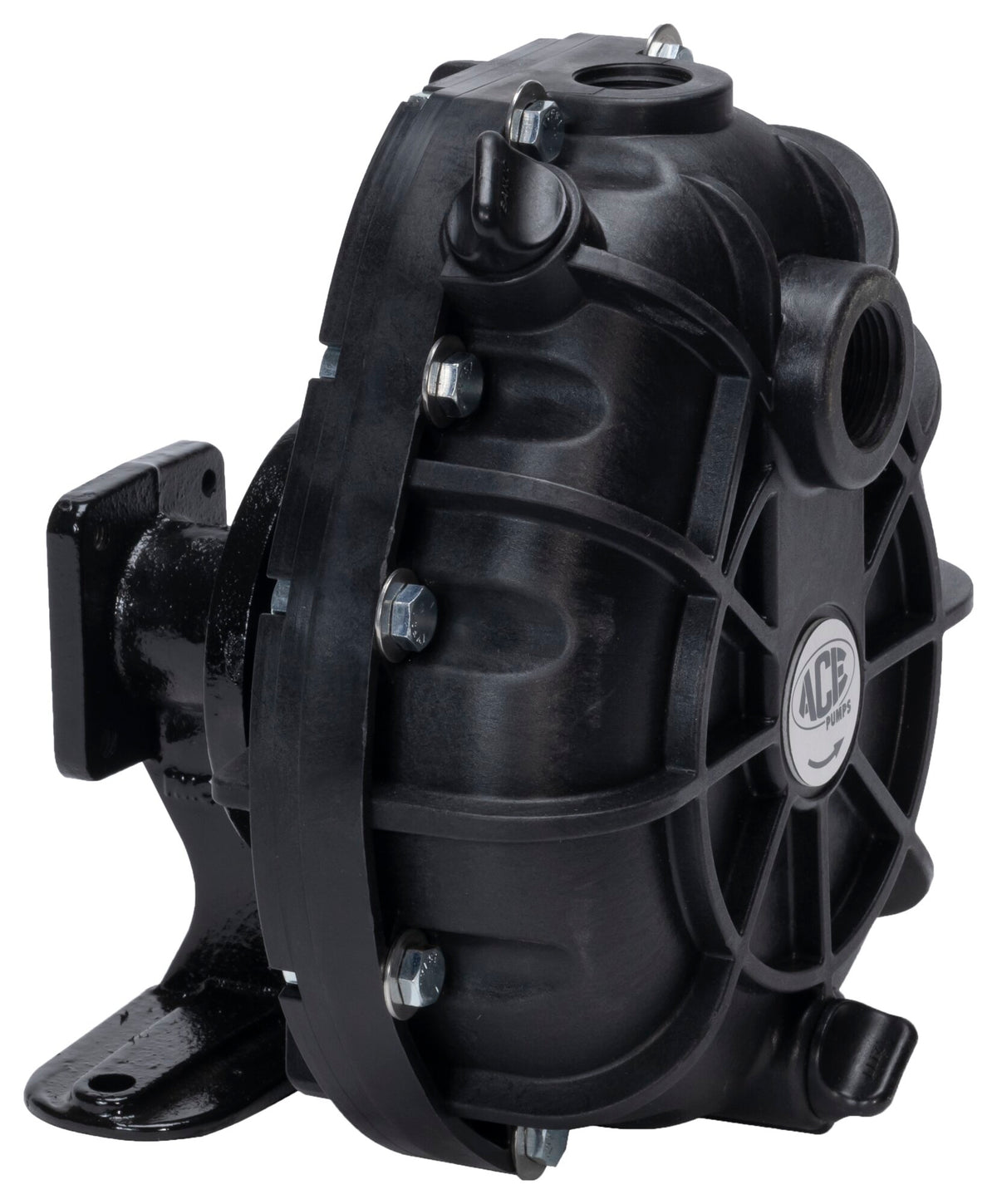

• Ace FMC-75SP-HYD-LM centrifugal pump
  • Ace FMC-75SP-HYD exploded parts view
1 2

Ace Pumps

FMC-75SP-HYD-LM — Pump Less Motor, Hydraulic Drive, 1" x 3/4", Poly

FMC-75SP-HYD-LM — Pump Less Motor, Hydraulic Drive, 1" x 3/4", Poly

$653.40 USD
$1,089.00 USD $653.40 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-75SP-HYD-LM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-75SP-HYD-LM — Pump Less Motor, Hydraulic Drive, 1" x 3/4", Poly” — fitment, alternatives, or what else you need

FMC-75SP-HYD-LM hydraulic-driven centrifugal pump, 1" x 3/4" ports, self-priming, sold less hydraulic motor. Flow rate up to 27 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 42237 Cap screw, 5/16"-18 x 1-3/8", hex head 10
2 20730 Washer, flat, 5/16", volute to bracket 10
3 GE-12SP-75 Volute, 1" x 3/4", polypropylene 1
4 41122 Plug, volute 2
5 40191 O-ring, plug 2
6 42240 Cap screw, 1/4"-28 x 1", hex, SS 1
7 30028 Washer, sealing 5
8 GE-26-75 Impeller, with keyway, polypropylene 1
9 42238 Cap screw, 5/16" NF x 2-1/2", SS 4
10 BAC-7-75V Seal, 5/8", carbon/ceramic/FKM 1
10 BAC-7SC-75V Seal, 5/8", silicon carbide/FKM (optional) 1
10A 40159 O-ring, seal seat 1
11 40014 O-ring, volute seal 1
12 GE-14-75SP Bracket, polypropylene 1
13 BAC-14-75-HYD Mounting frame (for 200R series motors) 1
14 42270 Nut, hex, 5/16"-18 10
15 BAC-54 Slinger 1
16 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
17 BAC-37 Bearing, BAC-6 driven shaft 2
18 BAC-32 Snap ring, external, BAC-6 driven shaft 2
19 BAC-32-S Spacer for BAC-6 shaft 1
20 41082 Key, 3/16" x 3/16" x 15/16" 1
21 BAC-6-75-HYD-SS Shaft, 5/8" driven shaft with tang slot, SS 1

Repair Kits

Kit No. Description
RK-FMC-75SP Repair Kit Assembly, FMC-75SP

This model is supplied less hydraulic motor; motor parts are not listed.

Parts per Ace Pump Corporation product sheet FMC-75SP-HYD (1" NPT x 3/4" NPT self-priming). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.

View full details
