    Ace Pumps

    FMC-CW-200

    FMC-CW-200

    $648.00 USD
    $1,080.00 USD $648.00 USD
    Sale
    Shipping calculated at checkout.
    Title

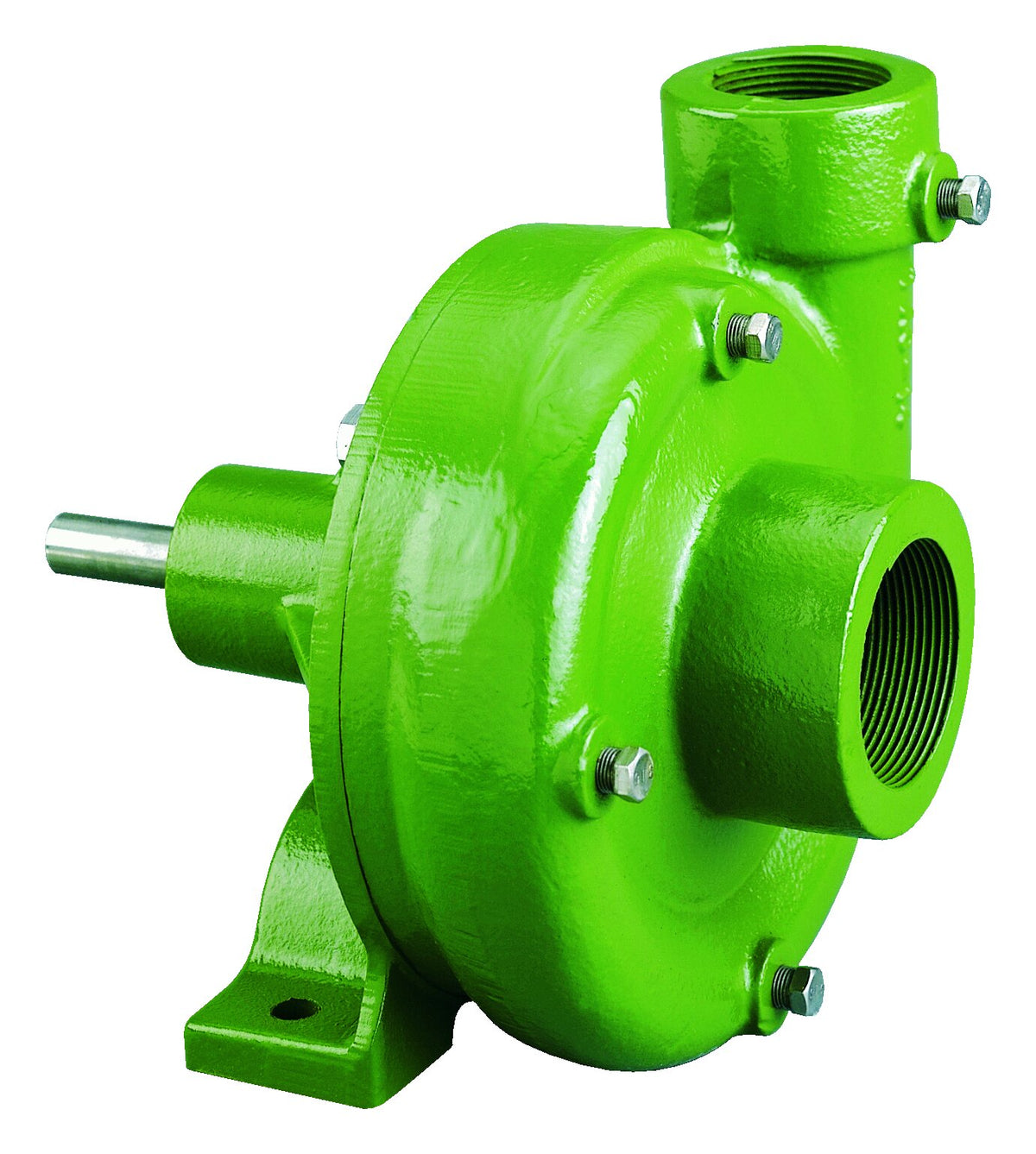

    The FMC-CW-200 is a Ace frame mounted centrifugal pump — cast iron volute, clockwise rotation, rated at capacity to 180 GPM and 100 psi.

    Specifications

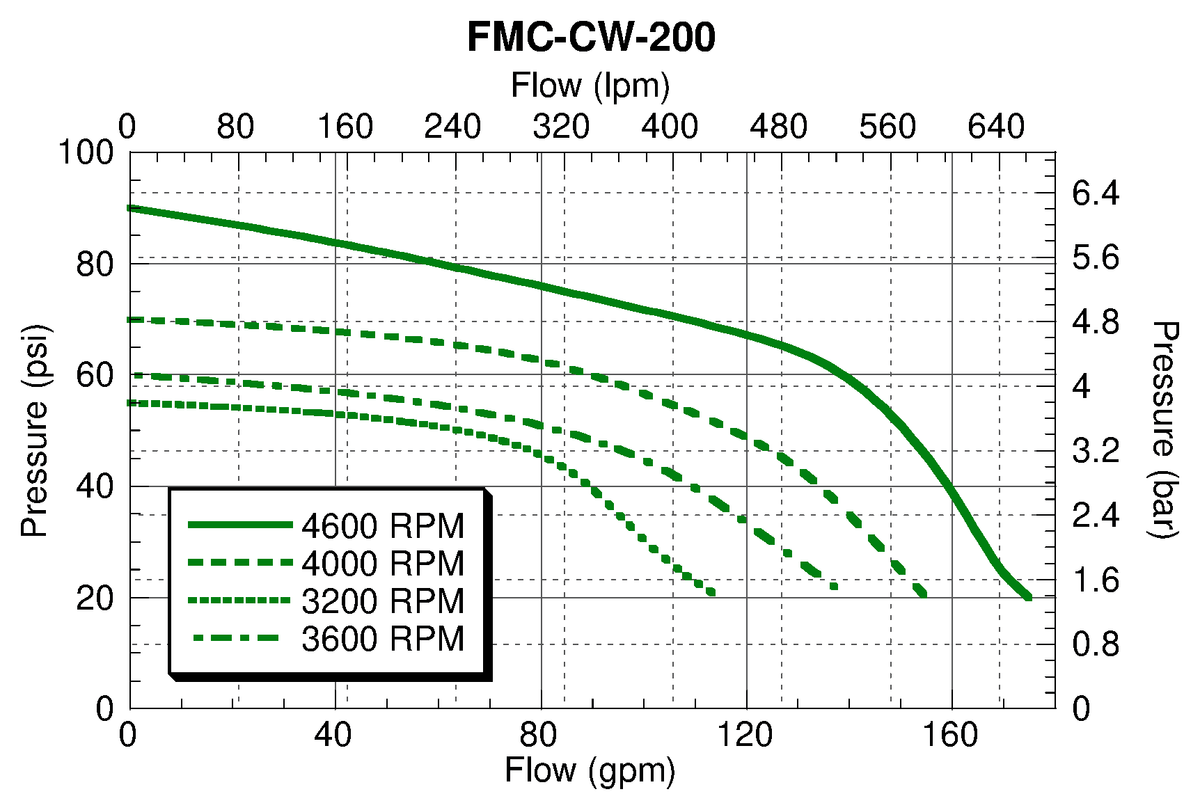

    Max flow Capacity to 180 GPM
    Max pressure 100 psi (6.9 bar)
    Suction 2"
    Discharge 1-1/2"
    Rotation Clockwise facing shaft end
    Impeller Chemical resistant Valox (cast iron optional)
    Shaft Stainless steel
    Seal Viton carbon/ceramic (standard)

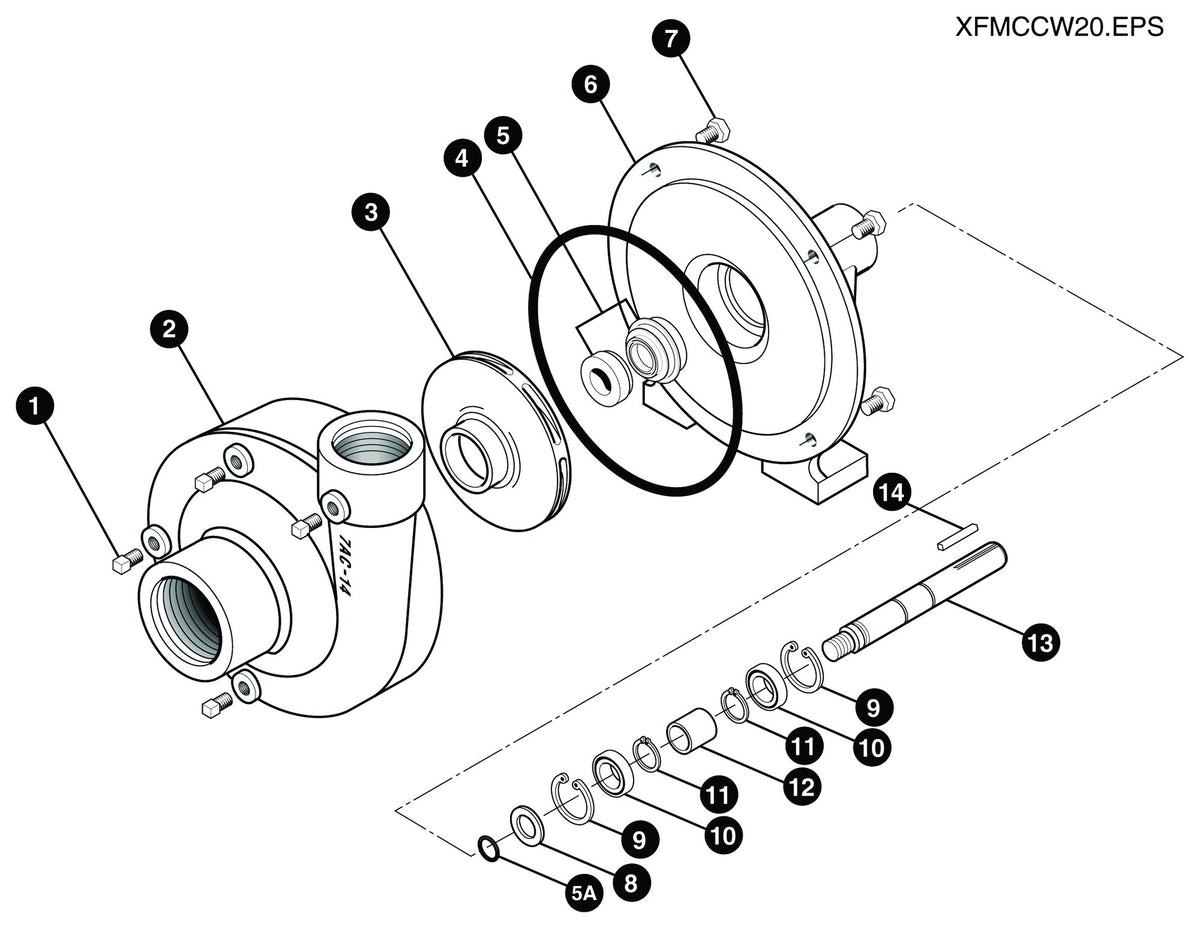

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug, 1/8" NPT 4
    1 41120 Pipe plug, 1/8" NPT, stainless steel (optional) 4
    2 7AC-14-4 Volute, 2" x 1-1/2", clockwise rotation, cast iron 1
    3 BAC-26-CW-200-P Impeller, 5-1/8" dia., right hand NF thread, thermoplastic 1
    3 BAC-26-CW-200-CI Impeller, 5-1/8" dia., right hand NF thread, cast iron (optional) 1
    4 BAC-4A O-ring for BAC-12 volute seal 1
    4 BAC-4 Gasket, 4 hole 1
    5 BAC-7V Seal, Viton mechanical seal 1
    5 BAC-7SC Seal, silicon carbide mechanical seal (optional) 1
    5A 40160 O-ring for BAC-6 shaft 1
    6 BAC-14-F Mounting frame 1
    7 40950 Cap screw, 3/8" NC x 3/4" hex head 4
    7 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
    8 BAC-54 Slinger 1
    9 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
    10 BAC-37 Bearing, BAC-6 driven shaft 2
    11 BAC-32 Snap ring, external, BAC-6 driven shaft 2
    12 BAC-32-S Spacer for BAC-6 shaft 1
    13 BAC-6-CW-SS Shaft, 5/8" driven, right hand NF thread, stainless steel 1
    14 BAC-50 Key, 3/16" x 3/16" x 1-1/4" 1

    Repair Kits

    Kit No. Description
    RK-FMC Repair kit, FMC series
    RK-FMCSC Repair kit, FMC series with silicon carbide seal

    Parts and specifications per Ace Pump Corporation product sheet FMC-CW-200 08-09.
